Mindray Zonare ZS3 Service Manual

ZS3 Service Manual
Page 37 of 295

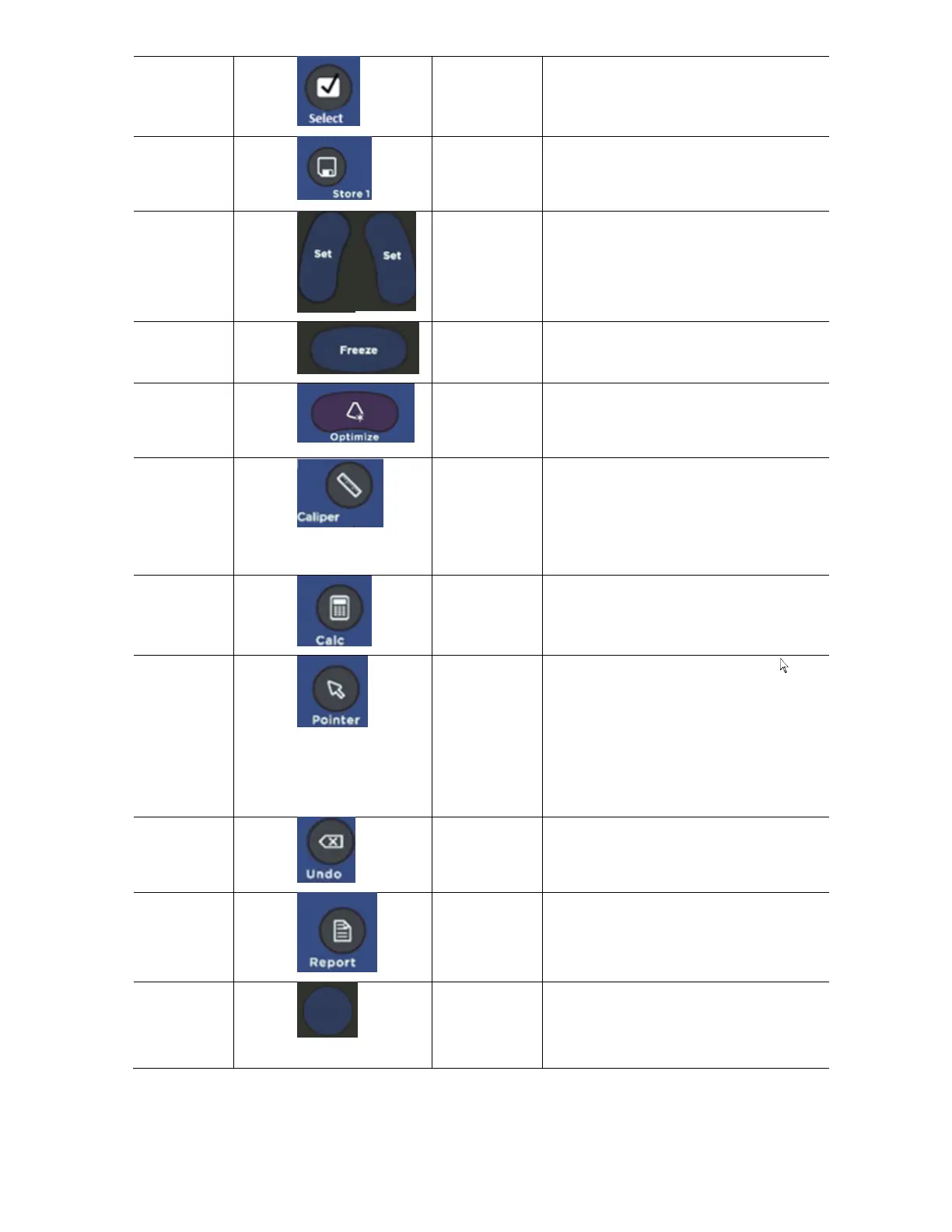

12.
Select
Toggles between active modes
such as dual pane and caliper
as well as image manipulation.
13.
Store1/2
Press to store the displayed
image to the storage device
(programmable).
14.
Set
Provides primary functionality
and navigation such as
selecting, calculation, setting,
moving, or editing etc.
15.
Freeze
Halts or re-starts active imaging
on the display.
16.
Optimize
Dual function: “ZST” Sound
Speed Correction and/or
“AutoOpt” (DGC).
17.
Caliper
Multi-function key: 1) Brings up
dynamic caliper (live) or Calc
menu (frozen) 2) Toggles on/off
the Auto-Dop Trace function, in
PW Doppler mode.
18.
Calc
Brings up the Calculations menu
page.
19.
Pointer
Brings up an arrow pointer
which is used to: 1. Operate the
menu. 2. Click on thumbnails. 3.
Click on soft mode switch
control. 4. Click on OLEDs to
page, 5. Click on System
ICONS.
20.
Undo
Removes the calculations
calipers and return to the Calc
menu.
21.
Report
Displays Report page from the
current exam.
22.
Trackball
Used for positioning the cursor,
defining size/position of ROI in
color mode, positioning
measurement tools, reviewing
