Mindray Zonare ZS3 Service Manual

ZS3 Service Manual
Page 46 of 295

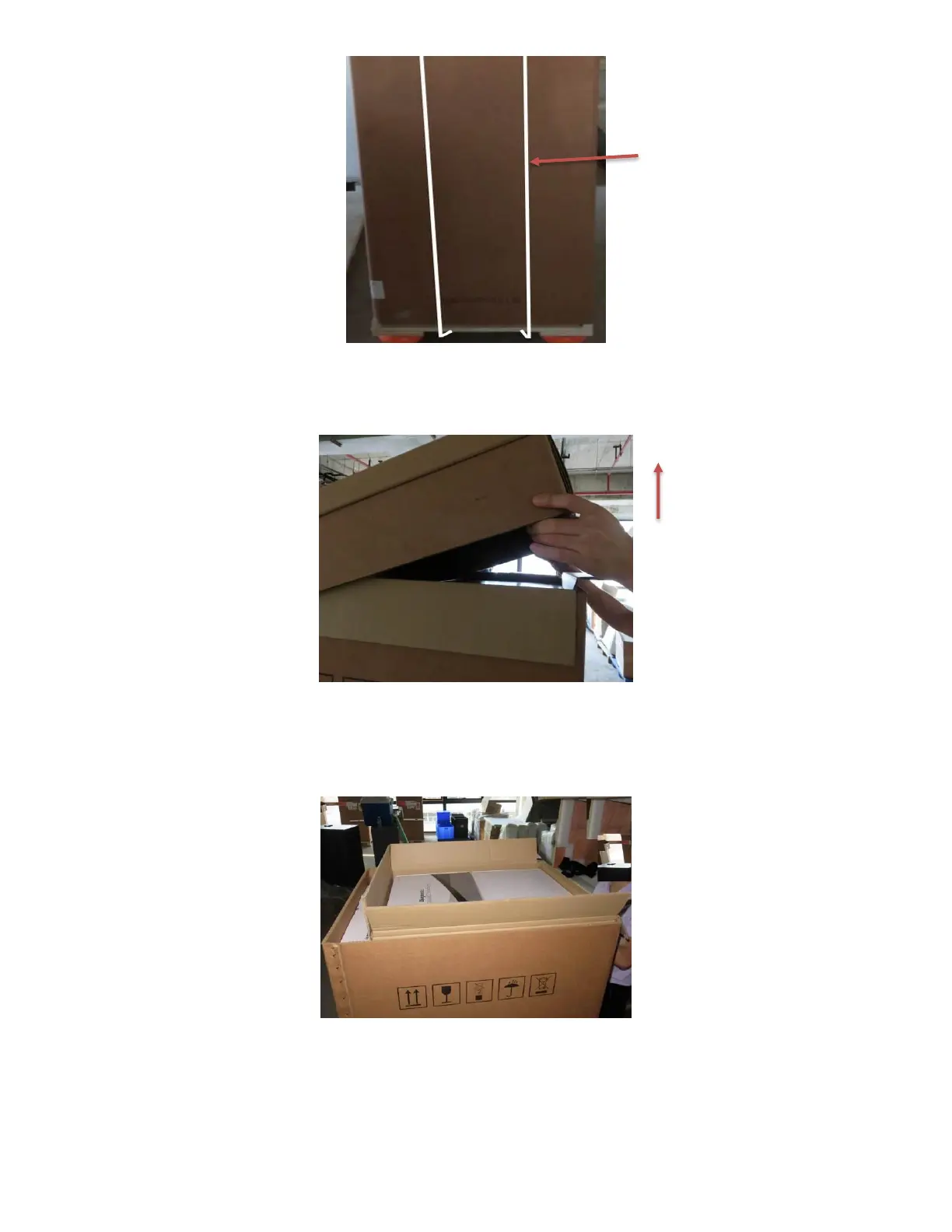

Figure 5.1-ZS3
5. Lift off the top cover portion of the main cardboard shipping container, and set
aside.
Figure 5.2-ZS3
6. Remove the small boxes containing the transducers (a maximum number of 4)
and the small box containing accessories from the inner storage box area
(resting atop the ZS3 System).
Figure 5.3-ZS3
Banding strap
