- Assign load cells, see Chapter 7.14.6.
- Recalibrate: Maximal load with weight unit, scale interval, dead load, CAL weight, see
Chapter 7.14.7.
- Perform a corner correction if necessary; see Chapter 7.14.10.3.
Note:
For further information about calibrating weighing points, see Chapter 7.12.3.
7.14.5 Searching load cells

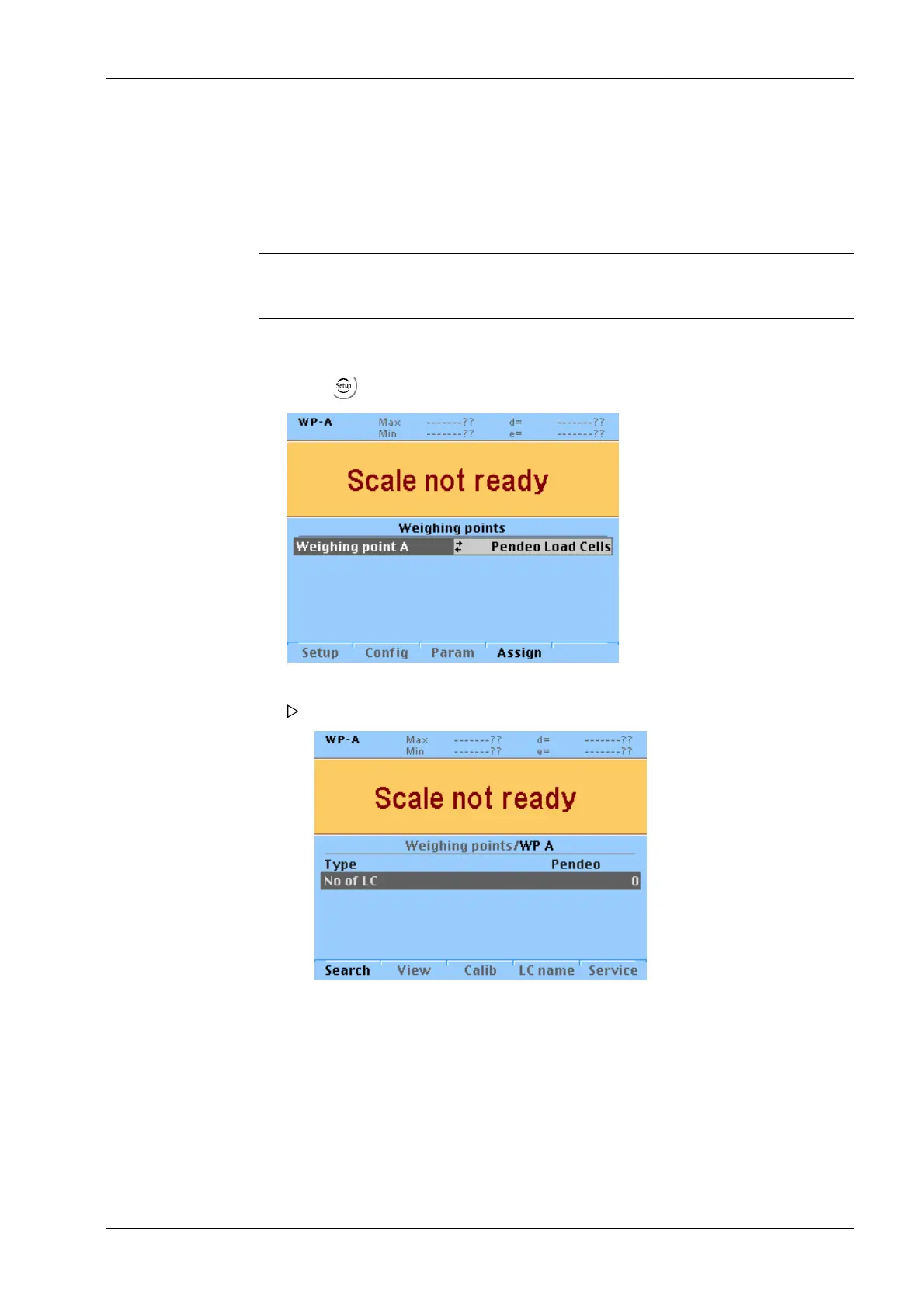

1. Select -[Weighing point]- [Weighing point A].
2. Press the [Assign] softkey.
The following window opens:
3. Press the [Search] softkey.
7 Commissioning Transmitter Series PR 5220
EN-113 Minebea Intec
