PR 5220/00 switch settings PR 5220/00 conguration
ON: S1, S3
OFF: S2
S4 not relevant
- [Serial ports parameter]- [xBPI-Port]- [Builtin RS-485]
Note:
For further information, see the installation manuals relating to the load cells and junction boxes.

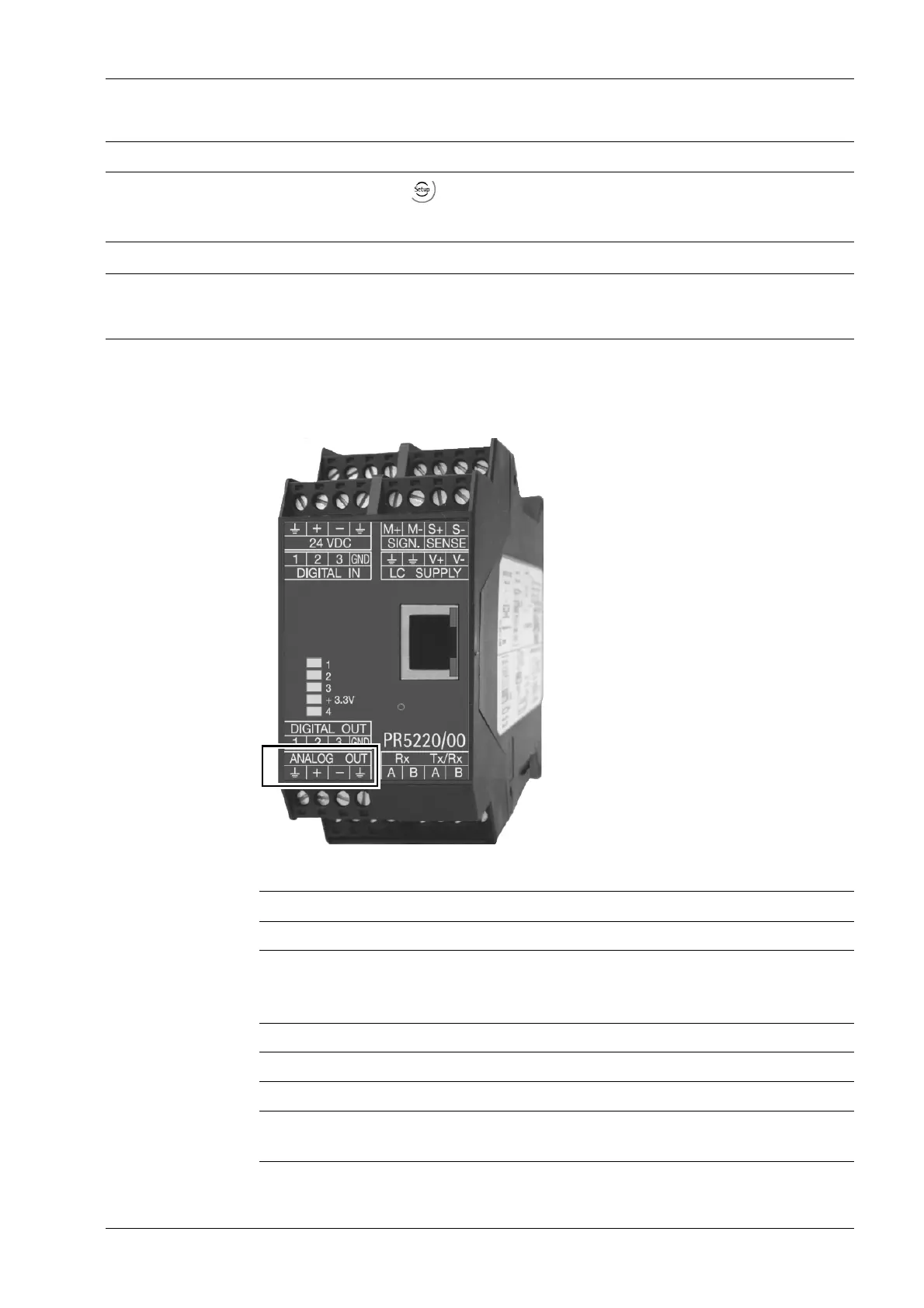

4.4.4 Analog outputs
The device is equipped with an integral analog output. The interface can be congured by
software.
Specications
Description Data
Connection Terminal, 4-pin
Output: Qty 1 active current output:
0/420 mA (max. 24 mA), 10 V output voltage via external
500  resistor
Output: Function Gross/net weight or via ProBus
Output: Range
0/420 mA, congurable
Output: Resolution
e.g. 020 mA in max. 40,000 parts
Output: Linearity error
@ 020 mA: <0.05%
@ 420 mA: <0.025%
4 Device installation Transmitter Series PR 5220
EN-33 Minebea Intec
