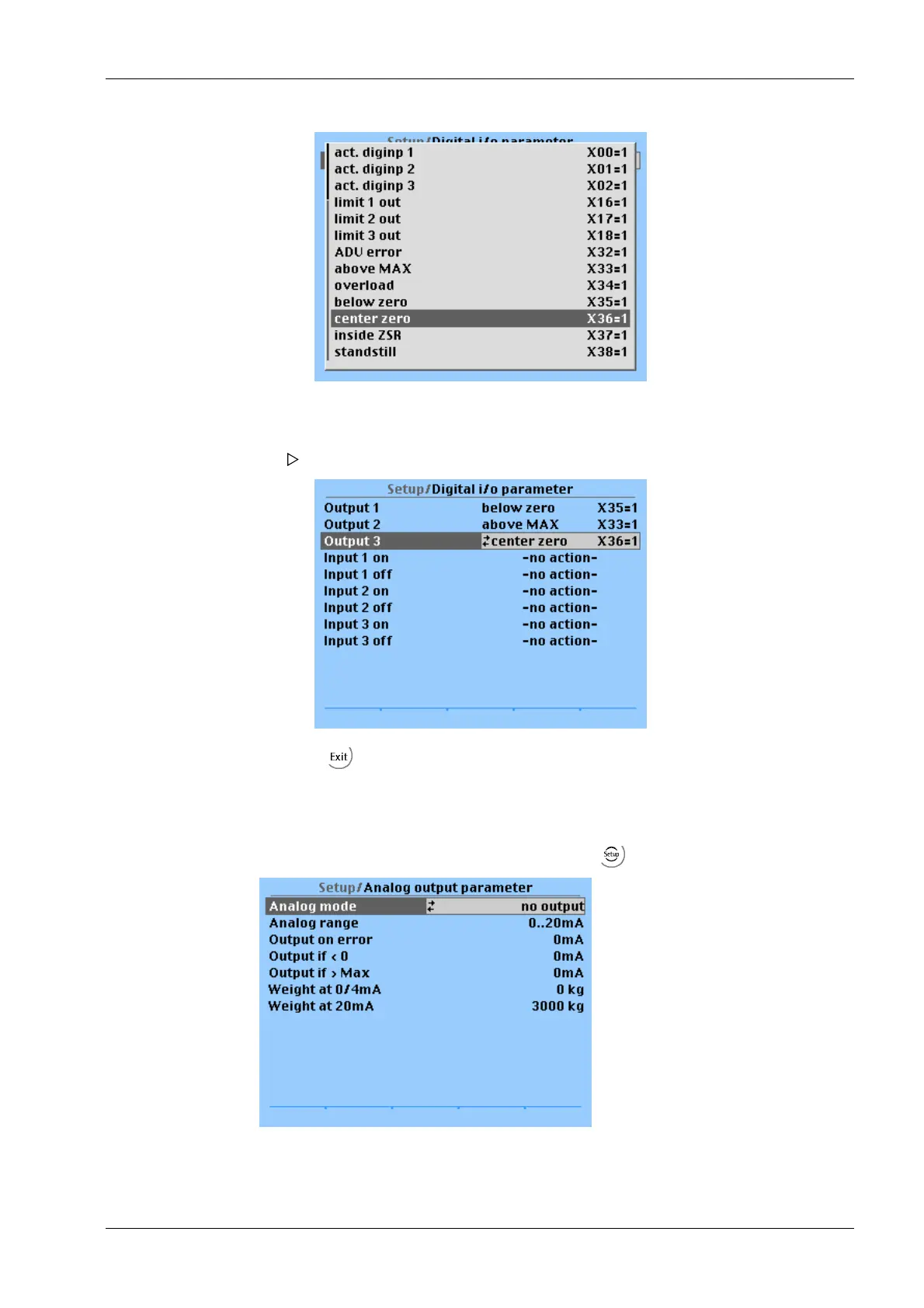

7.15.8 Conguring analog output
The weight value of the weighing point is transmitted to the output.
Dene the parameters for the analog output under -[Analog output parameter].
The analog output can be congured according to the table below.
Output 3 [Output 3] is true (active), when the weight is zero ±¼ d (X36=1).
6. Select [center zero] and conrm.
The menu opens.
7. Press to exit the menu and save.
