9 Extended functions
9.1 Hardware test
9.1.1 Serial interfaces
9.1.1.1 RS-485-interface
Open the menu with - [HW-Slots].
1. Plug the test connector (see Chapter 18.2) into the RS-485 interface.
2. Place the switch in the proper position, see Chapter 18.2.
3. Select and conrm the desired interface.
- passed = ok
- failed (no data) = error

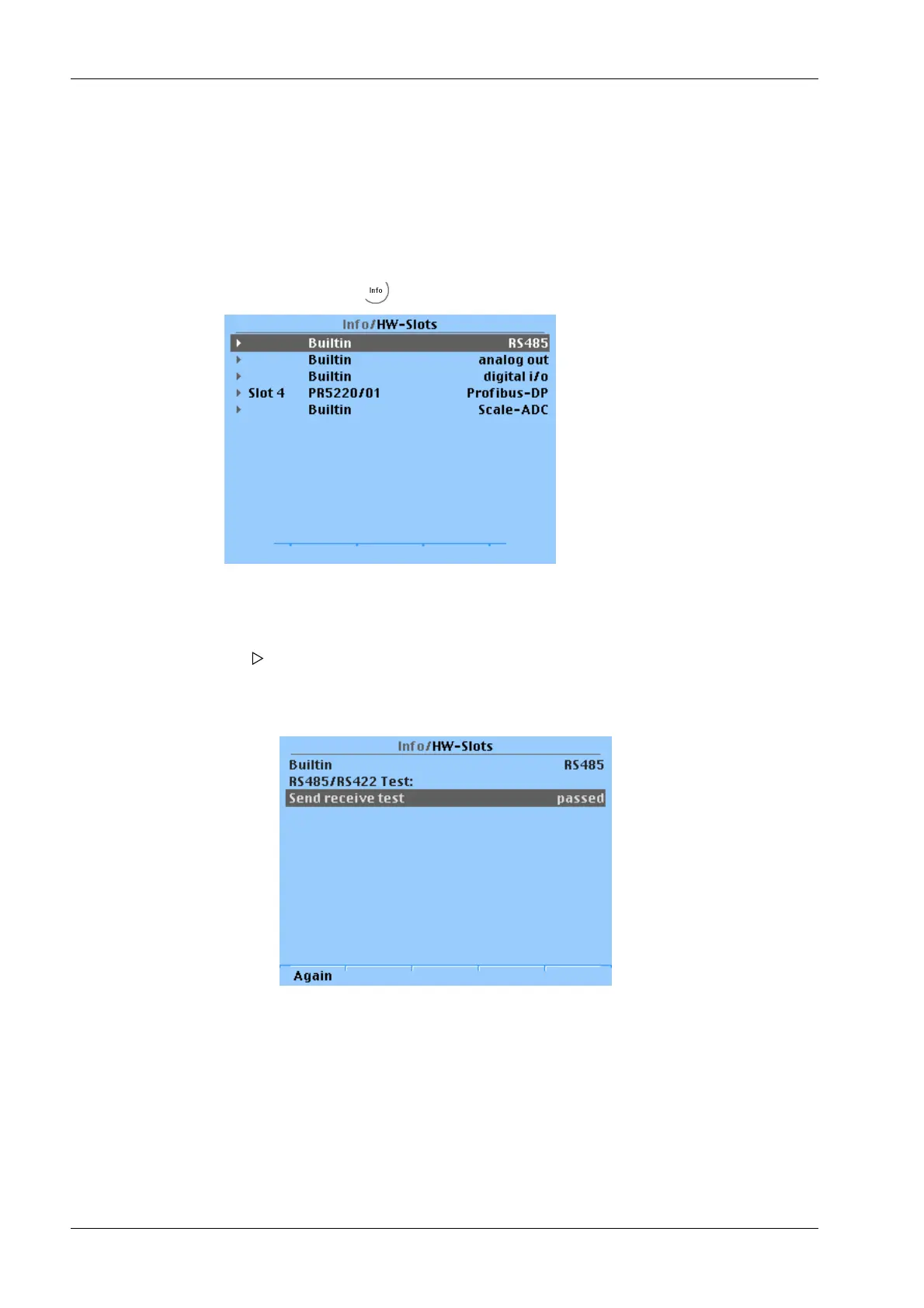

The results are displayed:
