The weight unit for the CAL weight may dier from the unit in the device. Conversion
is automatic.
Note:
Error messages, calibration see Chapter 16.5.
7.12.8 Calibrating with mV/V
The scale can be calibrated without weights. During input of the load cell mV/V value, the
acceleration of gravity at the place of installation can be taken into account.
The STAR load cell data is based on the acceleration of gravity in Hamburg, Germany:
9.81379 m/s
2
.
5. Press to select the weight unit.
6. Conrm entries with or .
Weight value, weight unit and measuring signal in mV/V corresponding to this
value are displayed in the line [Calibrated at].
The verication is displayed by "Setting Span by load…".
1. Calculating SPAN value for Max and, if necessary, for the dead see Chapter 7.12.8.1.

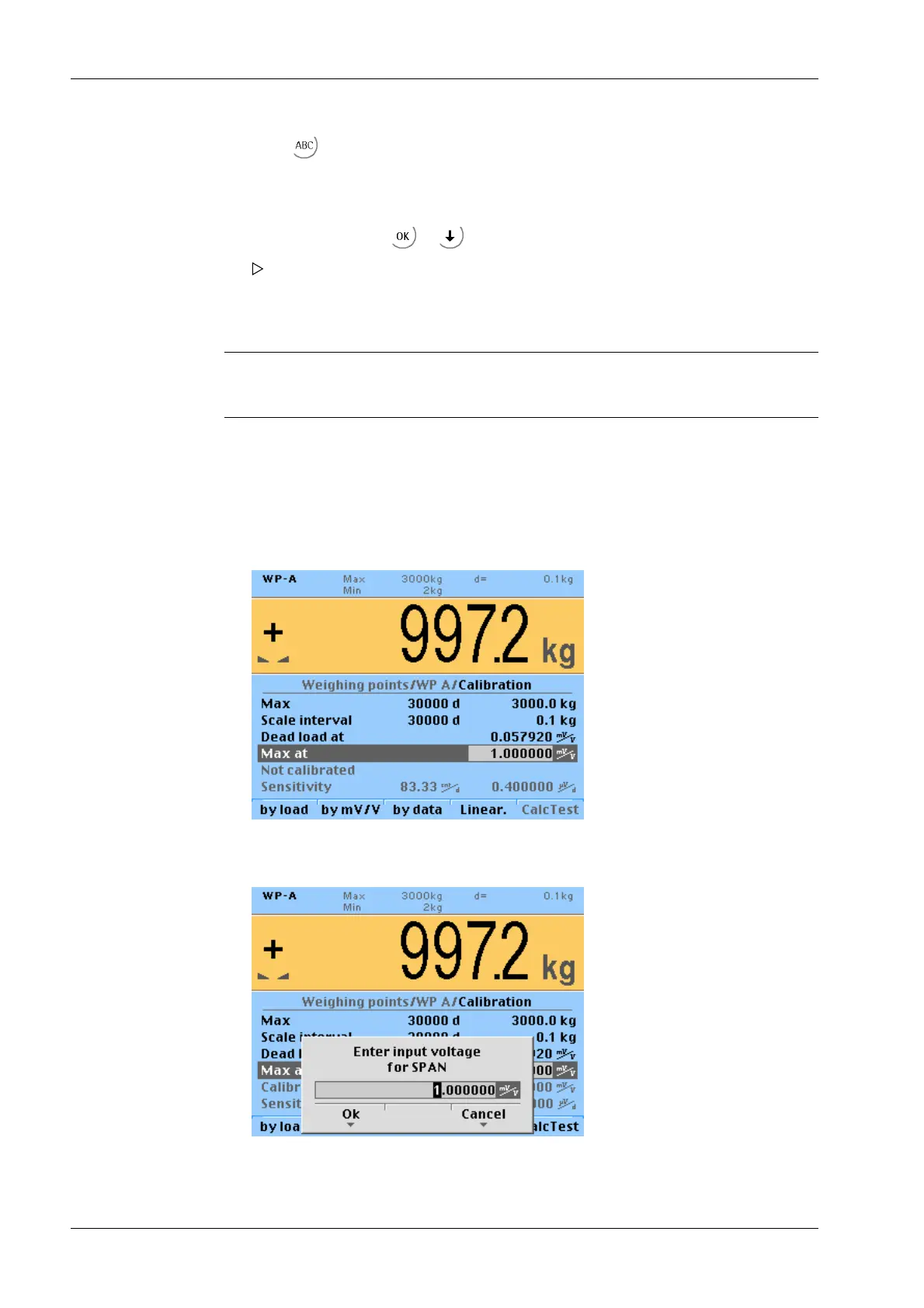

2. Press the [by mV/V] softkey.
3. Entering the SPAN value for Max and, if necessary, for the subsequent correction of
dead load (see Chapter 7.12.10).
Transmitter Series PR 5220 7 Commissioning
Minebea Intec EN-82
