Input: 0 and 1 (e.g.: 111; 100)

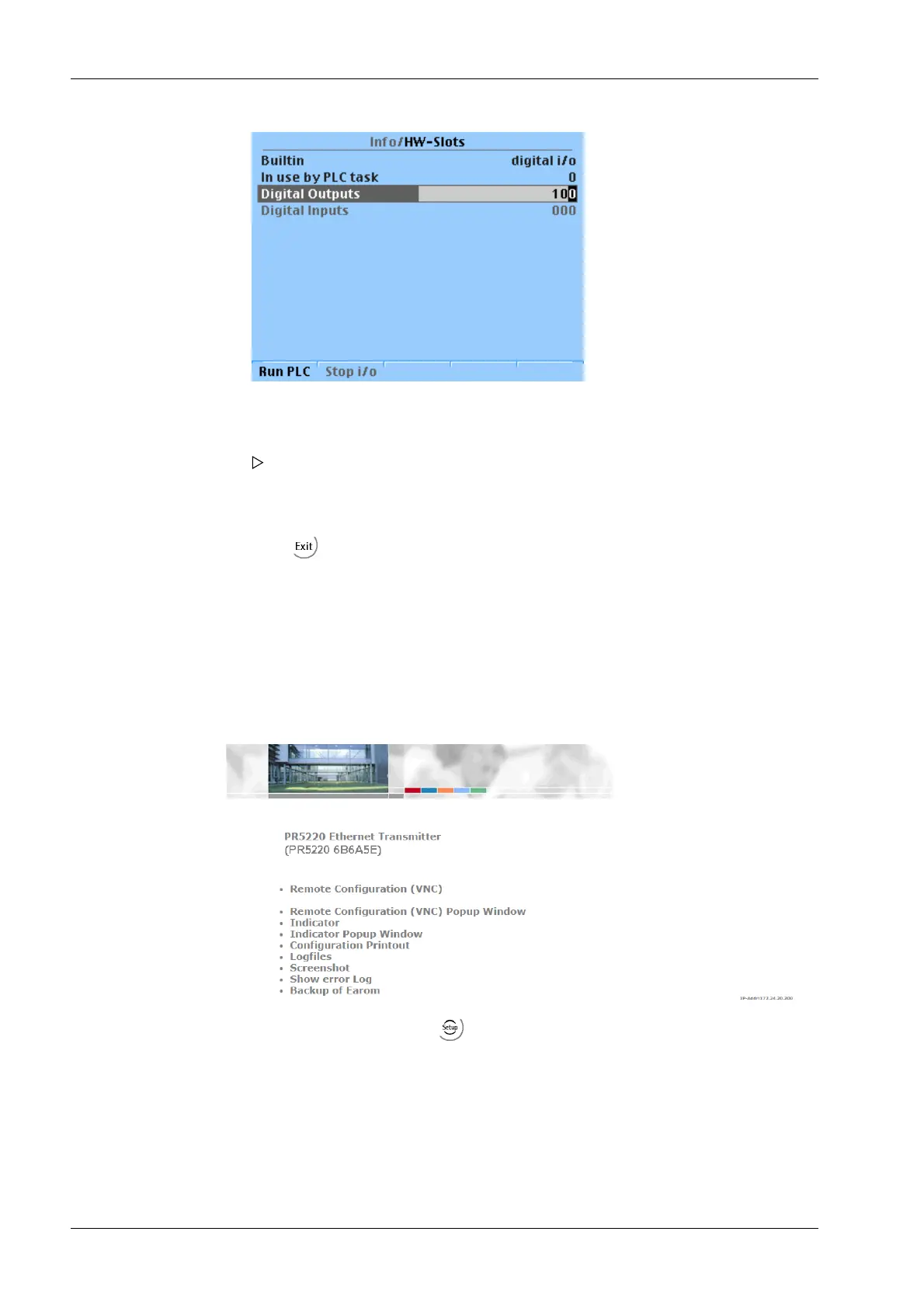

9.2 Functions via the WEB site
9.2.1 General information
If the device is connected to the network, it can be displayed e.g.in the "Windows"
operating system under "Network".
Double-click the device icon to open the WEB menu (in English only) in the available
Internet browser (see also Chapter 7.10).
The device name entered under -[Network parameter]- [Hostname] is shown under
the header in brackets.
[Remote Conguration (VNC)]
Operation using the VNC program, see Chapter 7.9.
[Remote Conguration (VNC) Pop-up Window]
Operation using the VNC program, see Chapter 7.9.
6. Enter the output values using the keyboard and conrm.
The physical inputs and outputs (hardware) are tested without the involvement of
the PLC (application) (see Chapter 9.1.2).
An info window is shown briey. The "External" test mode is active.
7. Press to return to the previous window.
Transmitter Series PR 5220 9 Extended functions
Minebea Intec EN-174
