Minebea Intec PR 5220 Series User Manual

4.4.3.3 Connecting digital load cells from type Pendeo®
The device can be ported to Pendeo® type digital load cells via the xBPI port and the
RS-485 interface (2-wire).
Connections
Color code Color Terminal designation Description
rd red + + Supply voltage
bu blue - - Supply voltage
gr green B B Signal
gy gray A A Signal

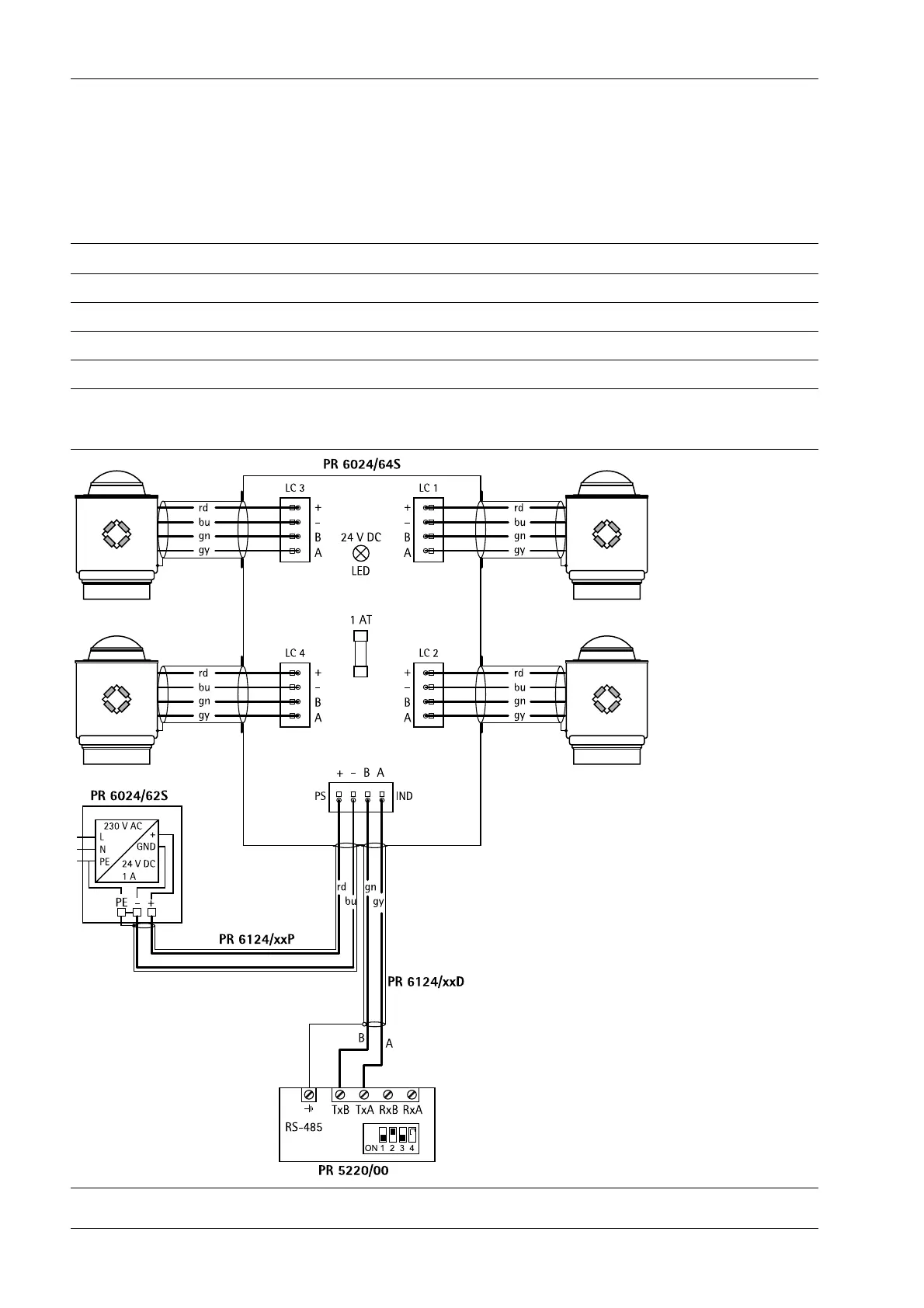

The following example shows the connection to the PR 6024/64S junction box using 4 digital load cells, type
Pendeo®.
Transmitter Series PR 5220 4 Device installation
Minebea Intec EN-32
