7.15.5.2 Dening an action
The possible actions are listed in the following table.
Selection list for the actions [Action]
Function SPM Bit Description
-no action- --- no function
set marker 1 X64 = 1 Set marker 1
set marker 2 X65 = 1 Set marker 2
set marker 3 X66 = 1 Set marker 3
clr marker 1 X64 = 0 Clear marker 1
clr marker 2 X65 = 0 Clear marker 2
clr marker 3 X66 = 0 Clear marker 3
Note:
The limit values can be assigned to the outputs directly in the I/O parameters.
Markers can be set for all limits (in this case, see Example 2):

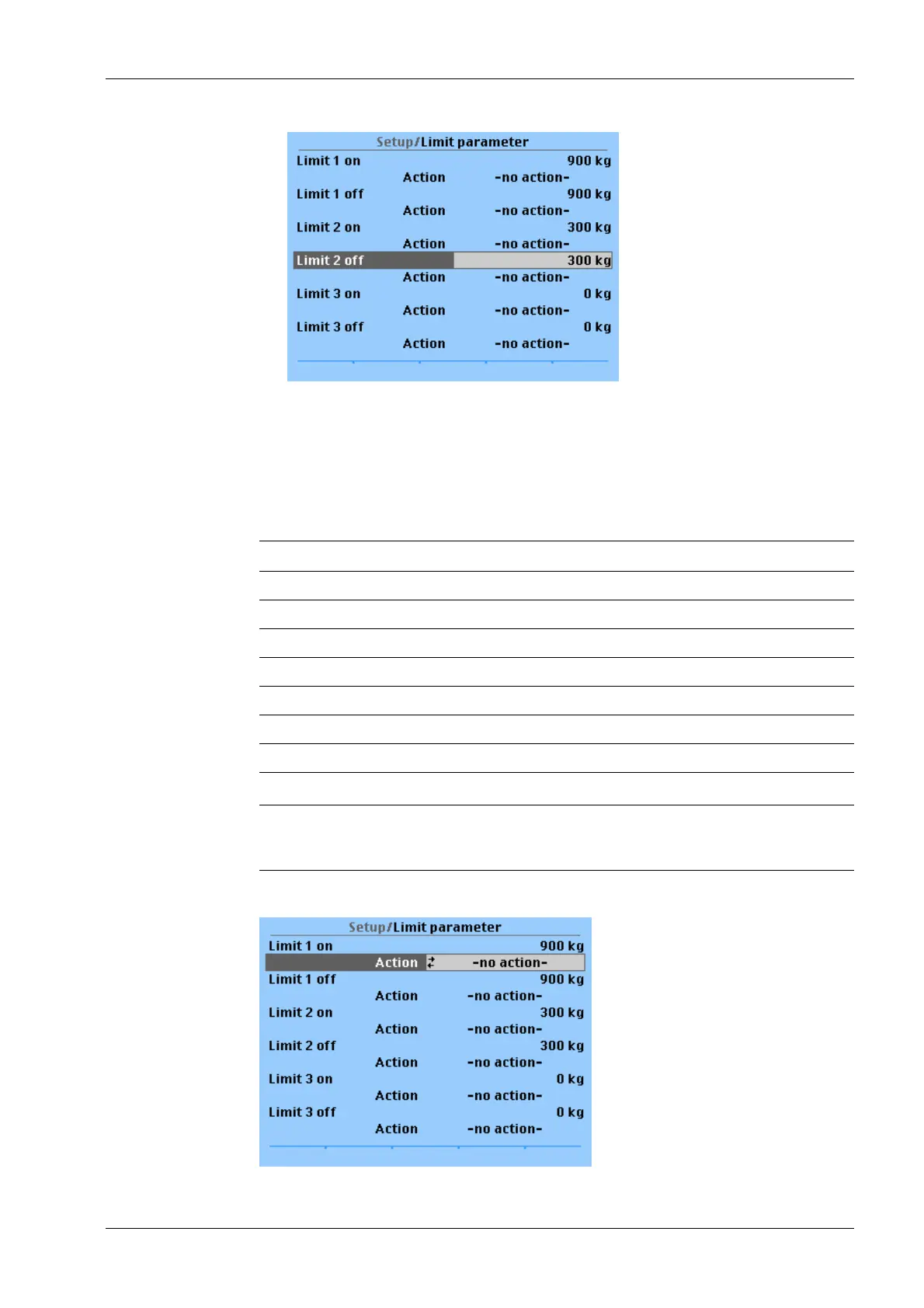

1. Select the appropriate lines.
2. Use the keypad to enter and conrm the desired values (in this case: see Example 2).
1. Highlight and conrm the action line of the appropriate limit using the cursor.
