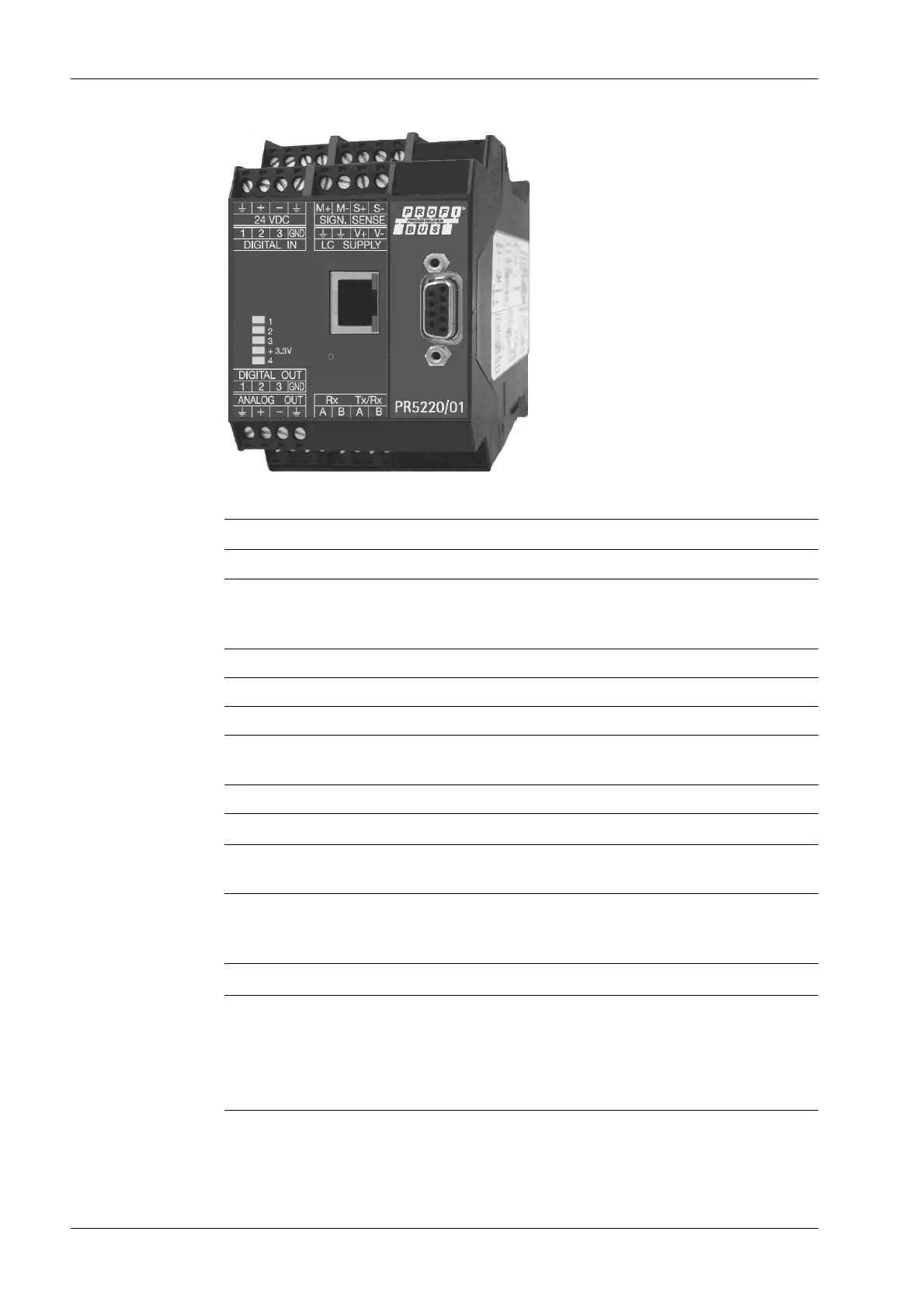

Minebea Intec PR 5220 Series User Manual

Specications
Description Data
Transmission rate
9.6 kbit/s12 Mbit/s, Auto Baudrate detection
Connection mode ProBus network,
connections can be made/released without aecting other
stations
Protocol PROFIBUS-DP-V0 SLAVE to IEC 61158
Conguration GSD le "SART5220.gsd"
Potential isolation Yes, optocoupler in lines A and B (RS-485)
Bus termination The bus termination in the last device is implemented via the
integrated terminating resistor in the ProBus plug.
Cable type Special ProBus color: violet; screened twisted pair cable
Cable impedance
150 
Cable length The max. distance of 200 m can be extended at 1.5 Mbit/s by
means of an additional repeater.
Certicates Probus test center Comdec in Germany and PNO (Probus
User Organization).
Industry-compatible CE, UL and cUL
Note:
The GSD le is stored on the CD supplied with the device (eldbus directory of the
respective device). The current le is also available for download via the Internet.
http://www.minebea-intec.com
Transmitter Series PR 5220 4 Device installation
Minebea Intec EN-48
