122
(3) How to check the execution status
• By displaying the "Check/Disable Executional Conditioned Device Test Registration" dialog box
• By the flash of the MODE LED in green
• By the on status of the first bit in SD840 (Debug function usage)
When checking by the MODE LED or SD840, remind that they are also used to check the execution status of the external
input/output forced on/off function. (
Page 269, Section 5.8)
(4) Registering executional conditioned device test settings
(a) Operation method
1. Open a dialog box to edit the program and select the step number to register.

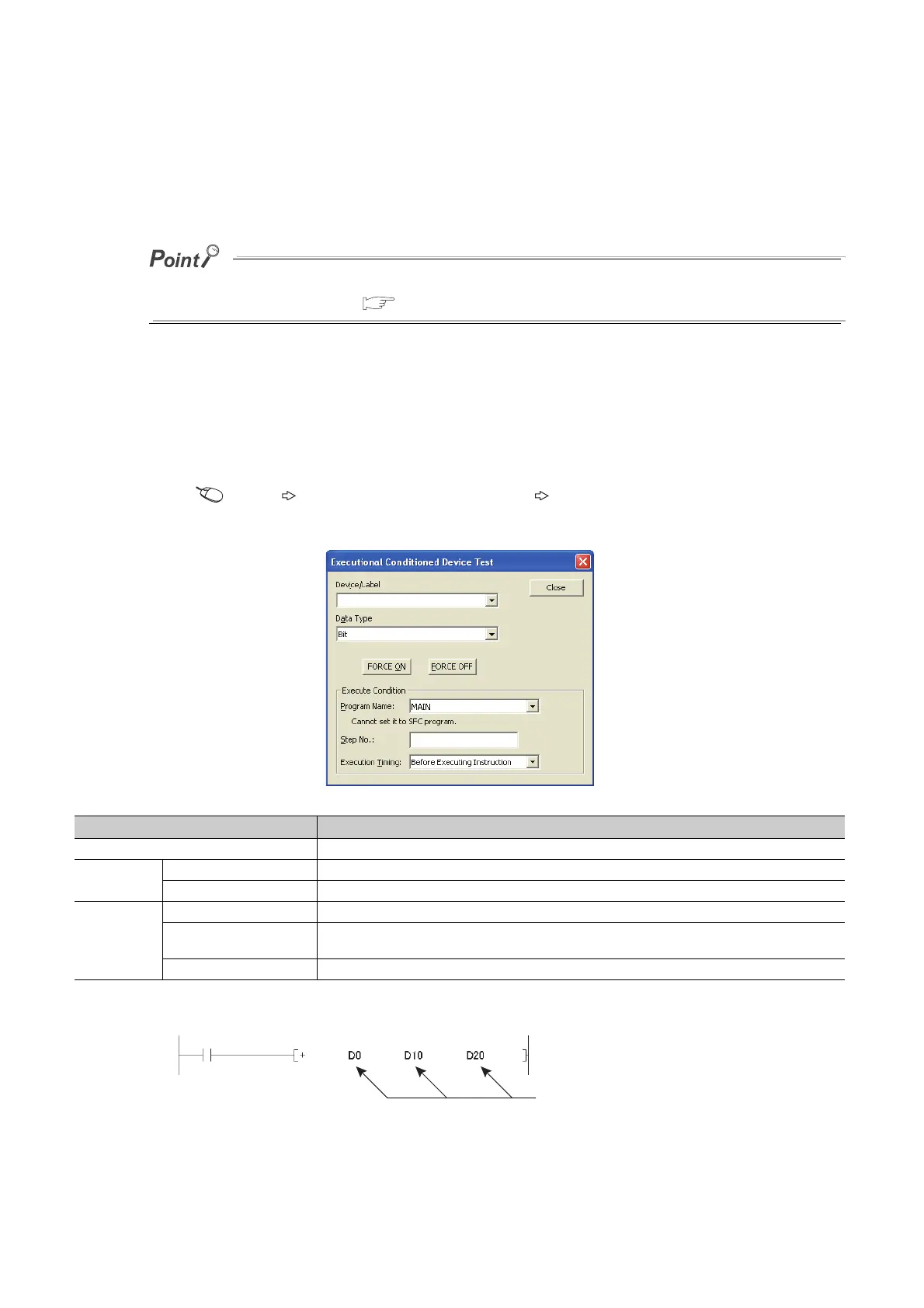

2. The setting can be set by "Executional Conditioned Device Test" dialog box.
[Debug] [Executional Conditioned Device Test] [Register Executional Conditioned Device
Test...]
Multiple executional conditioned device test settings can be registered for one step number.
However, if more than one executional conditioned device test settings are registered with the same device
name and the same execution timing for one step number, the set data are overwritten. (More than one setting
with the same device name can be registered for one step, if the execution timing differs.)
Item Description
Device/Label Target device or label is displayed. (Data entry is also available)
Data Type
For bit device Forced on/off operation is executed.
For word device Enter a value. (For a signed value, specify decimal or hexadecimal.)
Execute
Condition
Program Name Select the name of the program that is registered in the CPU module.
Step No.
Specify the step number (step number from 0 to END instruction) that exists in the program. (Specification of
a start step of the instruction.)
Execution Timing Select either "Before Executing Instruction" or "After Executing Instruction".
Devices that can register executional
conditioned device test for the start step
of the + instruction
To Next Page
