Mitsubishi L02CPU

193
CHAPTER 4 DISPLAY UNIT FUNCTIONS
4
4.2 CPU Monitor/Test 4.2.1 Device monitor/test

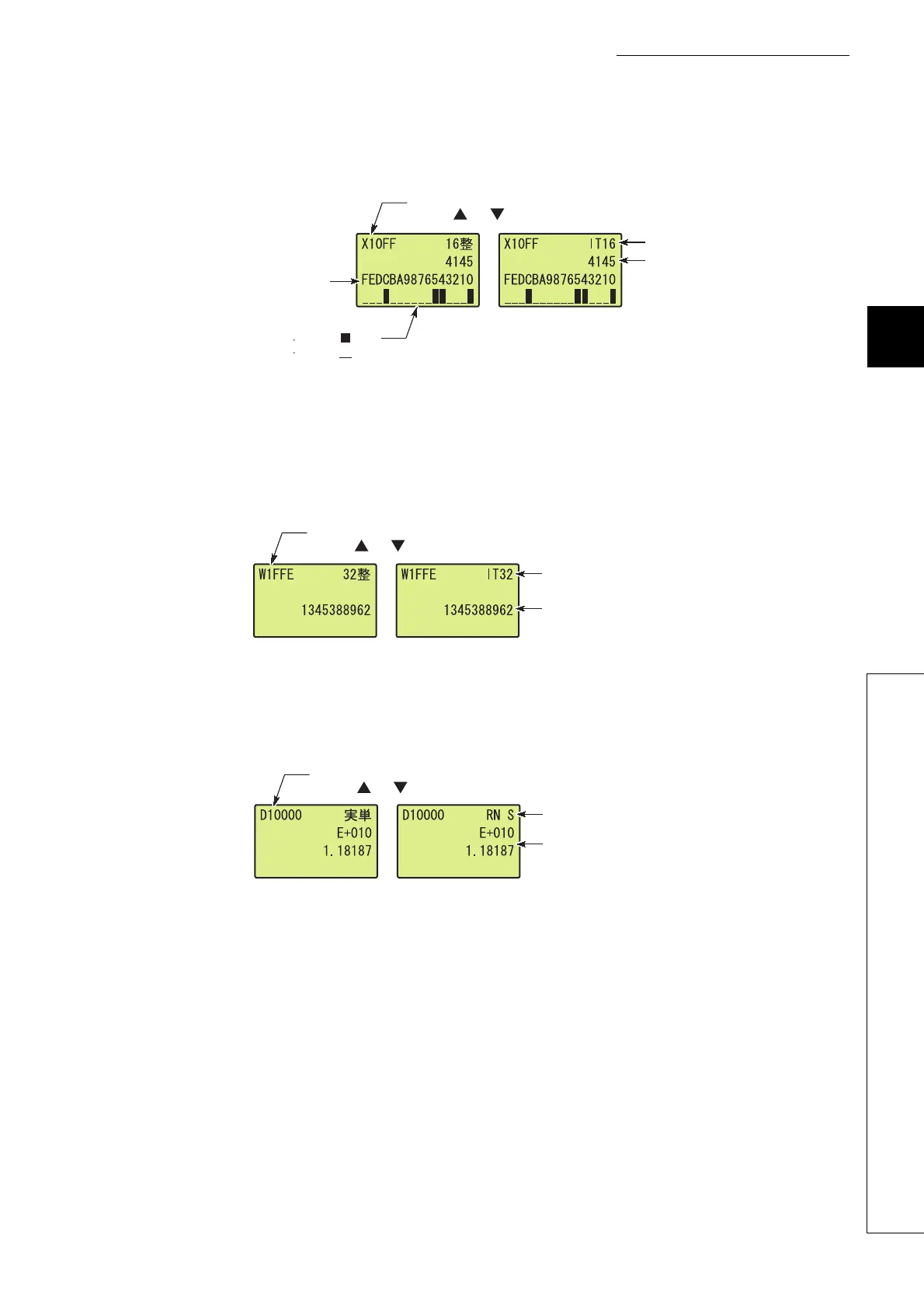

(c) Monitoring a bit device (display format: 32-bit integer)
*1
The specified device, and display format and a value of the specified device can be monitored.
*1 Even if the display format is set to 32-bit integer (decimal) or 32-bit integer (hexadecimal), a bit device value is displayed
in 16-bit integer (decimal) or 16-bit integer (hexadecimal).
(d) Monitoring a word device (display format: 32-bit integer)
The specified device, and display format and a value of the specified device can be monitored.
(e) Monitoring a real number (single precision)
*2
The specified device, and display format and a value of the specified device can be monitored.
*1 If the device value is "-0", unnormalized number, nonnumeric character, or ###, "********" is displayed.
*2 When a bit device is monitored, the device value is displayed in 16-bit integer (decimal).
The device number can be changed by 1 word (16 bits)
with the and buttons.
Display format
Device value
Bit position counted from
the specified device
On/off status of bits
ON :
OFF :
Display format
Device value
The device number can be changed by 1 word (16 bits)
with the and buttons.
Display format
Device value in exponent
*1
The device number can be changed by 1 word (16 bits)
with the and buttons.
