CHAPTER 4 DISPLAY UNIT FUNCTIONS
4
4.2 CPU Monitor/Test 4.2.5 Built-in I/O function monitor
(b) Operating procedure
Perform the following operation.

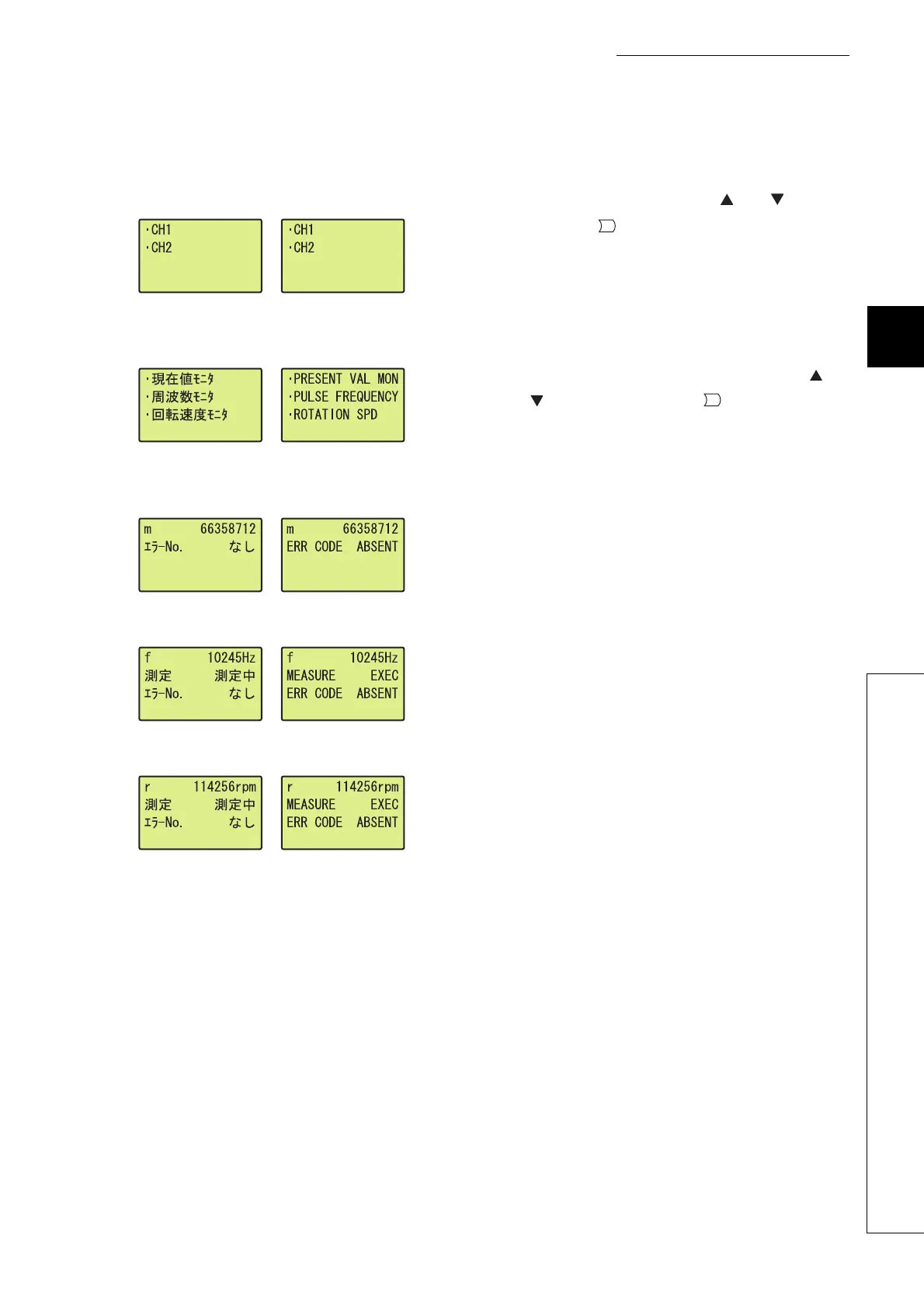

"High-speed counter function - monitor CH selection" screen
1. Select "CH1" or "CH2" using the and buttons
and press the button.
↓
"High-speed counter function - monitor target selection" screen
2. Select "PRESENT VAL MON", "PULSE
FREQUENCY", or "ROTATION SPD" using the
and buttons and press the button.
↓
"High-speed counter function - current value monitor" screen
"High-speed counter function - frequency monitor" screen
"High-speed counter function - rotation speed monitor" screen
3. The displayed items are shown.
