Troubleshooting
8-6 October 2019 16K PLUS
16k PLUS Control System - Continued
Sensor Troubleshooting - Continued
Pressure Sensor
The pressure sensor on the 16k PLUS measures the
squeeze pressure in the alignment arm cylinders. To
view what pressure the computer is reading, go to the
“Measure - Sensors” menu. The units of measurement
are pounds per square inch.
The Monitor may display a low or high pressure warning
if the pressure sensor malfunctions.
• To check the operation of the pressure sensor, watch
the pressure reading in the “Measure - Sensors”
menu as the alignment arm close. The pressure
should increase as the bales are being squeezed.
• Sensor failure: From time to time sensors will fail. If
you suspect this, rst test the wire harness for shorts
or broken wires. Otherwise, use a known working
sensor to test the operation of computer and harness.
See “Harness Schematics” for more information.
9

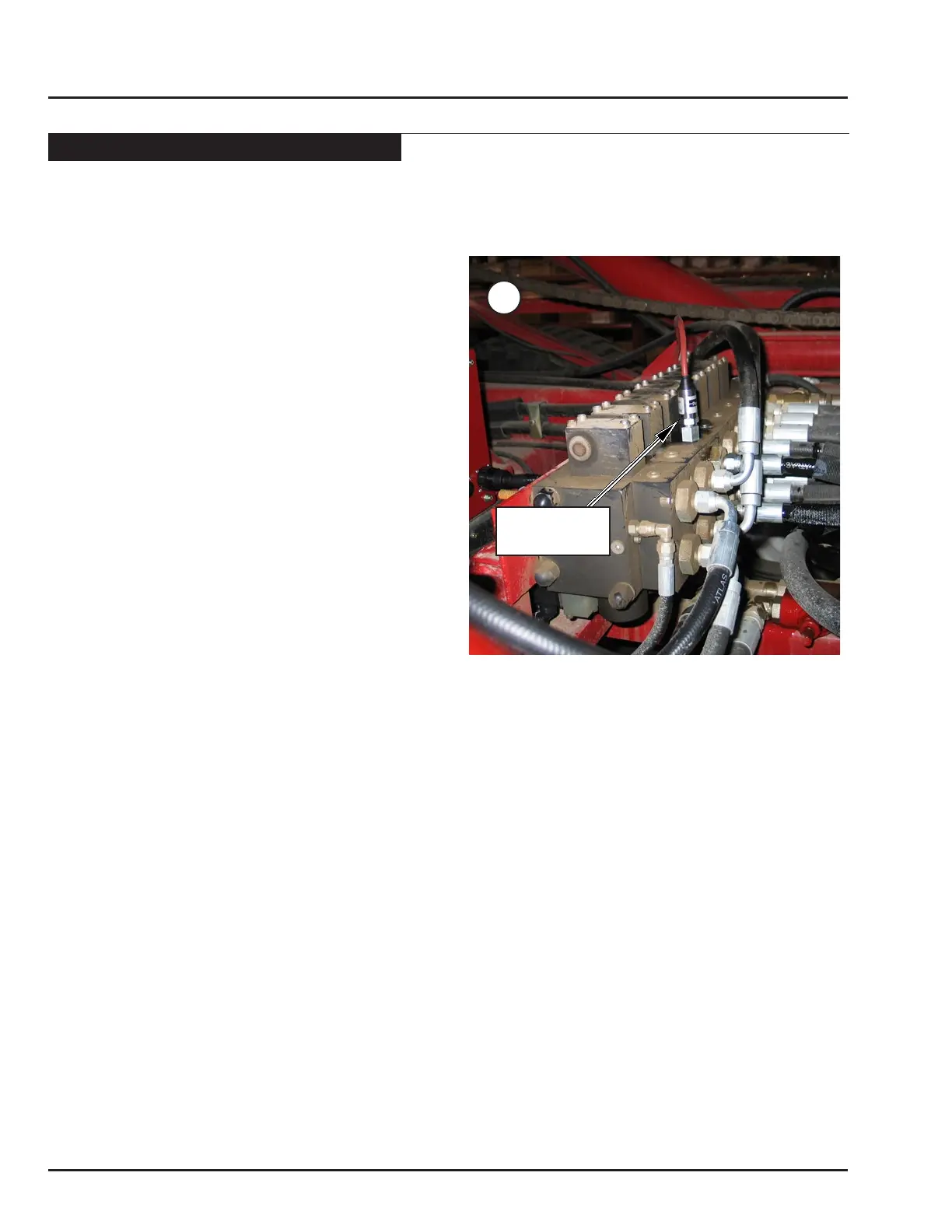

PRESSURE
