Morris PROAG 16K PLUS - Hydraulic System Configuration

Operation
5-6 October 2019 16K PLUS
1

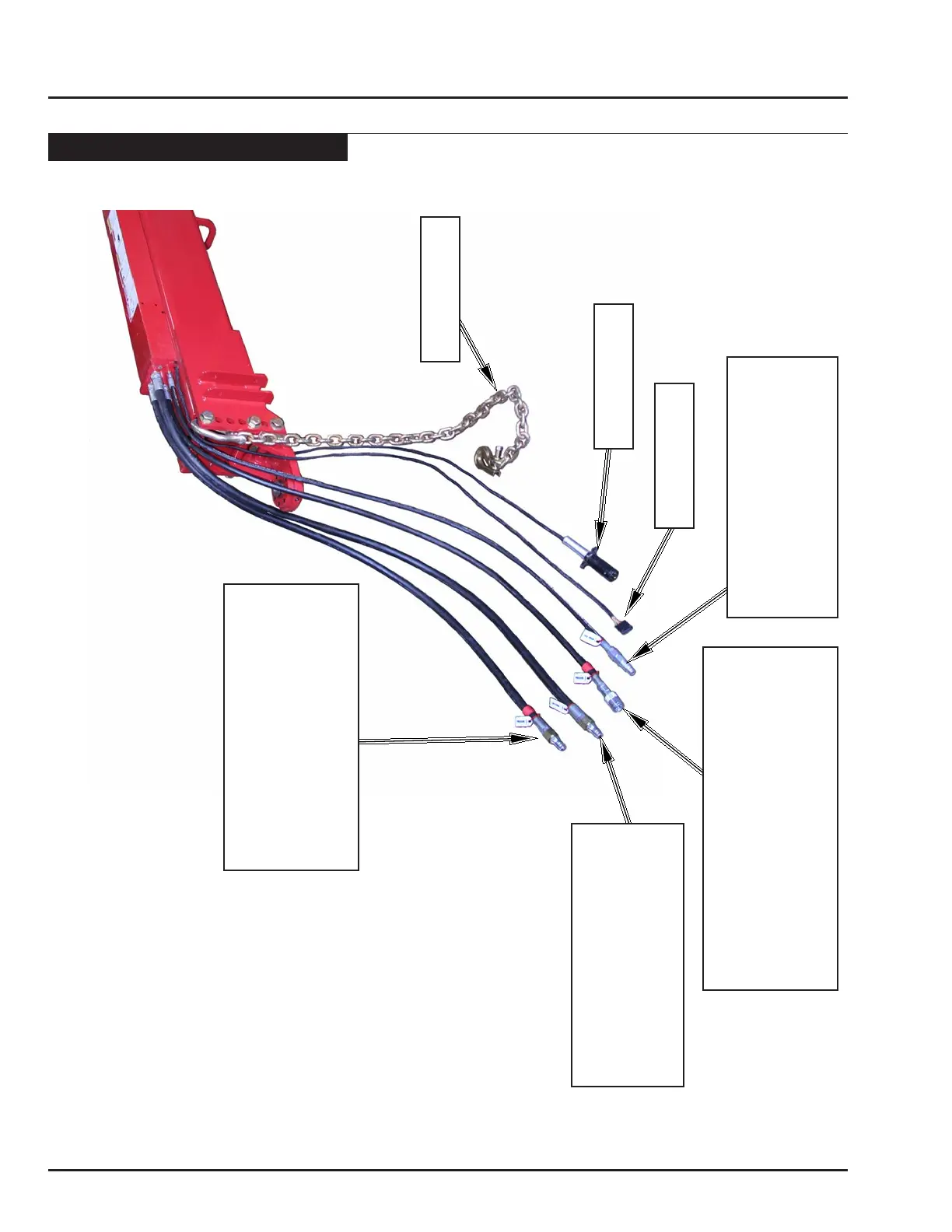

3/4” Pressure Line
1/2” Pioneer Male Connector
Red Heat Shrink
Must be hooked to pressure line.
2
3/4” Return Line
1/2” Pioneer Male Connector
Must be hooked to Return Line.
3
1/2” Load Sense Line
1/2” Pioneer Female Connector
Red Heat Shrink
Hooked to load sense for Power Beyond.
4
3/8” Pilot Drain Line
3/8” Flat Face Male Connector
Must be hooked to tank.
Recommended to connect to Power Beyond.
Monitor Harness
Light Harness
Safety Chain
Hydraulic System Conguration
Tractor Connection
Power Beyond (Closed Center - Load Sensing) - 1 to Pressure Line - 2 to Return Line - 3 connected to load sense. - 4 to hydraulic return tank. Closed Center Hydraulic System - 1 to Pressure coupler - 2 to Return coupler - 3 Capped off (Not in use) - 4 to hydraulic return tank. Open Center Hydraulic System - 1 to Pressure coupler - 2 to Return coupler - 3 Capped off (Not in use) - 4 to hydraulic return tank.
