9-40 October 2019 16K PLUS
Item Part No. Description Qty
1 K45407 Solenoid Harness (Not as illustrated) ................................................................................ 1
2 11505 Ferrous Metal Sensor ........................................................................................................ 9
3 K47327 Power Slide Position Sensor ............................................................................................. 1
4 K47328 Controller (Not as illustrated) ............................................................................................ 1
K45406 Controller Harness (Not Shown) ....................................................................................... 1
K45802 Controller Mount Plate (Not as illustrated) ....................................................................... 1
5 11695 Hawe Valve ........................................................................................................................ 1
6 K47321 16K PLUS Monitor Assembly ............................................................................................ 1
K47318 Monitor Display Box
K45430 Communication Harness (Not Shown)
7 K45426 Power Harness - Included in Monitor Assembly ................................................................ 1
8 K44708 Multifunction Grip/Cable .................................................................................................... 1
9 K47019 Control Cable - Hitch (Not as illustrated) ........................................................................... 1
10 K47326 Arms In Pressure Sensor .................................................................................................. 1
K47330 Connector - 9/16-18 FORB x 7/16-20 MORB .................................................................... 1
11 K47313 3 Amp Fuse - Fast Acting .................................................................................................. 1
12 K47314 20 Amp Fuse - Fast Acting ................................................................................................ 1
13 11890 Switch ............................................................................................................................... 1
14 K45408 Sensor Harness (Not as illustrated) .................................................................................. 1
15 K45647 Kit - Mounting System - PROAG Control Box .................................................................... 1
K45686 Mounting Arm .................................................................................................................... 1
K45687 Mount Base ....................................................................................................................... 1
K45685 U-Bolt Base Mount (Not Shown) ....................................................................................... 2

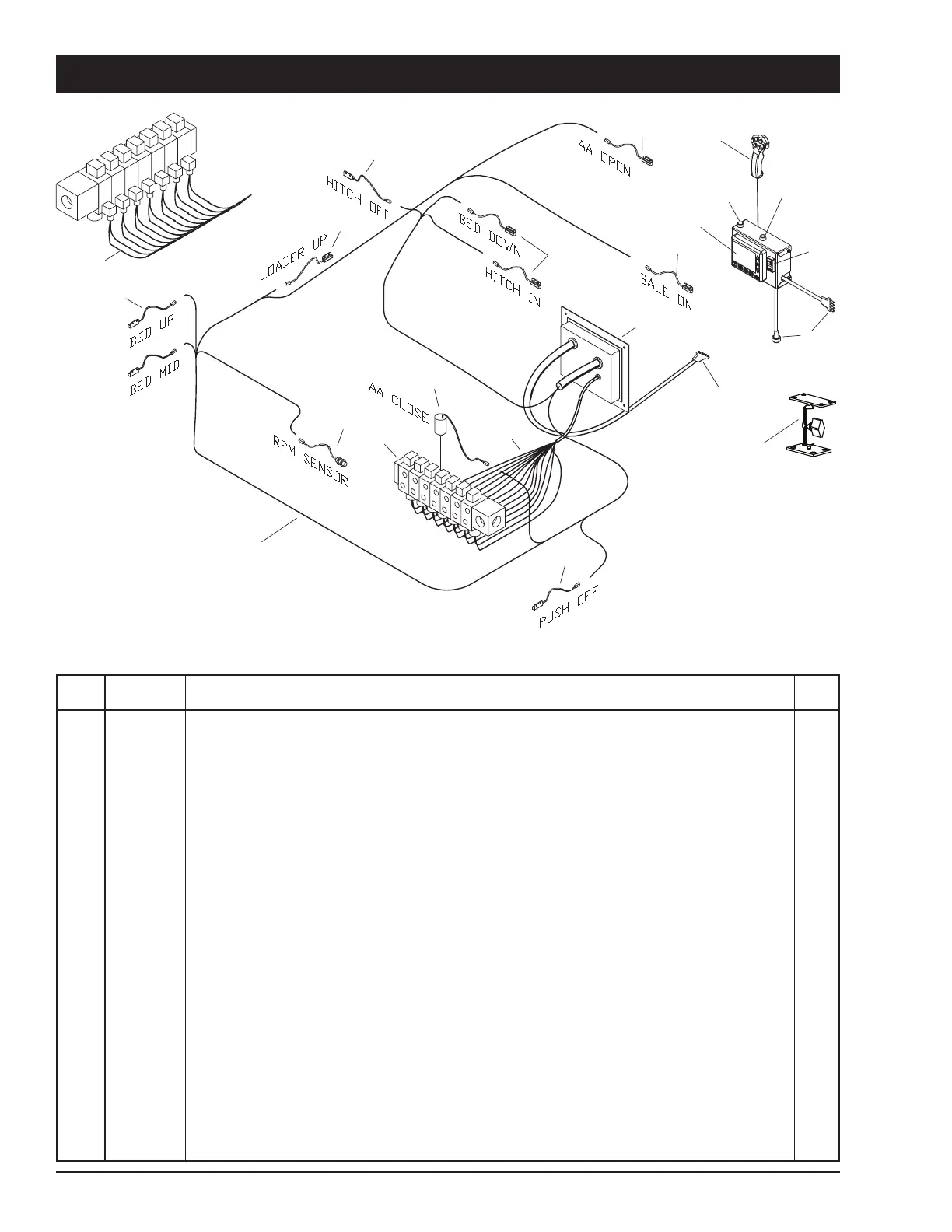

Electrical Control Assembly
2
2
2
2
2
2
2
3
5
1
8
6
12
7
9
4
14
1
10
13
11
15
To Next Page
