Operation
5-14 October 2019 16K PLUS
Power Slide Valve Adjustment
The 16k PLUS has been equipped with a relief valve
on Power Slide motor circuit. This valve allows the
operator to adjust the pressure that the Power Slider
applies to the bale.
Adjust relief pressure as follows:
1. Stop all controls and tractor engine, remove ignition
key.
2. Turn electrical power off on control box.
3. Secure the position of all mechanisms before
servicing or adjusting.
4. To reduce the pressure the Power Slider applies
to the bale, screw “B” out, in 1/2 turn increments.
If Power Slide becomes too weak to push bales
back, screw “B” in, in 1/4 turn increments. Adjust
screw “B” as required.

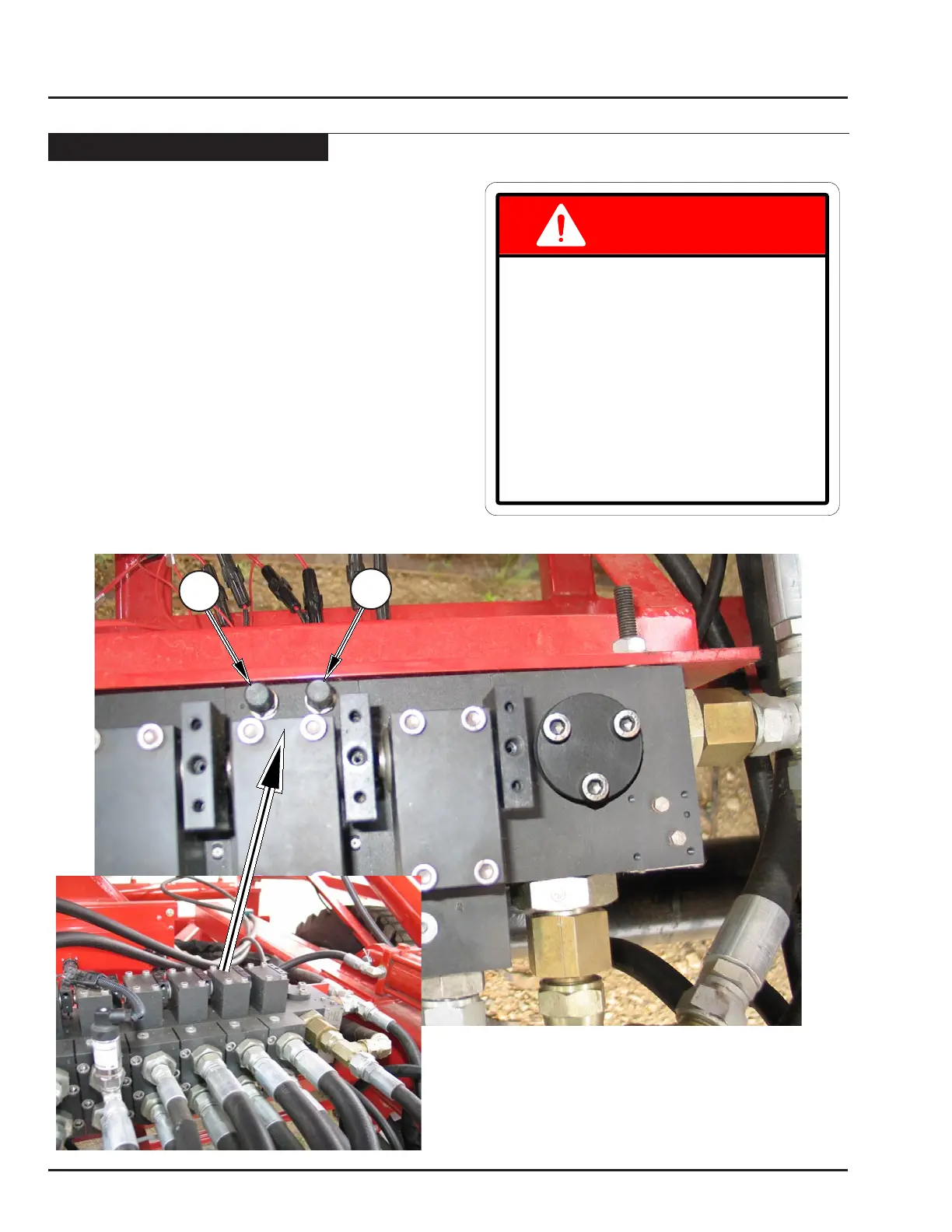

A
B
DANGER
11549
Mechanism on Stacker
May Move Automatically
Without Warning
TO AVOID INJURY OR DEATH
• Stop all controls and engine, remove ignition key.
• Turn electrical power off on control box.
• Secure the position of all mechanisms before
servicing or adjusting.
