Morris PROAG 16K PLUS - Hawe Valve Block

Operation
16K PLUS October 2019 5-7

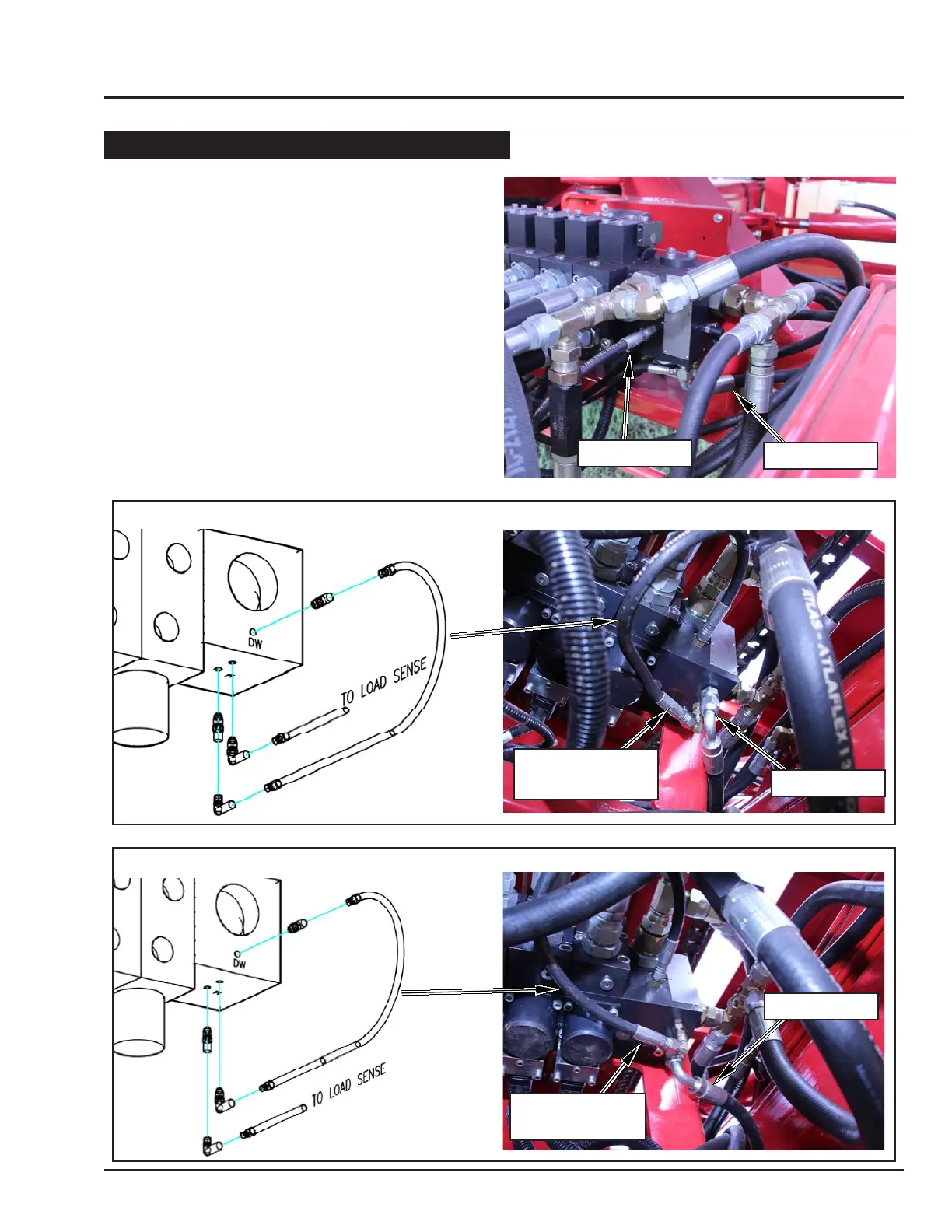

Hydraulic System Configuration - Continued
Pilot Line
Load Sense
Hawe Valve Block
The Pilot line and Load Sense line on the Hawe Valve
Block must be setup to match the hydraulics of the
tractor.
Closed Center Hydraulic System
- Pilot Line conneted to front port.
- Load Sense Line conneted to rear port.
Open Center Hydraulic System
- Pilot Line conneted to rear port.
- Load Sense Line conneted to front port.
Load Sense
CLOSED CENTER
Pilot Line
Closed Center
OPEN CENTER
Pilot Line
Load Sense
Open Center
