Morris PROAG 16K PLUS - Hooking Up for the First Time

Operation
5-8 October 2019 16K PLUS
Hooking Up for the First Time
Use the following outline as a checklist to ensure your
Auto Align Bale Runner is properly set up for use.
Step 1: Attach Bale Runner to Tractor
• Line up the Ball Hitch on the machine with the tractor
draw bar.
Parts Needed
1 Hitch Bolt .............................................................1 1/4” x 9” special
2 Hitch Washer .......................................................1 1/4” at washer
1 Hitch Nut .............................................................1 1/4” plain
1 Hitch Jam Nut ......................................................1 1/4” special
1 Hitch Spacer Bolt ................................................5/8” x 8”
1 Hitch Spacer ........................................................3/4” ID x 3 9/16” tube
2 Hitch Plates .........................................................1/2” x 3” x 6 3/8”
1 Spacer Bolt Nut ...................................................5/8” Nylock
1 Bolt Safety Pin .....................................................3/16” Snaplock Pin
Warning
Remember to turn off hydraulic system and
tractor and remove the key from ignition
before working on the Bale Runner.

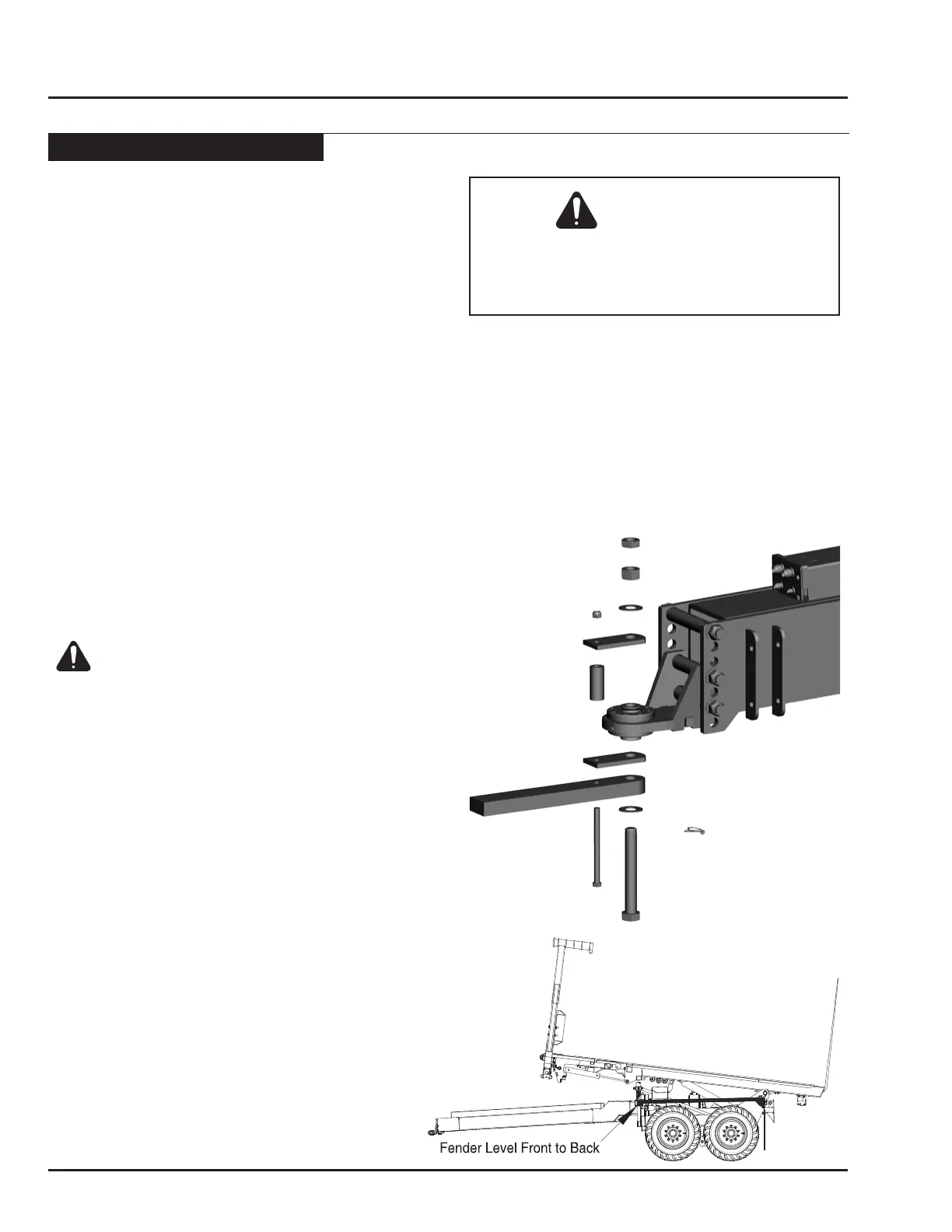

• Secure the machine to the tractor with the 1 1/4” x
9” bolt threaded up through (1) - 1 1/4” at washer,
tractor draw bar, lower hitch plate, ball, the upper
hitch plate, (1) - 1 1/4” at washer, 1 1/4” nut, 1 1/4”
jam nut, and insert bolt safety pin through eyelet in
bolt.
Note: If tractor drawbar pin hole is larger than 1
1/4” a bushing must be added to provide a
snug t. (Bushing not supplied)
• Secure the hitch plates into position with the (1) -5/8”
x 8” bolt threaded up through lower hitch plate, tractor
draw bar, (1) - 3/4” ID x 3 9/16” tubing, upper hitch
plate, and (1) - 5/8” lock nut.
• Adjust hitch clevis so fender is level front to back or
front of fender may be slightly lower than the back
not to exceed 1 1/2 inches.
WARNING: Do not allow anyone to
stand between the tractor and the
stacker while backing the tractor to
the machine hitch.
MATERIAL REQUIRED
NO.PCS.
Name2Name1
SIZEPart No:
1
GRADE 8
HEX BOLT - 5/8 x 8 LGHEX BOLT - 5/8 x 8 LG GR810066A4
1
2PLATE - DRAW BAR HITCH1/2 H/R 44W10142A2
2
1
1/4 x 1 3/4 Lg
KLIK PIN W/CHAIN+COTTER10247A4
3
1
*
SPACER BUSHING1-1/2 OD X .375W C1012 CDBW10313A2
4
1ASSY_STAGE8_16K
5
1
1-1/4 - 7 UNC - 2B
HEX JAM NUTHEX JAM NUT - 1-1/4C15768A4
6
1
5/8-11 UNC - 2B
NYLON INSERT HEX LOCKNUTLOCKNUT - 5/8 NYLON INSERTC17295A4
7
1HITCH BOLTHITCH BOLTK45448B2
8
1
1 1/4-7 UNC - 2B
REGULAR HEX NUTHEX NUT - 1 1/4P61D20
9
2
*
TYPE A PLAIN WASHERWASHER - 1-9/32 ID X 2-1/2 OD X 10 GAS34182A4
10
1TRACTOR-DRAW-BAR-PARTS
11
ASSY_STAGE10_16K
Description
