Operation
5-4 October 2019 16K PLUS
Machine Conventions
“Pushoff In” The pushoff is retracted into the pushoff
tube.
“Pushoff Out” The pushoff is extended from the
pushoff tube and penetrates through the hole in the
rear of the bed. The bed must be fully raised before the
pushoff tube can be extended, otherwise component
collision is possible.

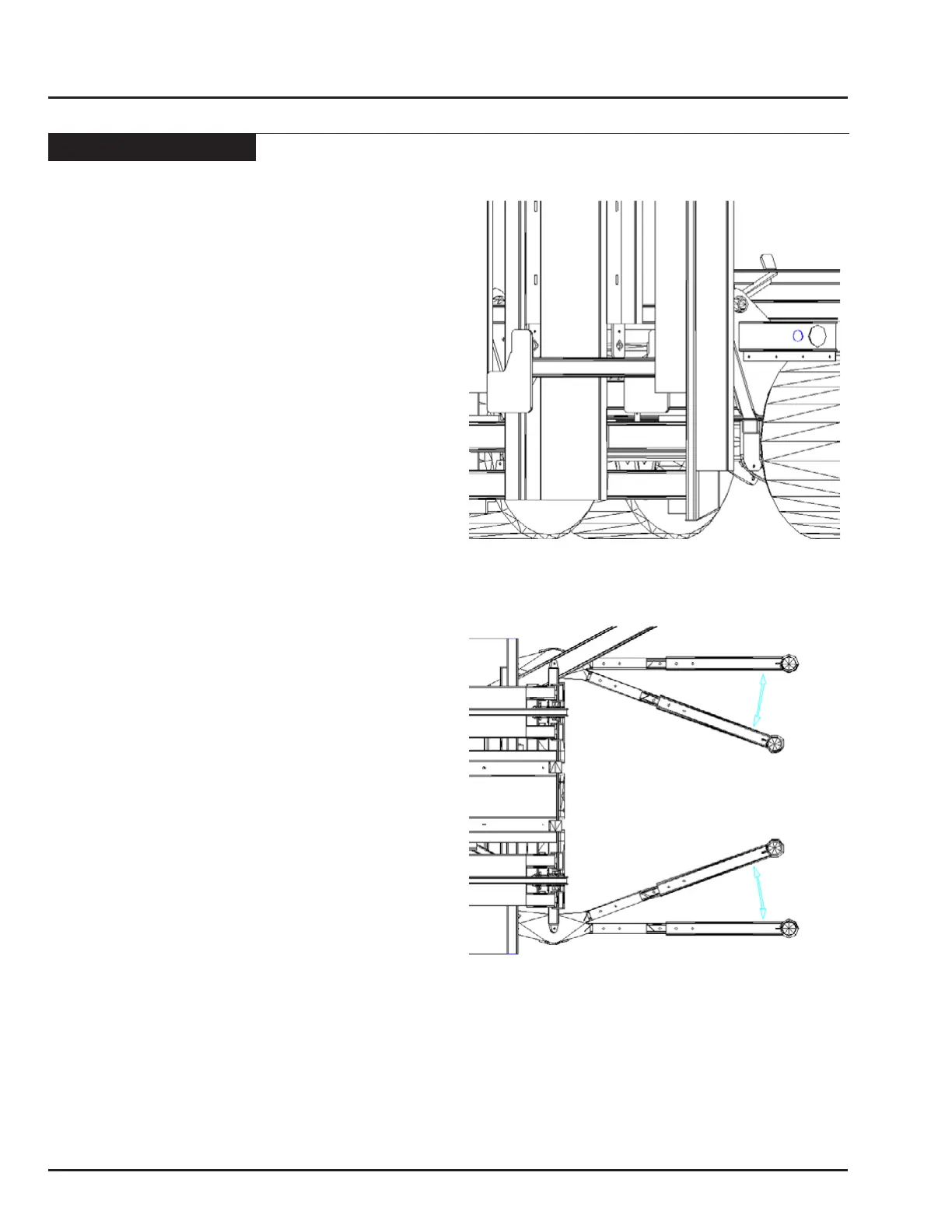

“Power Slider Home” The power slider is fully returned
underneath the loader.
“Power Slider Back” The power slider has gone
through half of its cycle and is positioned on top of the
bed. This position varies along the bed depending on
the number of bales that have already been gathered.
“Alignment Arms Open” The alignment arms are open
when the portion of the alignment arms that are closest
to the tractor are at their widest position.
“Alignment Arms Closed” The alignment arms are
closed when the portion of the alignment arms that are
closest to the tractor are at their narrowest position.
“Grab Hooks In” The grab hooks are in when they
are engaged, or grabbing the bale through the front of
the loader.
“Grab Hooks Out” The grab hooks are out when
they are disengaged back behind the loader, or have
released the bale.
