Operation
5-38 October 2019 16K PLUS
Operation of Controls - Continued

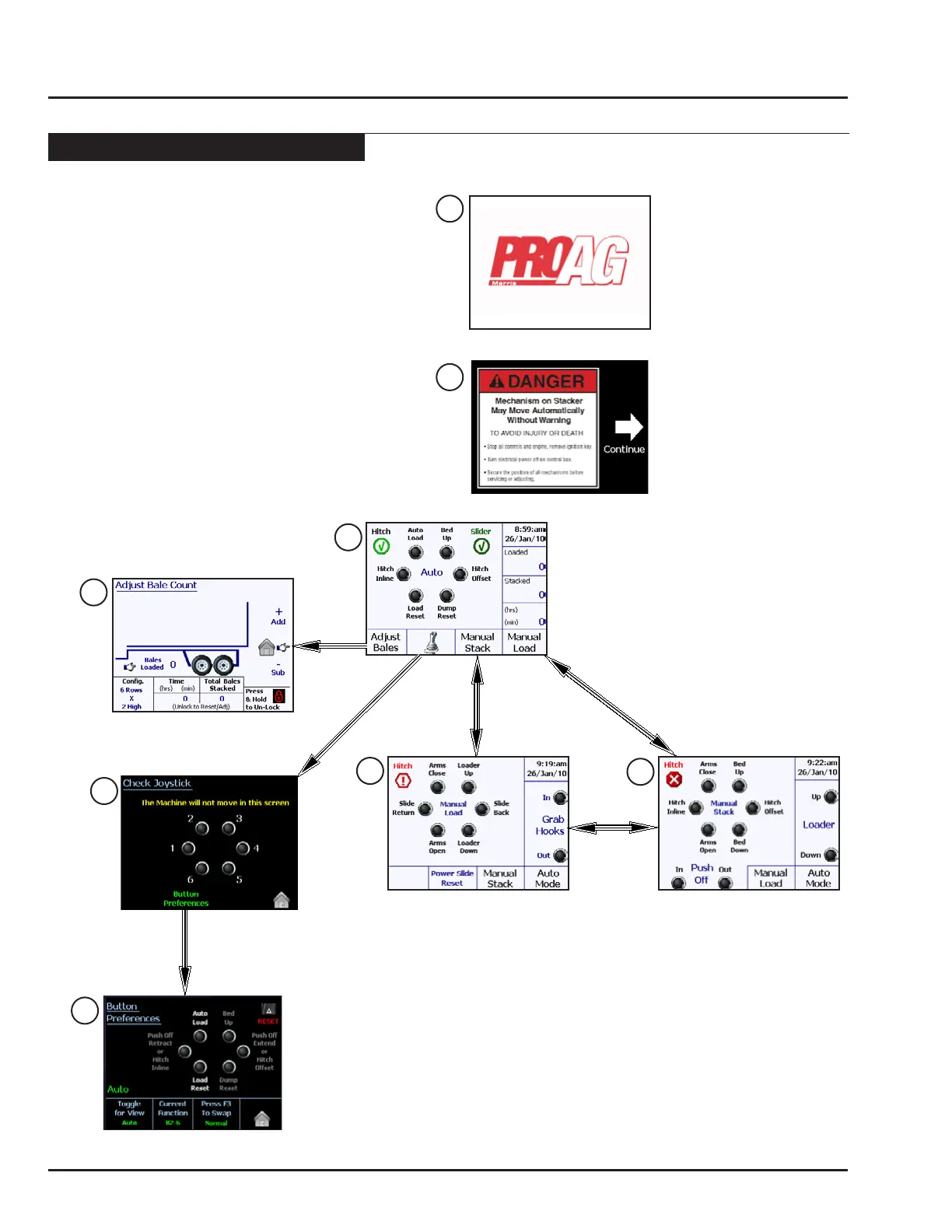

Operating Screen Map
1. Start-Up Screen
2. Warning Screen
3. Auto Screen
4. Manual Stack Screen
5. Manual Load Screen
6. Adjust Bale Count Screen
7. Check Joystick Screen
8. Button Preferences Screen
The number located next to the buttons indicate which
screen is displayed when that button is pressed.
1
2
3
4
5
6
7
8
