Operation
5-12 October 2019 16K PLUS
Conguring Alignment Arms and Bed Extensions
Set the postion of the alignment arms and bed extensions to match the type of bale being stacked.
Adjusting Alignment Arms
To adjust the alignment arms, remove the alignment
arm adjustment bolts and slide the arms to their next
position. Reinsert the bolts and torque to 270 ft. lbs.
Adjusting Bed Extensions
With the hitch offset and the loader lowered all the
way, remove the pins from the rear hole in the bottom
of the bed extensions. Slide the bed extensions
forward, with the tip of the bed extension under the
loader sheet. Reinsert the pins using the forward
holes in the bed extensions.
Replacing Forks on Bed
• Raise the bed to the fully raised position.
• Remove the fork retaining bolt and retaining block
from the back of the bed.
• Slide the fork to the center of the bed past the
retaining tab (Warning: Forks are heavy, use
caution).
• Reverse above procedure to install new fork. Torque
retaining bolt to 270 ft. lbs.

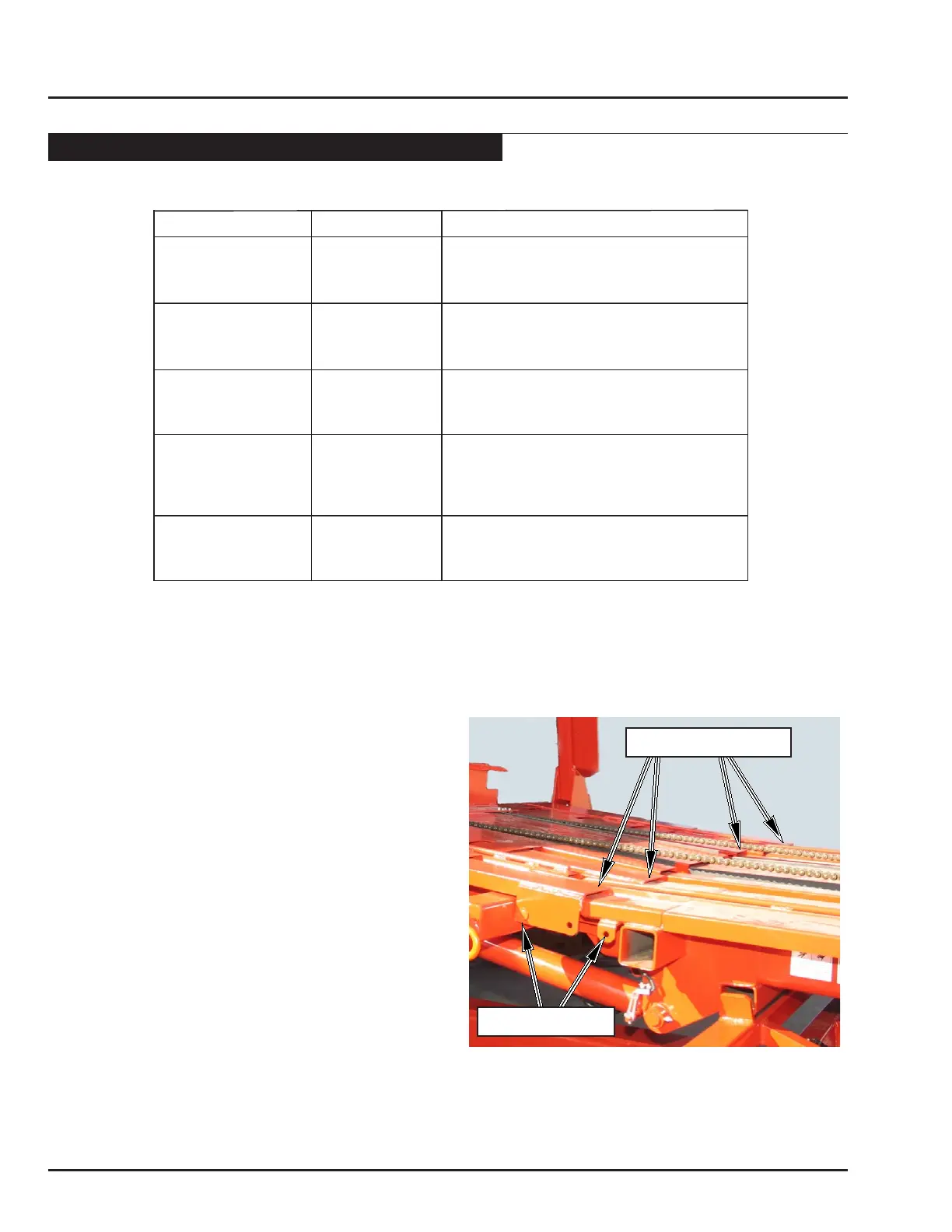

Bed Extensions
PIN LOCATIONS
BED EXTENSIONS
Bale Sizes Stack Size Stacker Configuration
Freeman - 3x4
38"x46"
On Strings
5 High x 2 Deep
Long Alignment Arms
Engage Bed Extensions
NH 595 - 3x4
35"x47"
On Strings
6 High x 2 Deep
Long Alignment Arms
Engage Bed Extensions
Hesston 4900 - 4x4
51"x48"
On or Off Strings
4 High x 2 Deep
Long Alignment Arms
Disengage Bed Extensions
Hesston 4755 - 3x3
35"x32"
On Strings
6 High x 2 Deep
Shorten Length of Alignment Arms
Engage Bed Extensions
Shorter Forks on Bed are recommended
*see PROAG Dealer for more information.
Hesston 4755 - 3x3
35"x32"
On Strings
6 High x 3 Deep
Long Alignment Arms
Engage Bed Extensions
Note: Other manufacturer’s balers create the same size bales - these were used for illustration purposes only.
To pick bales “Off Strings” it is recommended to use a bale turner on the baler.
