Operation
16K PLUS October 2019 5-33
Automatic Mode - Continued
Bed Up
• The Bed Up button raises the bed. If the pushoff is not in, it will be retracted before the bed goes up.
Dump Reset
• The Dump Reset button will lower the bed. If the pushoff is not in, it will be retracted rst. If the bed starts
above the mid-position, and the Dump Reset button is held for more than 2 seconds, it will continue to lower
automatically. Pressing the Bed Up button will stop this automatic movement.
• If the bed descends past the bed-mid position while the loader is down, it will stop and raise the loader
automatically before continuing down.
• If the bed was initially above the bed mid position when it started, the arms will close and the hitch will move
inline automatically after the bed is all the way down. Pressing the Load Reset button once while the arms are
closing will stop them, and similarly, pressing the Hitch Offset button while the hitch is moving inline will stop
it.
Hitch Inline
• The Hitch Inline button moves the hitch inline. Normally, if the button is released, the hitch will stop.
• If the hitch is moving inline automatically, either after the last row of bales has been loaded, or after a load of
bales has been stacked, pressing the Hitch Offset button will stop the hitch from moving inline.
Hitch Offset
• The Hitch Offset button moves the hitch offset. The button must be held to perform this function.
Note: The Pushoff Retract and Pushoff Extend functions are only available in Automatic mode when the
bed is all the way up. The Hitch Inline and Hitch Offset buttons dissappear from the joystick control.
Pushoff Retract
• The Pushoff Retract button retracts the pushoff. The button must be held to perform this function. This option
is only available when the bed has been fully raised.
Pushoff Extend
• The Pushoff Extend button extends the pushoff. The button must be held to perform this function. This option
is only available when the bed has been fully raised.

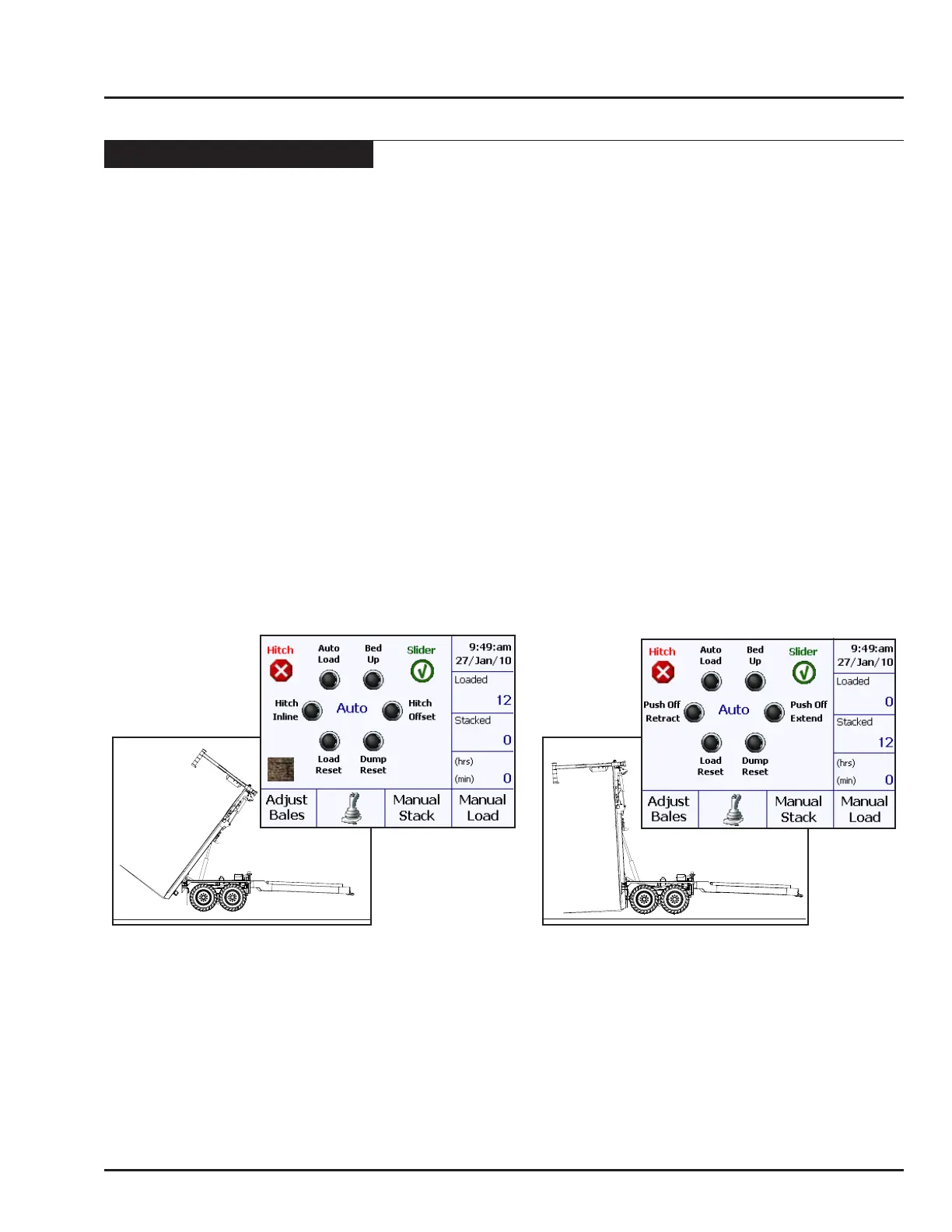

Bed Mid Position
Bed Raised
