Motion Control Engineering Nidec iControl User Manual

5-3
iCentral - Central Dispatcher
iControl AC
5
Caution
All 2 bus power from cars to the iCue cabinet must be in phase. Connecting out-of-phase
power WILL cause damage.
2b. A separate conduit or trough must be provided for the System (group-to-car)
Ethernet network. Wiring details in the job prints must be followed exactly.
2c. If applicable, also wire according to the Group Interconnects to Individual Car
Cabinets print. Be sure to ground all cabinets according to instructions.
2d. Refer to the Group Supervisor Field Wiring Print for iCentral field wiring instruc-
tions.

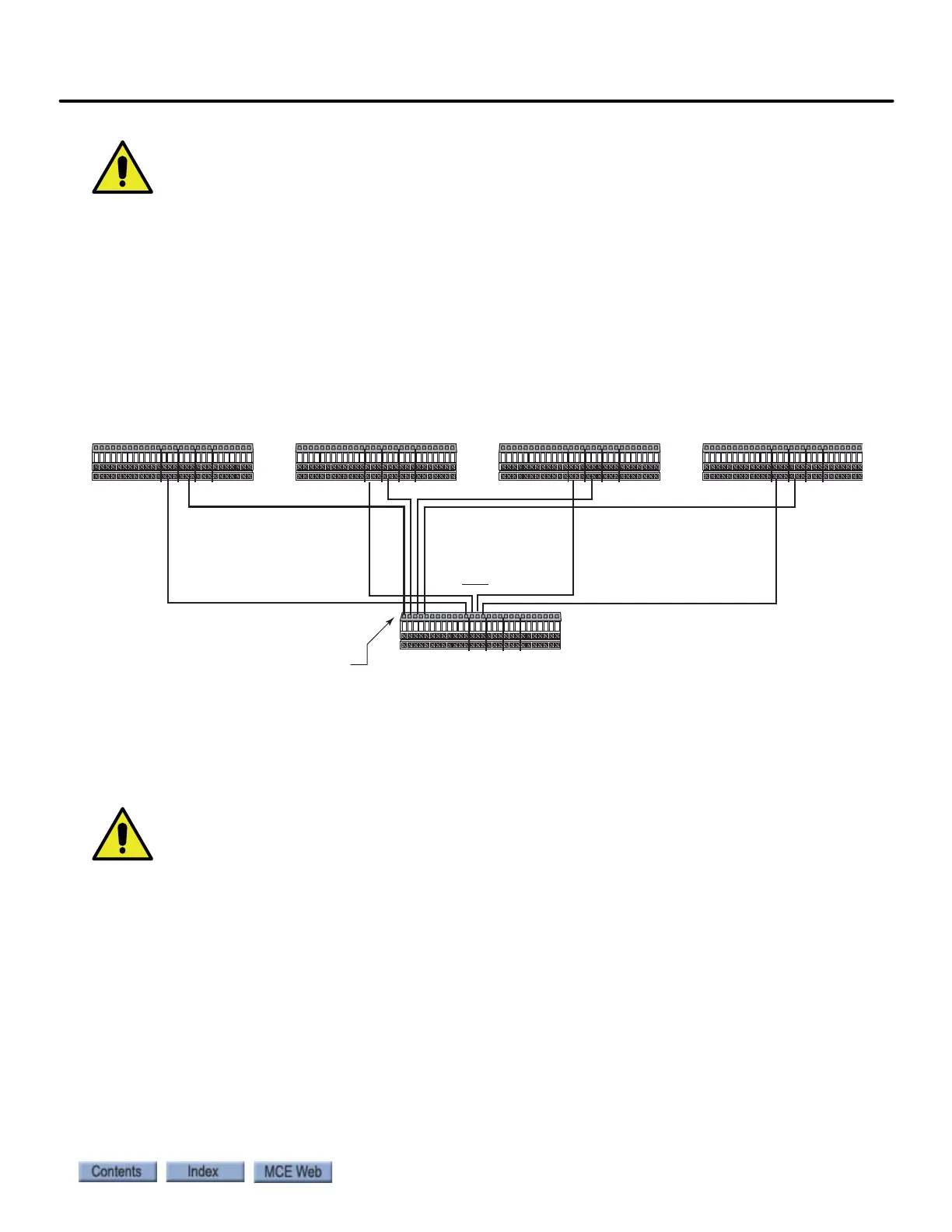

Figure 5.1 Elevator Controller to iCue Cabinet Wiring
Initial Power Up and Bus Verification
After AC power is connected, you are ready to temporarily power up and check that power buses
inside the cabinet are providing their proper outputs.
Caution
This procedure assumes that no field wiring has yet been connected. If field wiring has been con-
nected, it must be disconnected before beginning this procedure. Before applying power, physically
check all components in the cabinet. Components loosened during shipment may cause damage.
1. Power up the elevator controllers.
2. Power up the group controller.
3. If a controller fails to power up, refer to the job prints and check supply connections and
fuses.
4. Measure from each iCue ST2 bus terminal to a Common (#1) terminal. Verify 120VAC.
5. If any bus voltage is missing, check the associated fuse. The fuses are labeled with the
bus numbers and are located at the top of the cabinet.
6. Power the controllers down (in preparation to continue wiring equipment).
iCue
iController 1 iController 2 iController 3 iController 4
B1 B2 MF1 MF2 L1P L2P L3P xx xx xx xx xx 1 1 1 2 2 2 3 3 3 xx xx xx xx xx xx xx B1 B2 MF1 MF2 L1P L2P L3P xx xx xx xx xx 1 1 1 2 2 2 3 3 3 xx xx xx xx xx xx xx B1 B2 MF1 MF2 L1P L2P L3P xx xx xx xx xx 1 1 1 2 2 2 3 3 3 xx xx xx xx xx xx xx B1 B2 MF1 MF2 L1P L2P L3P xx xx xx xx xx 1 1 1 2 2 2 3 3 3 xx xx xx xx xx xx xx
B1 B2 MF1 MF2 L1P L2P L3P xx xx xx xx xx 1 1 1 2 2 2 3 3 3 xx xx xx xx xx xx xx
1
1
ST2 ST2 ST2ST2111
ST2A, ST2B, ST2C, ST2D, etc.
