2-23
Setting Initial Operating Parameters
iControl AC
2

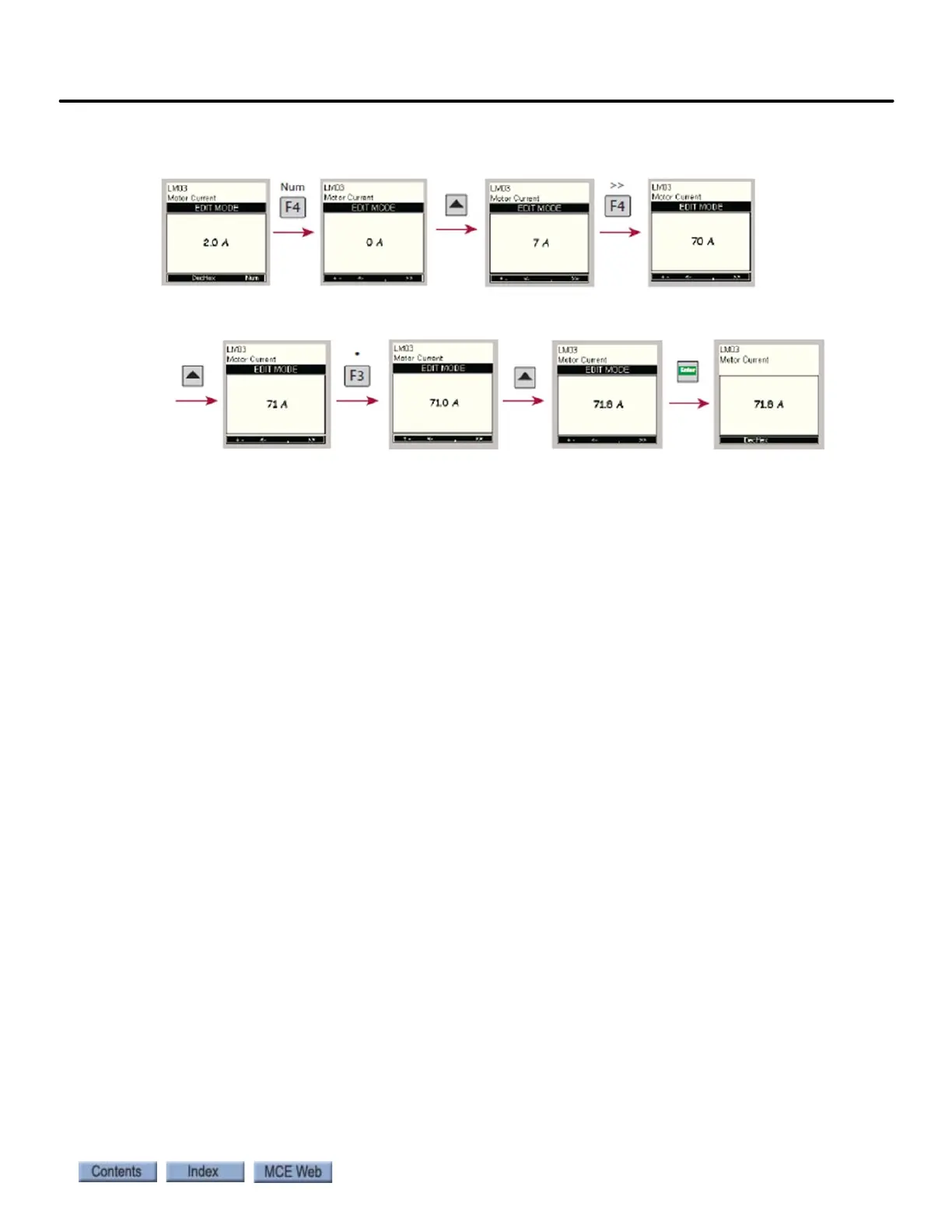

An example of using the NUM function to change a parameter is shown below:
The NUM function can be useful for selecting parameter options from a list using its assigned
value as opposed to scrolling through the text descriptions. Most parameters with a large list
option will have a corresponding NUM column listed in the parameter description of the man-
ual for quick and easy adjustment.
The NUM function can also be very quick and useful for adjusting large numbers as opposed to
scrolling.
With parameters that allow multiple items to be selected together, the NUM value would corre-
spond to the sum of the individual selections.
Error Messages
If a malfunction occurs during operation, the drive shuts down operation and the keypad will
display an error. Error messages can be reset by pressing “RESET” F4 hot key.
TORQMAX F5 Drive v3.xx Setup
Utilizing the programming record for the job, program the drive parameters. Configure initial
parameters on the drive's Home> Prog > Basic Setup menu in the following order:
1. US02 (System Units).
2. US03 (Motor Type).
3. US04 (Control Type).
4. US05 (Load Configuration).
• Set parameter to 2 = Write Configuration to Drive” and save.
5. US06 (Contract Speed).
Configure remaining parameters on the drive's Home > Prog > Inputs, Motor Data, Encoder
Data, Machine Data, Control Settings, Timer Parameters, Special Functions, Analog I/O, Out-
puts, and Field Bus Configuration menu.
