2-29
Setting Initial Operating Parameters
iControl AC
2
Magnetek AC Drive Introduction
Study the drive manual. It has very important startup and other information beyond the scope
of this manual.
Digital Operator
The keypad and display integral to the digital operator.

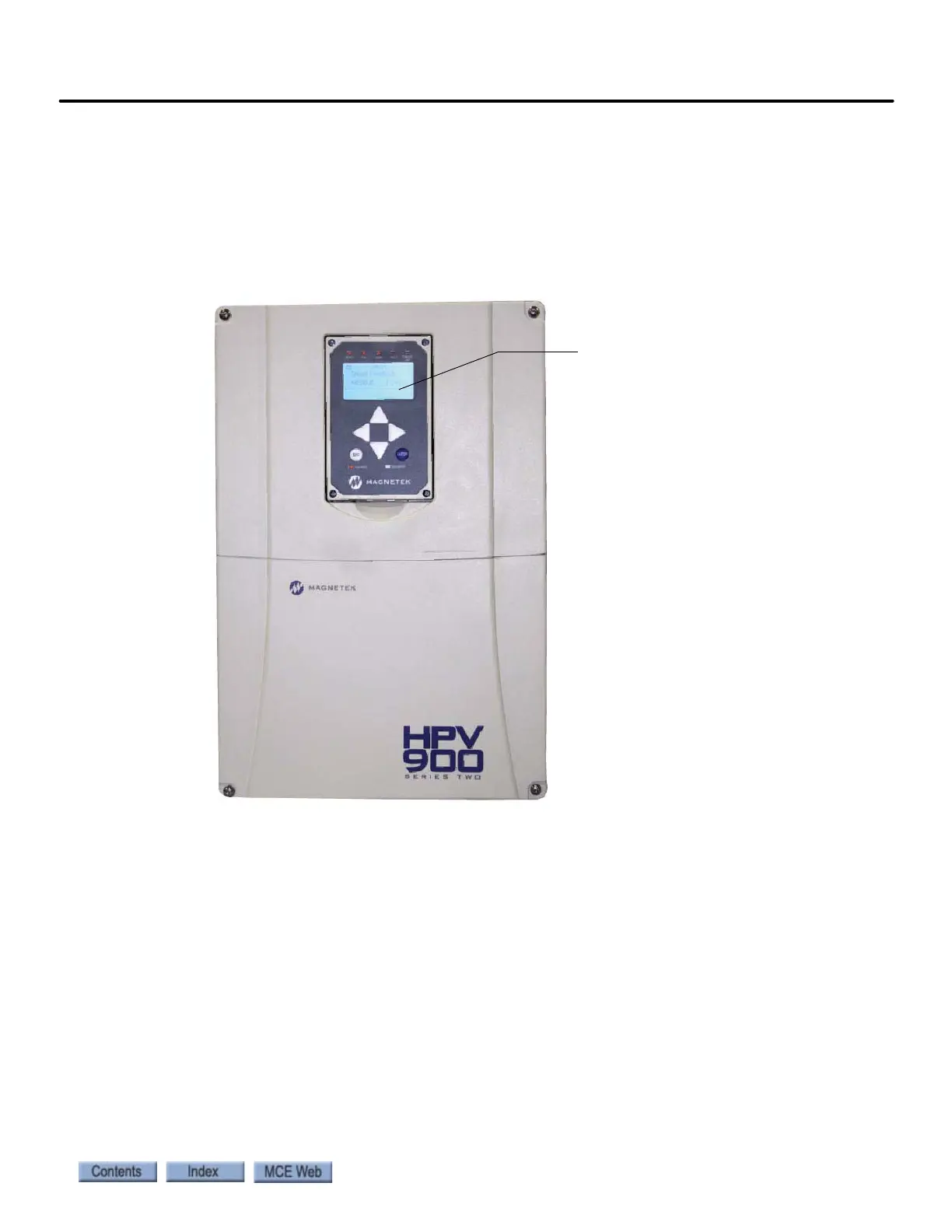

Figure 2.4 Magnetek AC Drive
Keypad Operation
Please refer to “Magnetek Keypad Overview” on page 2-30.
Clear Fault
Most faults clear automatically. If a persistent (serious) fault is displayed, the drive will shut
down. To clear the fault after correcting the cause:
• Access the drive Faults F0 menu, submenu Active Faults, F1.
• Go to Reset Active Faults. Press Enter.
