1-2 Manual # 42-02-2223
iControl Overview
General Description

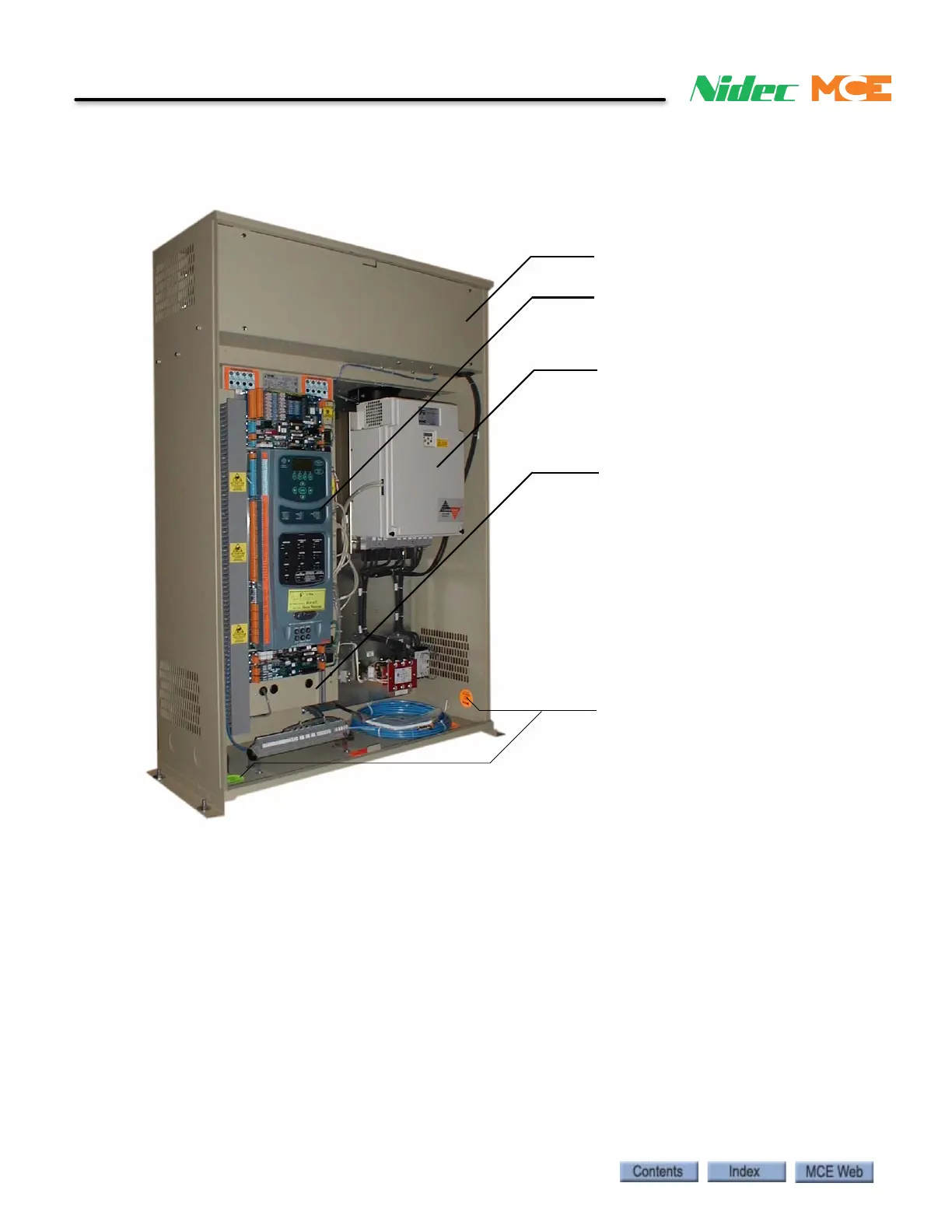

Figure 1.1 Cabinet Layout (typical)
Component Assemblies
• iControl enclosure containing iBox elevator control, AC or DC drive, and expansion circuit
boards as required for the specific job
• Landing system, per job requirements
• iLand: Rail face encoder wheel, rail mounted floor magnets, roller guided sensors
• iLand slide guide: As above but with slide sensor guides instead of rollers
• iLand NEMA: Vane and sensor system, ambient temperature to 125 degrees F, fully
sealed against dirt and moisture
• LS-EDGE: Perforated steel tape, door zone and terminal magnets
• Cartop-mounted interconnect box
• iControl specific traveler and hoistway cable assemblies, optional
Resistor cabinet
iBox
AC flux vector drive
iPower box
Standard cabinet dimensions:
Height = 62 inches (157.5 cm)
Width = 42 inches (107 cm)
Depth = 16 inches (41 cm)
Measurements are approximate
Markers: wiring knock-out
locations
