2-41
Brake Calibration
iControl AC
2
Calibration
Calibration allows iControl to learn the characteristics of the machine brake.
1. Verify that the iBox Safety OK LED is solidly on.
2. Set the iBox Learn switch to ON.
3. Place the iBox Inspection switch in the INSP position. Verify that the iBox displays
Machine Room Insp.
If the iBox does not indicate that you are in Machine Room Inspection even though the Inspection switch
is in the INSP position, another inspection mode (i.e., cartop inspection) is probably active. Other inspec-
tion modes must be OFF before Machine Room Inspection can be activated.

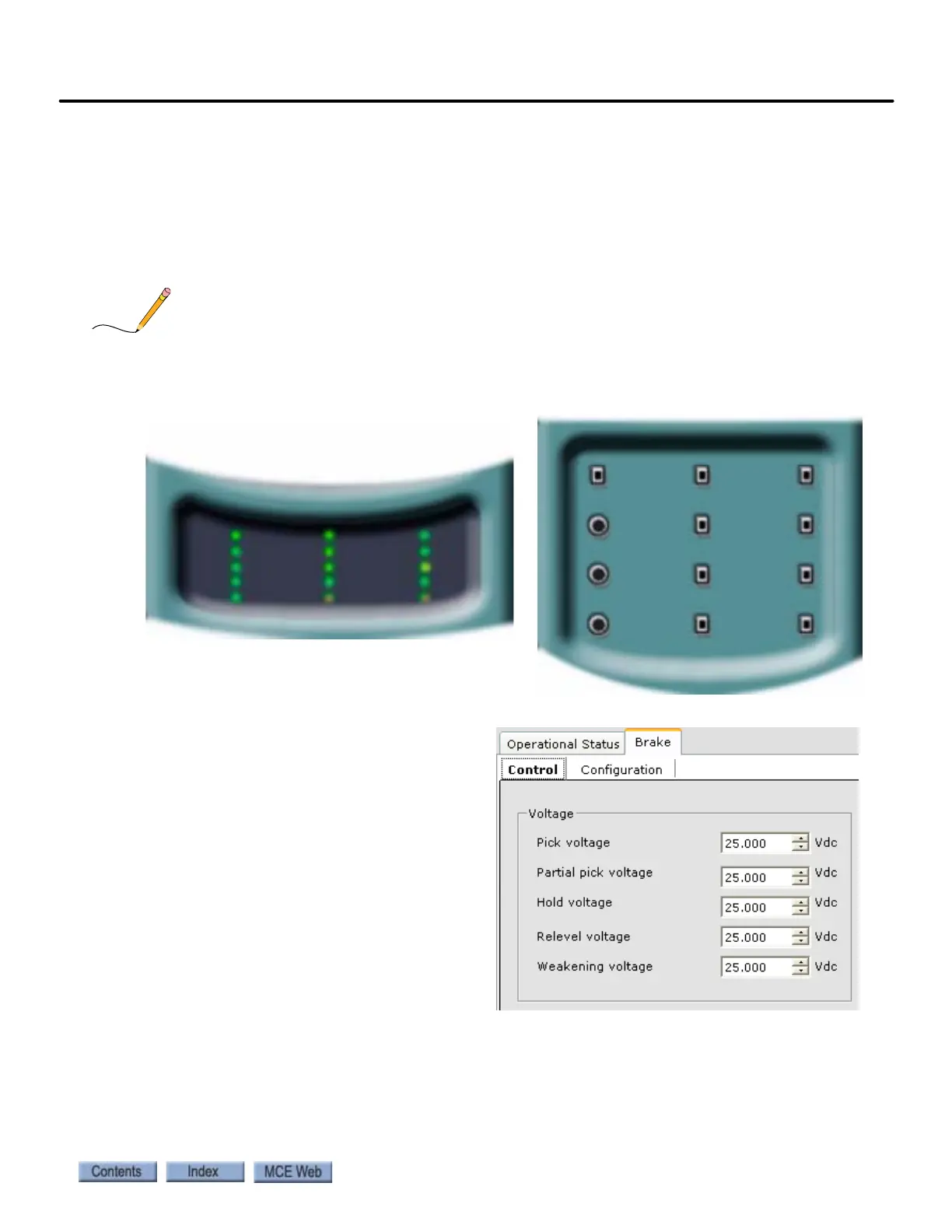

4. Display the Brake > Control tab (Con-
figuration > Brake > Control tab).
5. Set Pick voltage and Hold voltage as
shown on your job prints.
6. For now, set Releveling voltage and
Weakening voltage to the same value
as Pick voltage. (This parameter can
be fine tuned during final adjust-
ment.)
COMPUTER
SAFETY A
SAFETY B
CARTOP
SYS COMM
UP
DRIVE ON
DOWN
RUN
RELEVEL
SAFETY OK
DOOR LOCKED
INSPECTION
IN GROUP
FAULT
INSP
NORM
STOP
RUN ON
ON
OFF
ON
OFF
OFF
ON
ON
OFF
OFF
OFF
BYPASS BYPASS
INSPECTION
CONTROLLER
STOP
FAULT/FUNCTION
BYPASS
UP
ENABLE
DOWN
CAPTURE WRITE ENABLE
LEARN
TEST
CAR DOOR
BYPASS
HOISTWAY
DOOR BYPASS
OFF
