5-22 Manual # 42-02-2223
System Options
Checking Serial to IP Connections
Each Serial Hall Call bus originates from a Serial Hall Call Driver. Each Serial Hall Call Driver
communicates with iCue through the System Ethernet switch.

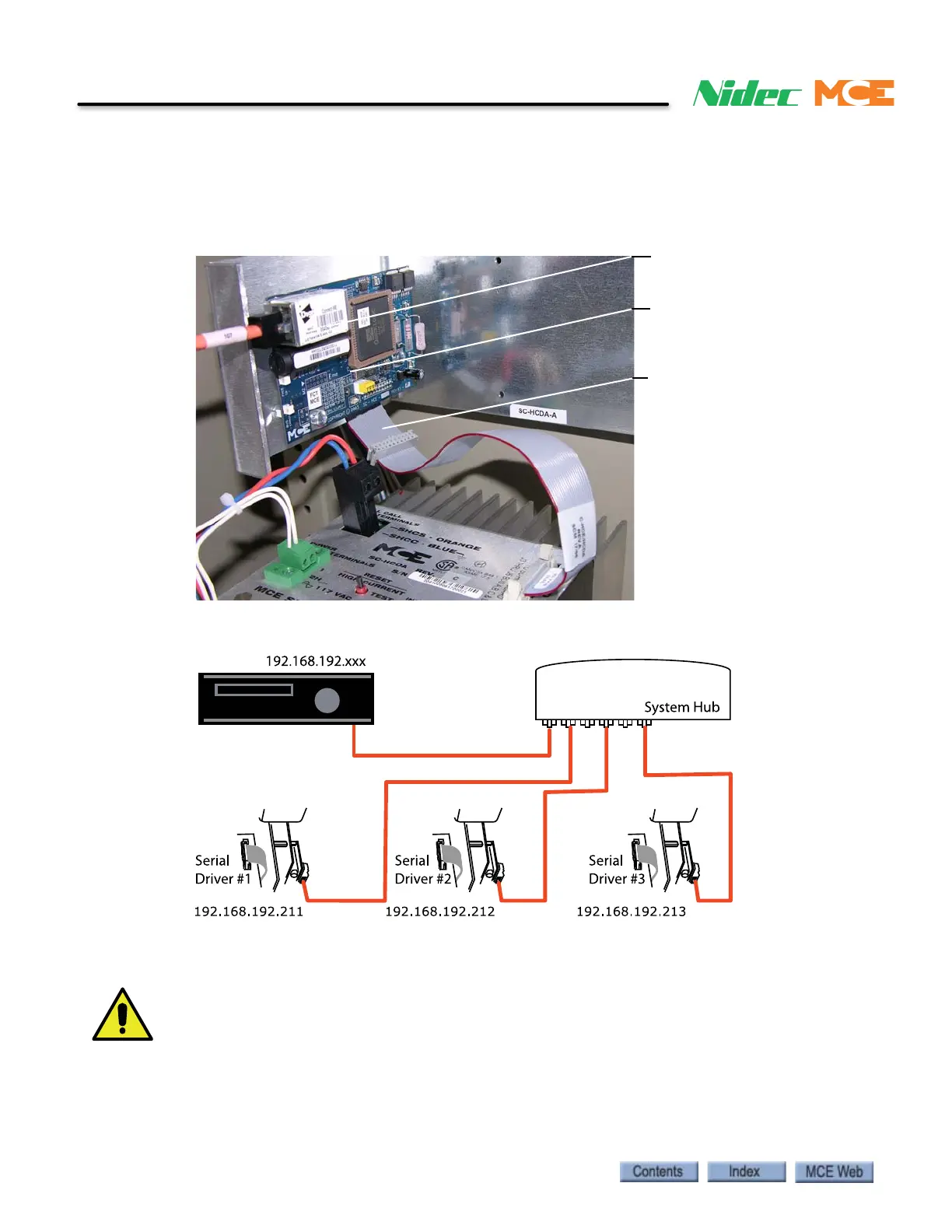

Figure 5.9 Serial to TCP/IP Connection
1. Verify an orange Ethernet cable from the Serial-to-Ethernet converter to the System
hub/switch.
The Serial-to-Ethernet converters each have their own IP address. The IP address is preset at
the factory and should not need to be changed.
Always power down the serial hall call driver and wait at least one minute before installing, replacing,
disconnecting, or connecting an SC-HCE serial to Ethernet board to avoid potential damage from a
high voltage spike.
Serial communication to
serial-to-Ethernet converter
(In some applications, the
serial-to-Ethernet converter
is plugged directly into the
serial hall call driver and no
ribbon cable is used.)
Serial-to-Ethernet converter
(physically different model
may be used)
Ethernet port for connection
to System hub/switch
