3-2 Manual # 42-02-2223
Inspection Mode
Landing System
Please see the instruction shipped with the landing system equipment. See the job prints for
wiring instructions. Depending on job requirements, one of the following landing systems will
be used:
• iLand: Wheel encoder system. Instruction 42-IS-0173.
• LS-EDGE: Steel tape encoder system. Instruction 42-IS-0214.
Setting the Position Encoder Resolution parameter

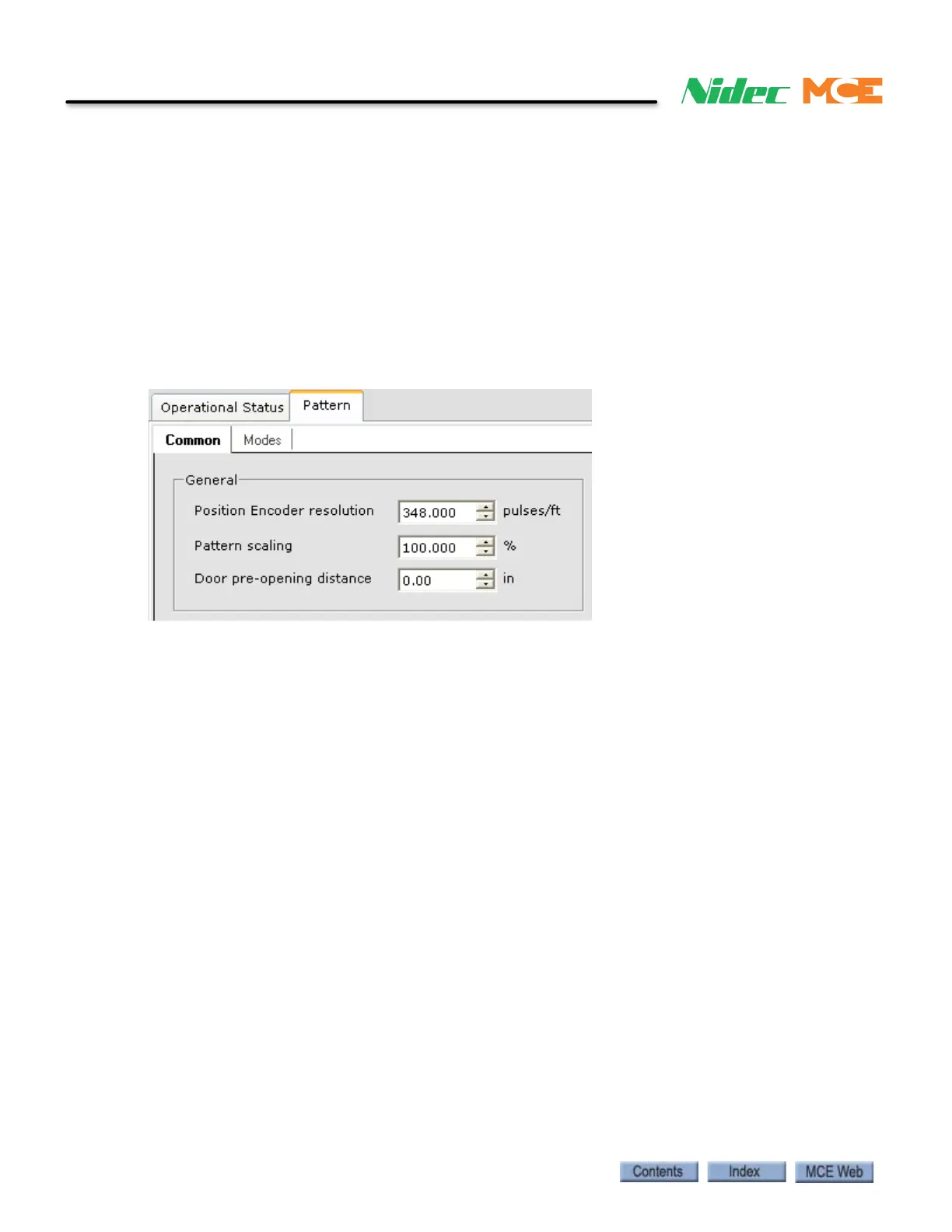

Set position encoder resolution as directed for the system on (iView Controller > View > Config-
uration > Pattern > Common tab).
Calibrating the Floor Offsets
See “Calibrating the floor offsets” in Section 4. If this is a new installation, wait until the car has
been fully adjusted so that it stops consistently and accurately at the floors.
