Serial COP
iControl AC
5
Wiring from the Serial COP board(s) to the iLink cartop box is a short length of shielded cable
with a telephone-style RJ-11 connector at each end. The iLink cartop box supports up to four
serial control panel connections. Communication between iLink and the controller is also serial,
thereby reducing the traveler and hoistway cabling.

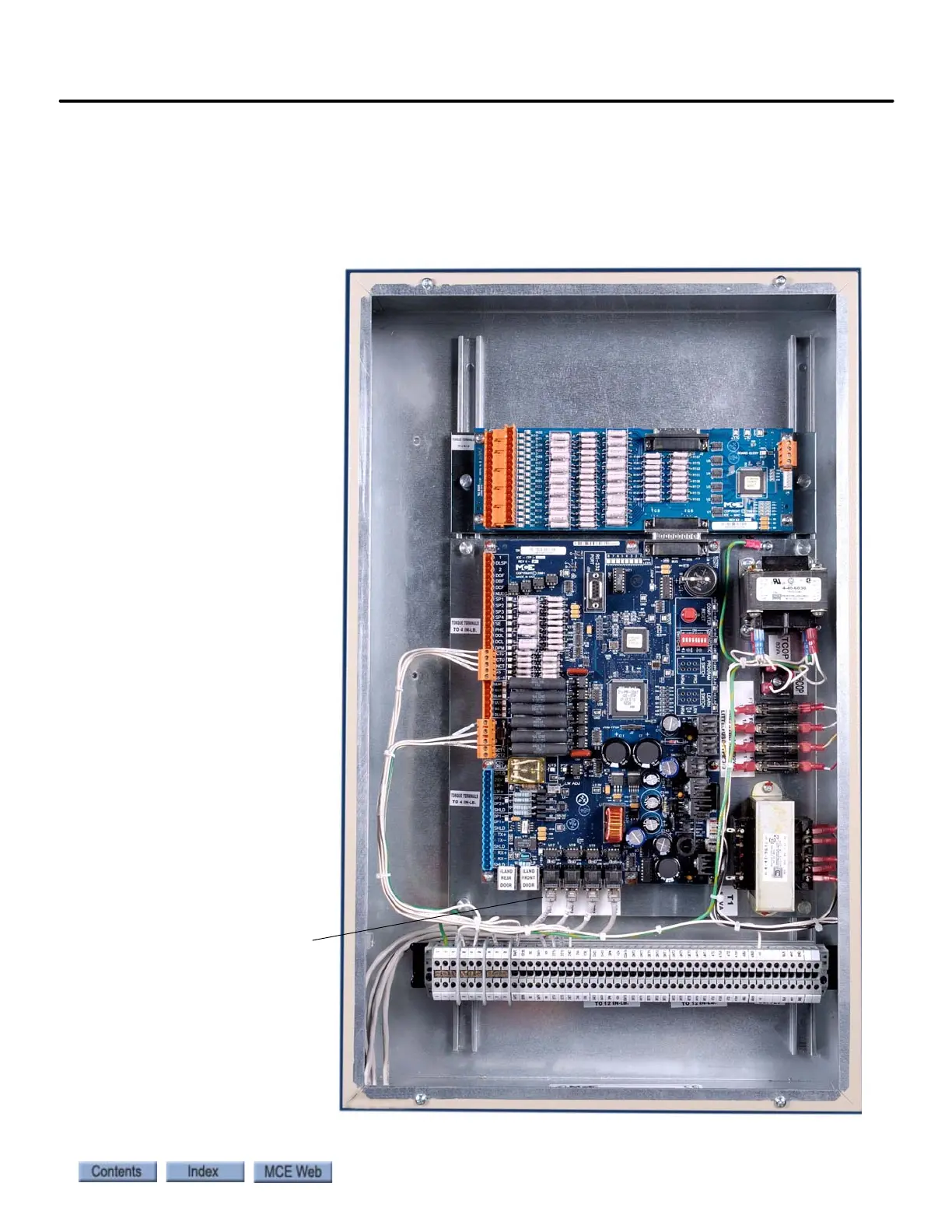

Figure 5.14 iLink Cartop Box
Cables (4) from Serial
COP boards
