iControl Overview

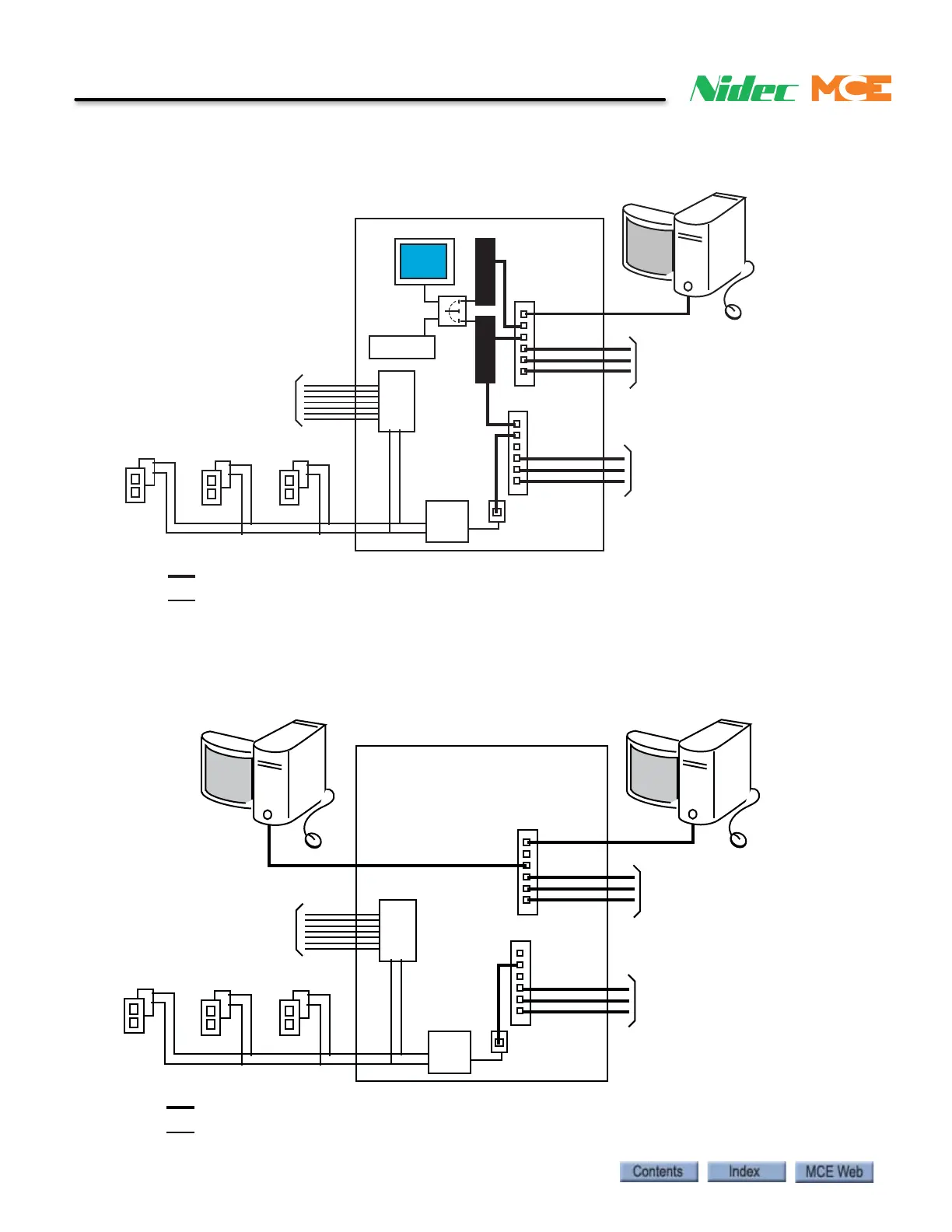

Figure 1.6 Central Dispatcher (iCentral) Interconnection
Figure 1.7 Local/Dispatcher (Comm-connect) Interconnections
SYSTEM: Hall calls, Parking,
Special operating modes
LAN: iView, iMonitor, iReport
connectivity.
Ethernet
Other
DISPATCHER
Hall Calls
SYSTEM
LAN
To Car s
To Car s
iCue
Monitor
Switch
Keyboard
iView
Serial
Driver
Serial to
Ethernet
iMonitor or iReport
Serial Bus
SC-
ION
General Field Inputs
to Dispatcher
SYSTEM: Hall calls, Parking,
Special operating modes
LAN: iView, iMonitor, iReport
(4 connections per car max.).
Ethernet
Other
Comm-connect Cabinet
Hall Calls
SYSTEM
LAN
To Cars
To Cars
iView
Serial
Driver
Serial to
Ethernet
iMonitor or iReport
Serial Bus
SC-
ION
General Field Inputs
to Dispatcher
