Setting Initial Operating Parameters
iControl AC
2
Caution
Before connecting the “System” ethernet cable to the iBox:
1. Verify the Car ID, in the upper right corner of the display, is correct. Press the iBox
“Computer Reset” and verify that Car ID is still correct. The Car identifier is set on the
iView > Controller > Configuration > General tab.
2. Verify no other iBox in this group of controllers has the same Car ID.
3. Check “Alternate Dispatcher” settings on the iView > System > System Configuration >
Building tab. Verify “Auto-select Preference Order” settings are identical on all cars in
the group.

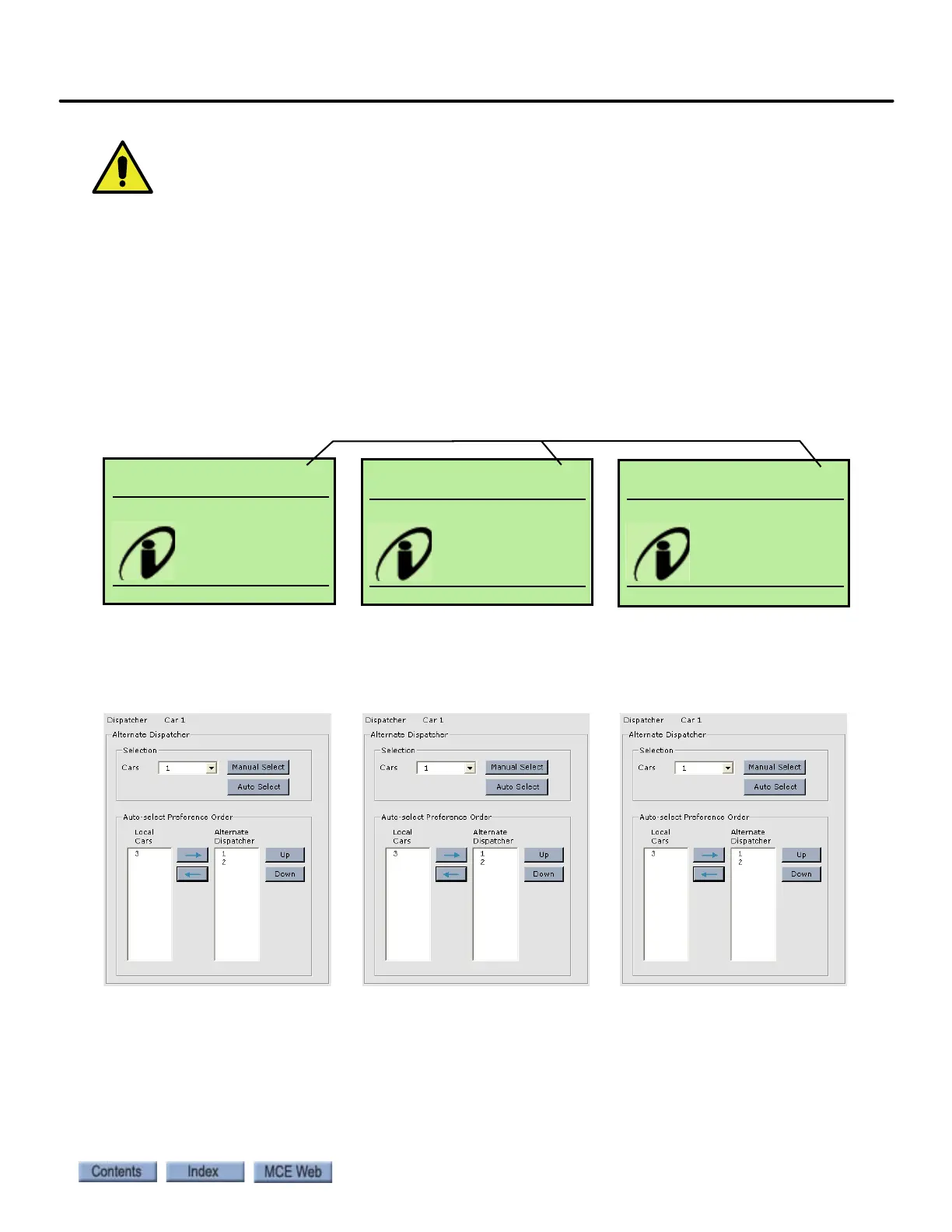

Figure 2.1 Check before connecting the “System” ethernet cable to the iBox
@003 s 015 FG RO L02
Passenger
Ofpm
2:26:22AM
10/30/2007
Car Mgmt
@003 s 015 FG RO L03
Passenger
Ofpm
2:26:22AM
10/30/2007
Car Mgmt
@003 s 015 FG RO L01
LOCAL DISPATCHER
Ofpm
2:26:22AM
10/30/2007
Car Mgmt
Check for correct Car ID. Verify that no two Car IDs in the group are the same.
On the iView > System > System Configuration > Building tab, verify that the Alternate
Dispatcher “Auto-select Preference Order” settings are identical for all cars in the group.
Car 01 System Configuration Car 02 System Configuration Car 03 System Configuration
