MTC-96
TROUBLE DIAGNOSIS
Revision: January 2005 2004 Quest
2. PERFORM AUTO ACTIVE TEST
Refer to PG-21, "
Auto Active Test" .
Does magnet clutch operate?
Yes or No
Yes >> ● WITH CONSULT-II
GO TO 5.
● WITHOUT CONSULT-II
GO TO 6.
No >> Check 10A fuse (No. 33, located in IPDM E/R), and GO TO 3.

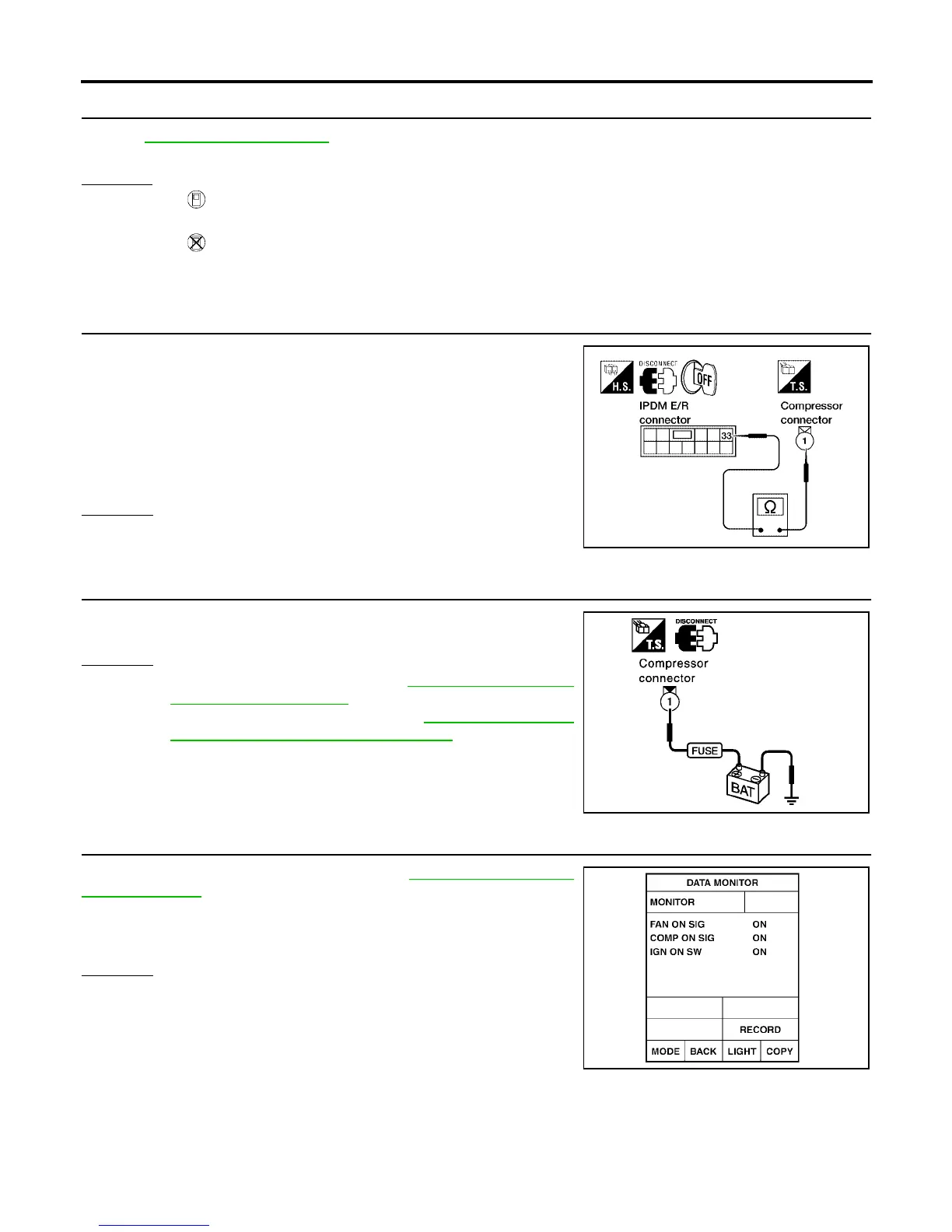

3. CHECK CIRCUIT CONTINUITY BETWEEN IPDM E/R AND COMPRESSOR
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and compressor (magnet
clutch) connector.
3. Check continuity between IPDM E/R harness connector E124
terminal 33 (Y/B) and compressor harness connector F3 termi-
nal 1 (Y/B).
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK MAGNET CLUTCH CIRCUIT
Check for operation sound when applying battery voltage direct cur-
rent to terminal.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-27, "Removal and
Installation of IPDM E/R" .
NG >> Replace magnet clutch. Refer to MTC-149, "
Removal
and Installation for Compressor Clutch" .
5. CHECK BCM INPUT (COMPRESSOR ON) SIGNAL
Check compressor ON/OFF signal. Refer to MTC-31, "
CONSULT-II
Function (BCM)" .
OK or NG
OK >> GO TO 8.
NG >> GO TO 6.
33 – 1 : Continuity should exist.
WJIA0331E
SJIA0197E
A/C SW ON : COMP ON SIG ON
A/C SW OFF : COMP ON SIG OFF
WJIA0469E
To Next Page
