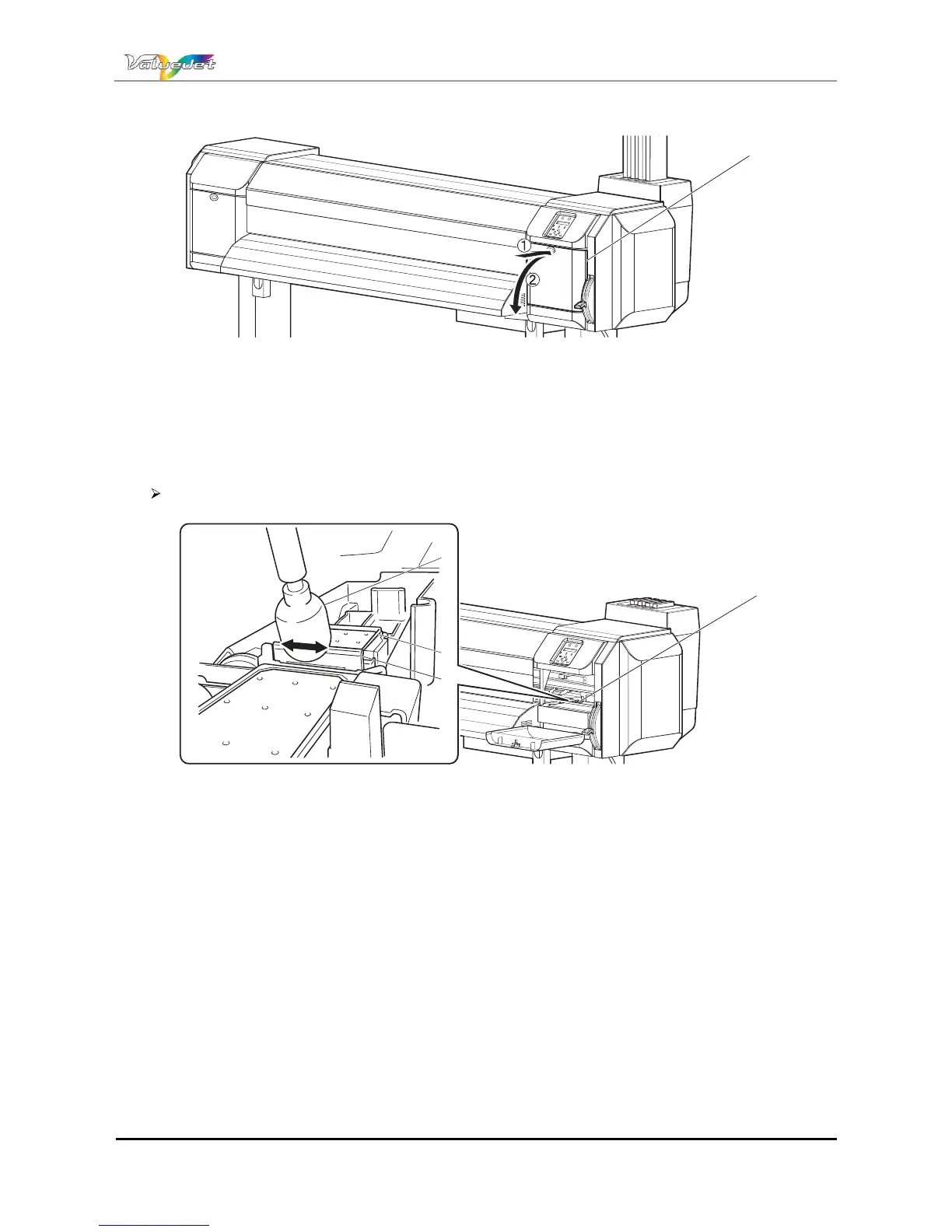

Step 8 : Open the maintenance cover on the right of the printer.
ï
N° Name
1 Maintenance cover
Step 9 : Use the cleaning stick moistened with cleaning liquid to remove the ink and dust on the cleaning
wiper.
Cleaning wiper front side:
Wipe horizontally
ï
î
í
í
N° Name
1 Cleaning wiper
2 Cleaning stick
3 Head cap unit
