Users Guide ValueJet 1614
112 AP-75790  Rev 1.4 -22/02/2011,
Step 16 : Press the [>] key on the operation panel
Adj.1: Confirm is displayed on the operation panel.
The display enters the Adjust Print menu.
± Please refer to: Adjust Print menu.
Step 17 : Press the [ENTER] key on the operation panel
A confirmation pattern for quality adjustment is printed
After the confirmation pattern is printed, Adj.1: Confirm is displayed on the operation panel.

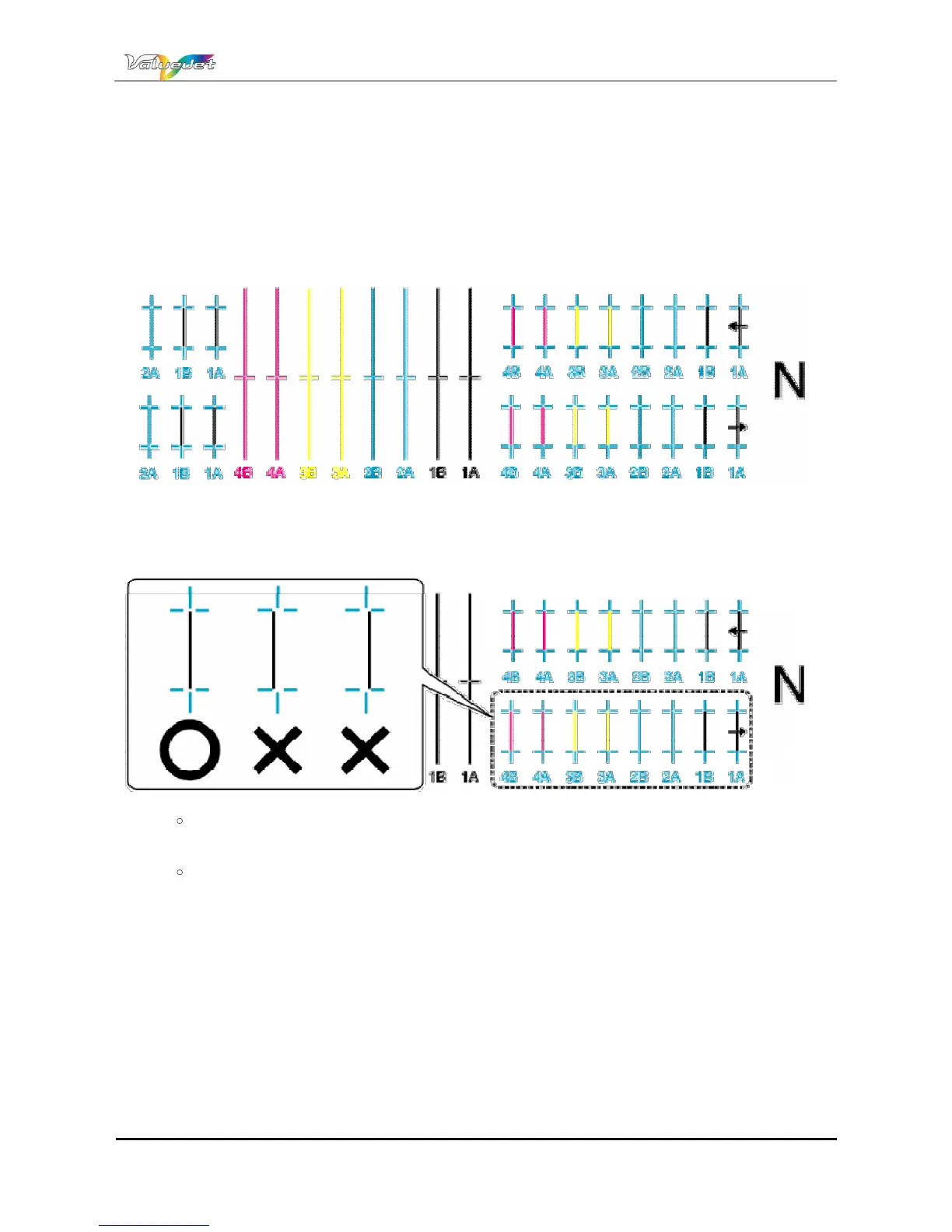

Step 18 : Verify that the confirmation pattern printing result is as follows.
When the printing result is O:
You do not need to perform an alignment.
When the printing result is x:
You need to perform an Alignment.
Step 19 : Register a set value for BI-D normal (Two-way/quality normal mode).
Step 20 : Press the [+] key or the [-] key on the operation panel to select Adj.5: BI-D Normal.
Step 21 : Press the [ENTER] key on the operation panel.
Start BI-D normal pattern printing.
