Users Guide ValueJet 1614
45 AP-75790  Rev 1.4 -22/02/2011,

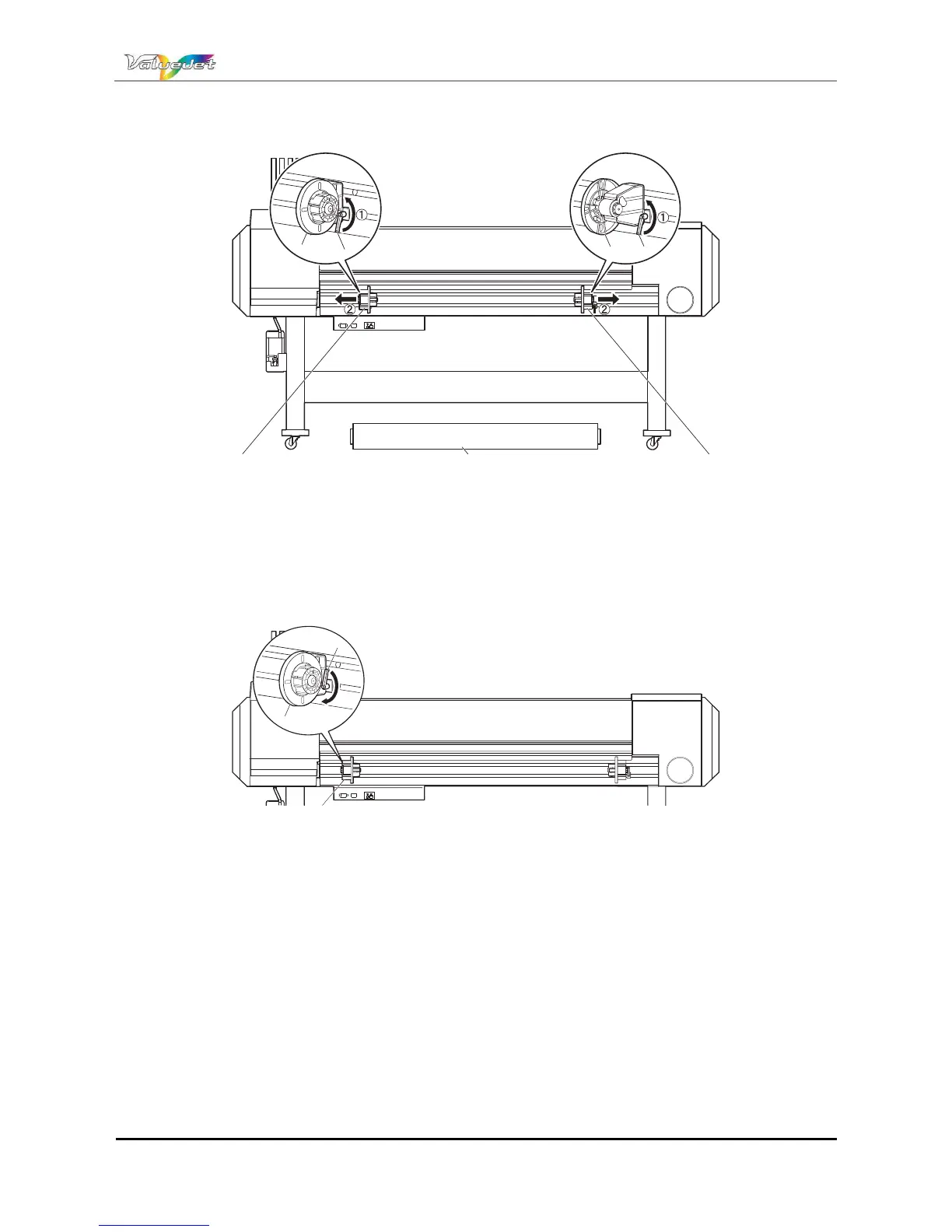

Step 1 : Loosen the fixing levers on the right and left side of the rear. Set the distance between the roll
media holders wider than the roll media width.
ï í
ì
ï
î
î ì
N° Name
1 Roll media holder (left)
2 Roll media holder (Right)
3 Roll media
4 Fixing lever
Step 2 : Tighten the left roll media holder
ï
ï
î
N° Name
1 Roll media holder (left)
2 Fixing lever
