Users Guide ValueJet 1614
46 AP-75790  Rev 1.4 -22/02/2011,

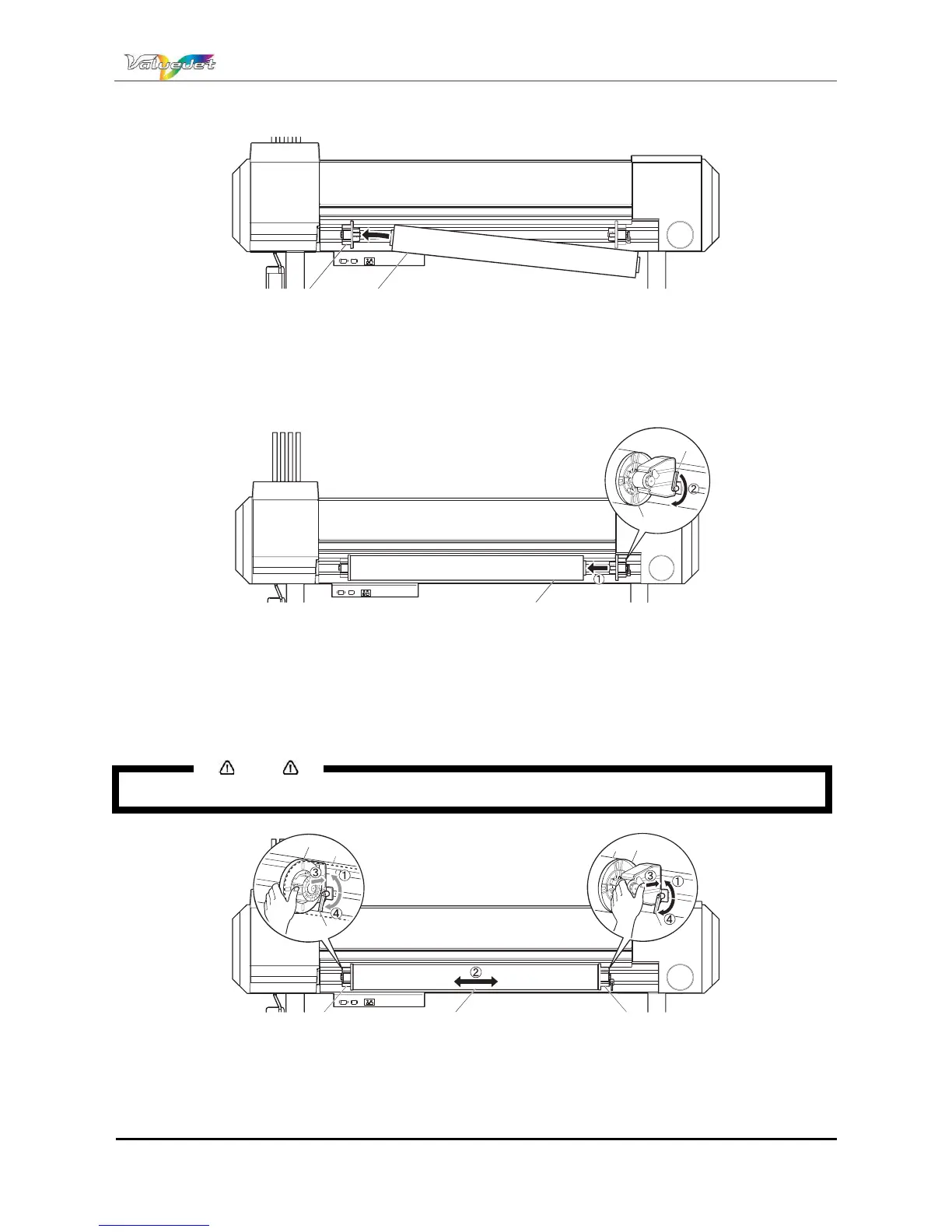

Step 3 : Set the roll media to the roll media holder (left)
ï î
N° Name
1 Roll media holder (left)
2 Roll media
Step 4 : Set the roll media to the roll media holder (right) and fix the fixing lever.
ï
í
î
N° Name
1 Roll media holder (right)
2 Roll media
3 Fixing lever
Step 5 : Loosen the fixing levers of the right and left roll media holders, move the roll media to the centre
and tighten the levers.
Notes
Fix the roll media holders by pressing the holders to the printer.
î
í
íï î
ï
í
ì ì
N° Name
1 Roll media holder (left)
2 Roll media holder (right)
3 Roll media
4 Fixing lever
