MYDATA MY500 JetPrinter Installation
P-030-0014-EN – Service Manual Rev. 0003 2008-06 2 - 3
Shipping gross weight
The shipping gross weight depends on the quantity of delivered options. An
usual gross weight is the machine weight plus roughly 100 kg.
The site
The floor at the machine site must be level.
It is recommended that the area at the machine site is ESD (Electrostatic
Discharge) protected.
Cable for mains, tube for pneumatic air, and cable for computer network are
connected to the machine at the rear (shown in Figure 2-3). The machine is
delivered with two network cables. One cable, 1 m of length, for the
connection of the offline station to a gateway. One cable, 30 m of length, for
the connection of the MY500 JetPrinter.
CAUTION! Always make sure that the way cables and tubes are placed do not
present a hazard. Always use cable ties or such to bundle them together, or
place in cable channels.
The machine noise is maximum 68 dB (A).
Machine dimensions
All dimensions shown in Figure 2-1 are in mm.

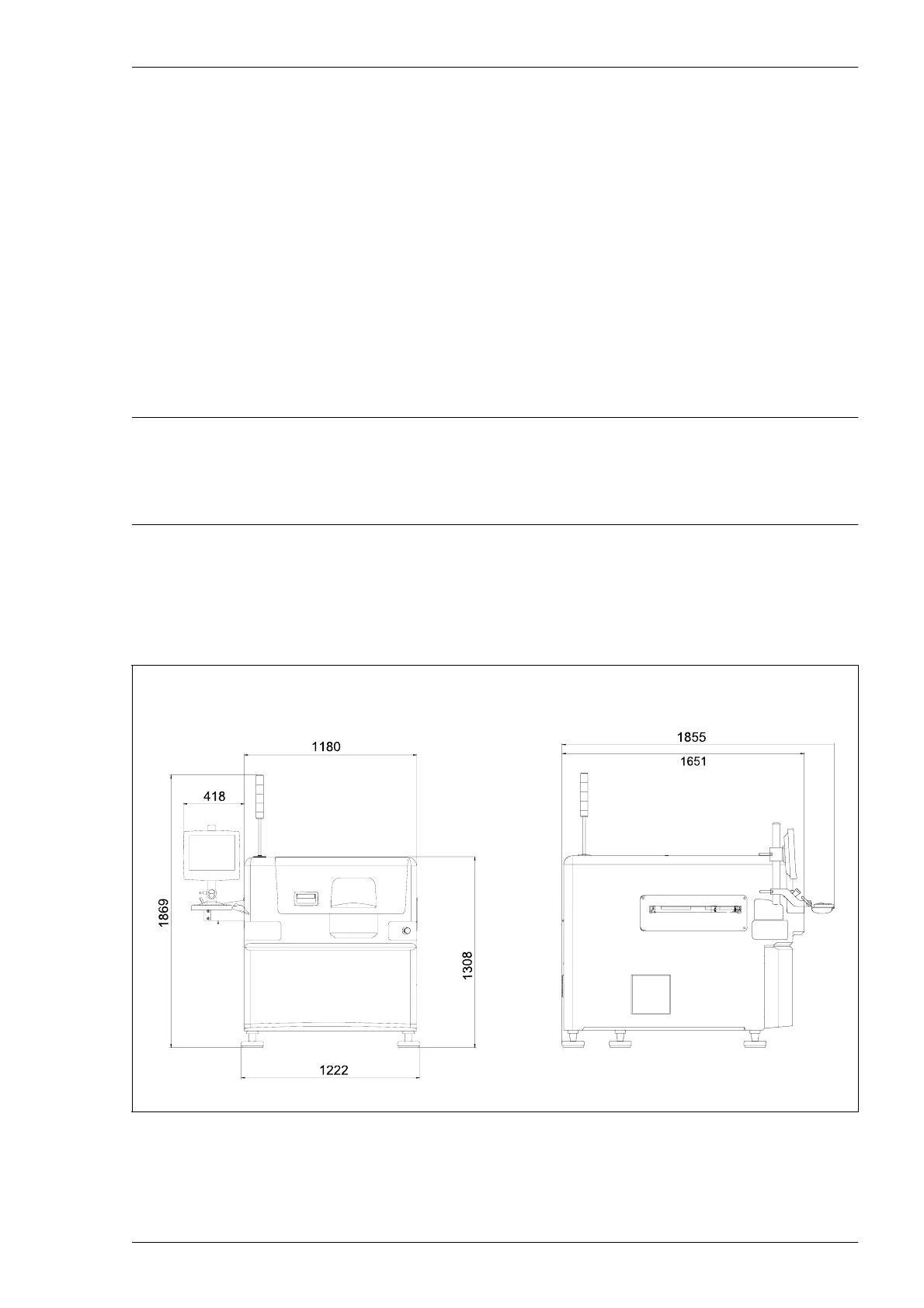

Figure 2-1. Main dimensions.
