The X wagons positioning accuracy is, like the Y beam's, governed by a linear
encoder system. The linear scale for the X wagon is located on the Y beam.
CAUTION! Be careful not to scratch or otherwise damage the surface of the
linear scale. Scratching the surface can alter the machine's precision.
X wagon main parts
On the X wagon plate the following main parts are found:
1. Circuit board hood.
2. Cassette interface.
3. Positioning camera.

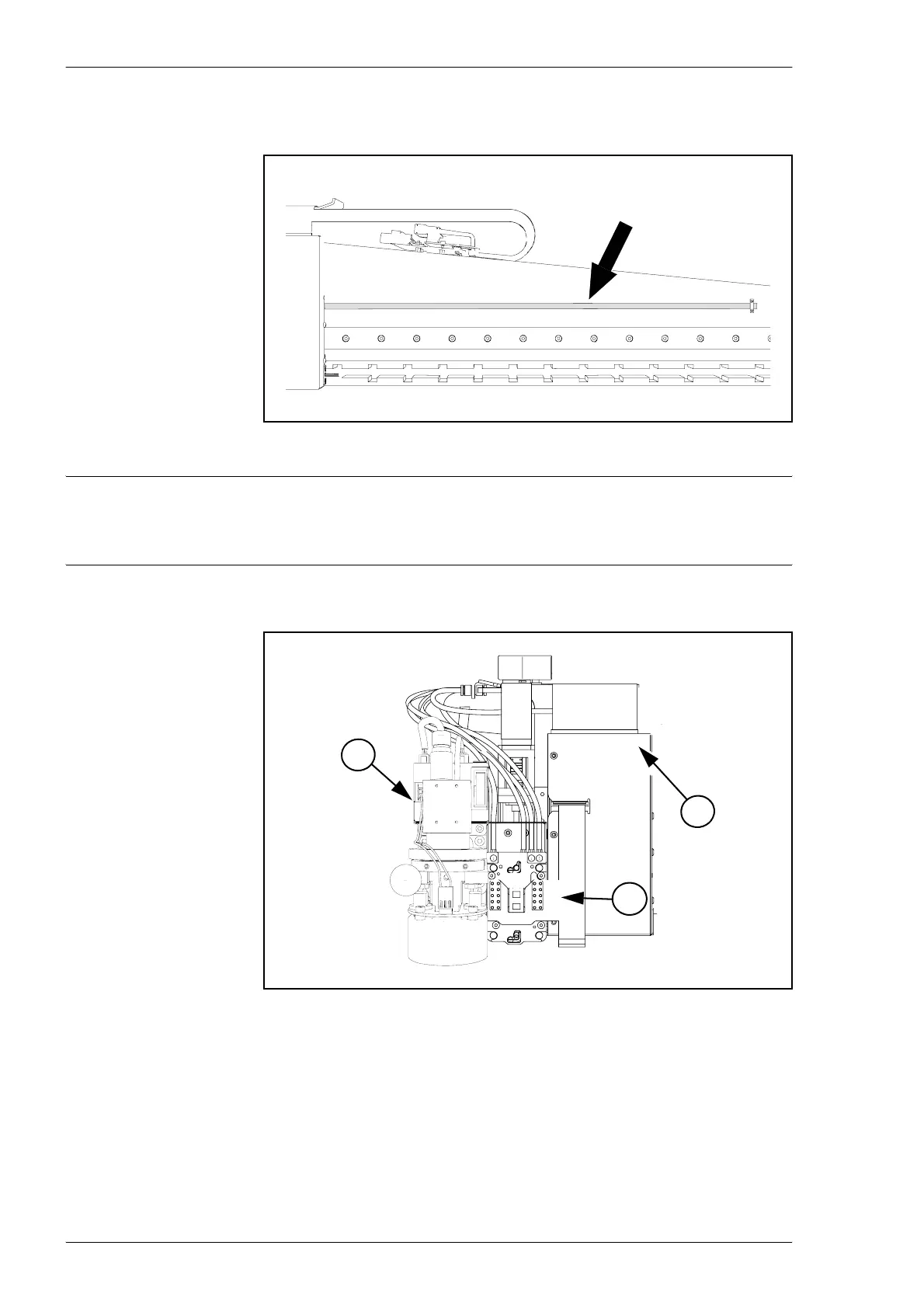

Figure 3-10. X wagon linear scale.
Figure 3-11. X wagon main parts.
3
2
1
