Example 1: Inter-Tenant Connection for Station-to-Station Calling
For the inter-tenant connection between Station A and Station B, the data assignment at Office B is as fol-
lows.
NOTE: The inter-tenant restriction between Trunk B and Station B (CM63 Y=2) is ineffective.
Command Code 1st Data 2nd Data
CM63 Y=1 01 02
01: Tenant No. of Calling Station
(Station A)
02: Tenant No. of Called Station
(Station B)
1: Allow

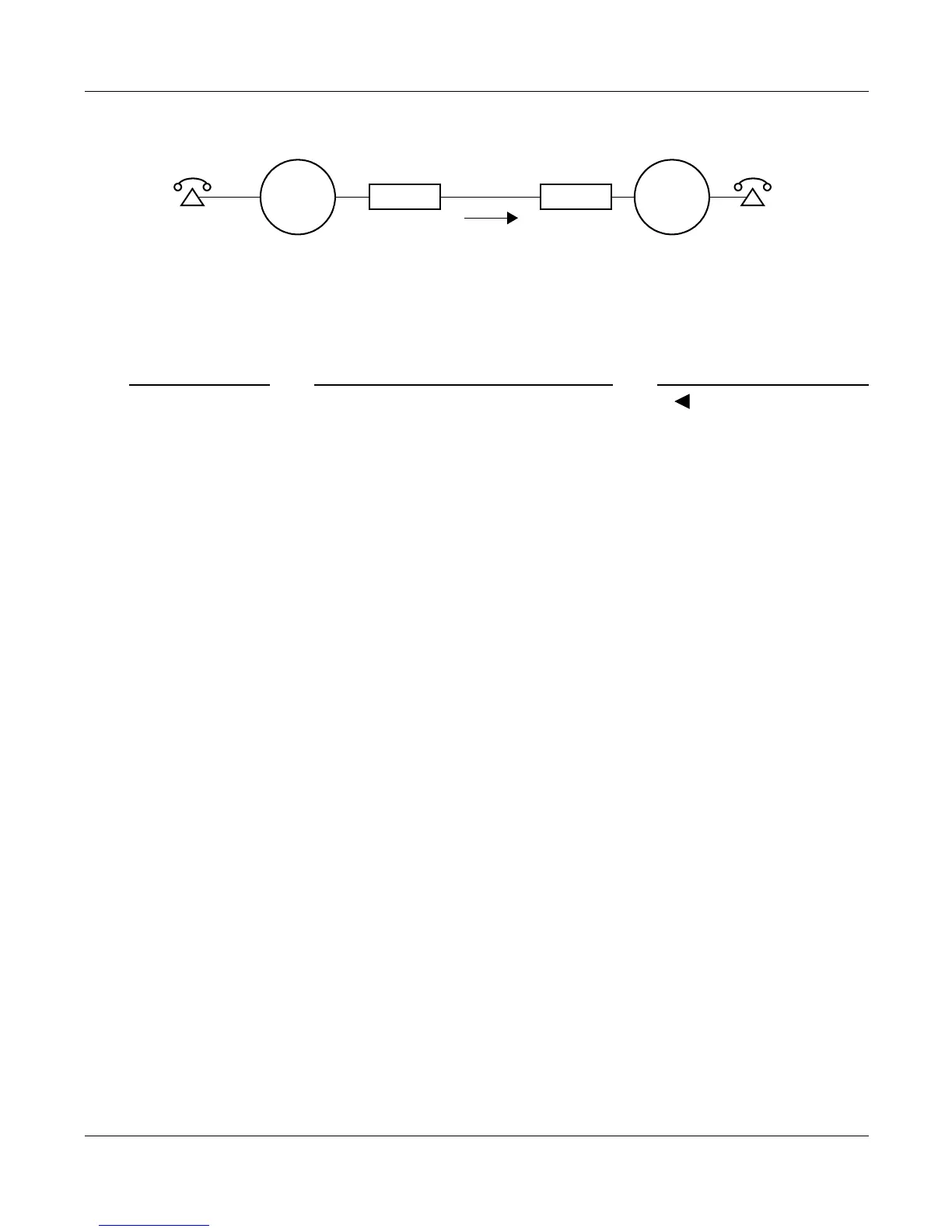

TRUNK A
PBX
NO. 7 CCIS
TRUNK B
STA. B
TENANT NO.
STA. A
A
B
OF STA. B: 02
TENANT NO.
OF STA. A: 01
OFFICE OFFICE
AB
DIGITAL CCIS PROGRAMMING
