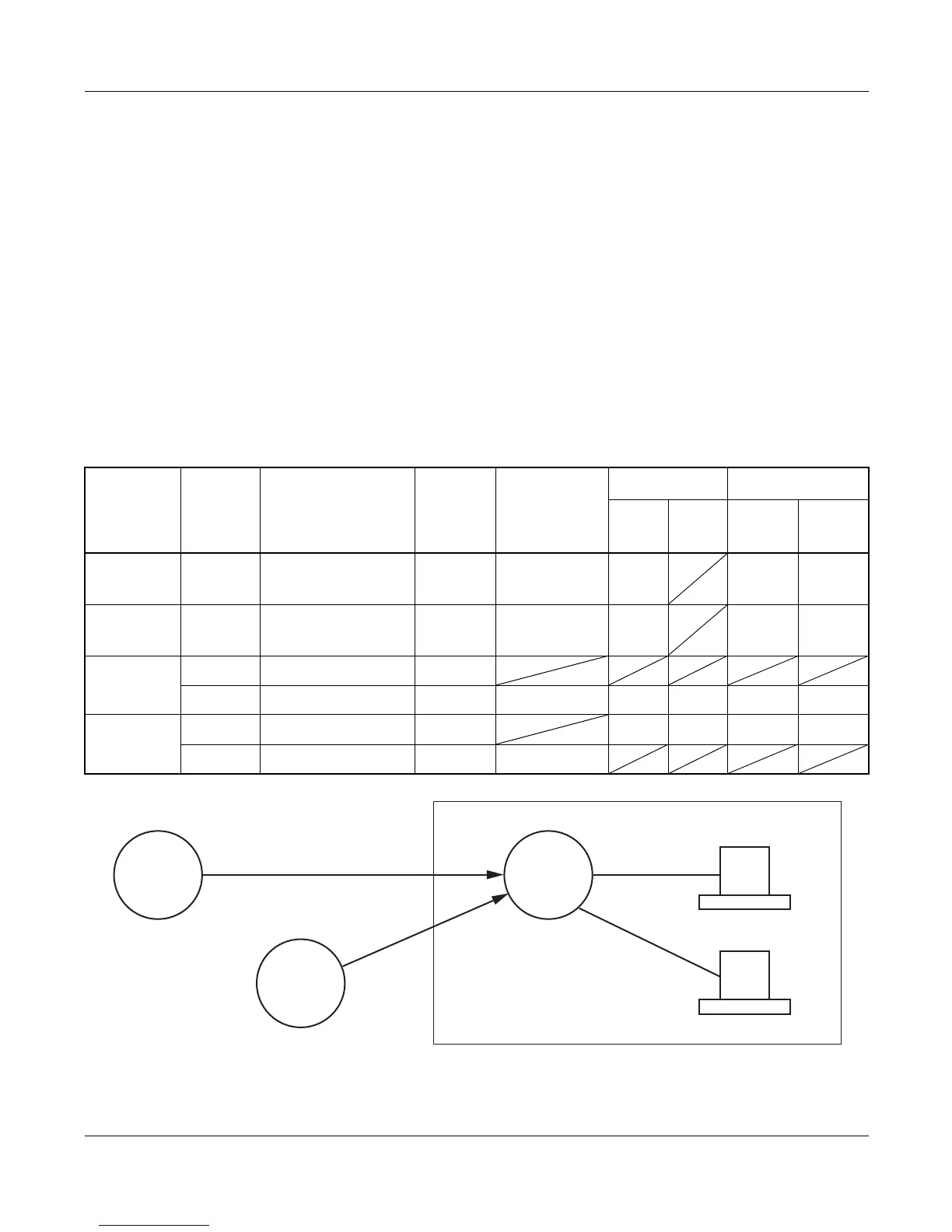

Example of the programming (PN-AP00-B/PN-AP00-D with MRCA program)
Example 1: Data Assignment of SMDR output for Center Office
In a Centralized Billing Office, the following four patterns of SMDR output can be selected.
(1) To SMDR 0 (Port 0): Sending of billing information from both a Center Office and Local Offices.
(2) To SMDR 1 (Port 0): Sending of billing information from both a Center Office and Local Offices.
(3) To SMDR 0 (Port 0): Sending of billing information from Local Offices.
To SMDR 1 (Port 1): Sending of billing information of a Center Office.
(4) To SMDR 0 (Port 0): Sending of billing information of a Center Office.
To SMDR 1 (Port 1): Sending of billing information from Local Offices.
• Data assignment of each pattern for Center Office
PATTERN TO FROM
CMDD01
>239
CMDD01
>100/101
CMDD10 CMDD04
000 100
XX00,XX
06
XX02,
XX07
1SMDR 0
Center Office C and
Local Office A/B
131 10
2SMDR 1
Center Office C and
Local Office A/B
232 01
3
SMDR 0 Local Office A/B 0
SMDR 1 Center Office C 2 3 1 2 0 1
4
SMDR 0 Center Office C 1 1 2 1 0
SMDR 1 Local Office A/B 0 3
Local Office
OFFICE
A
Center Office
OFFICE
C
Local Office
OFFICE
B
SMDR 0
SMDR 1
JULY/01/2006
CENTRALIZED BILLING-CCIS
