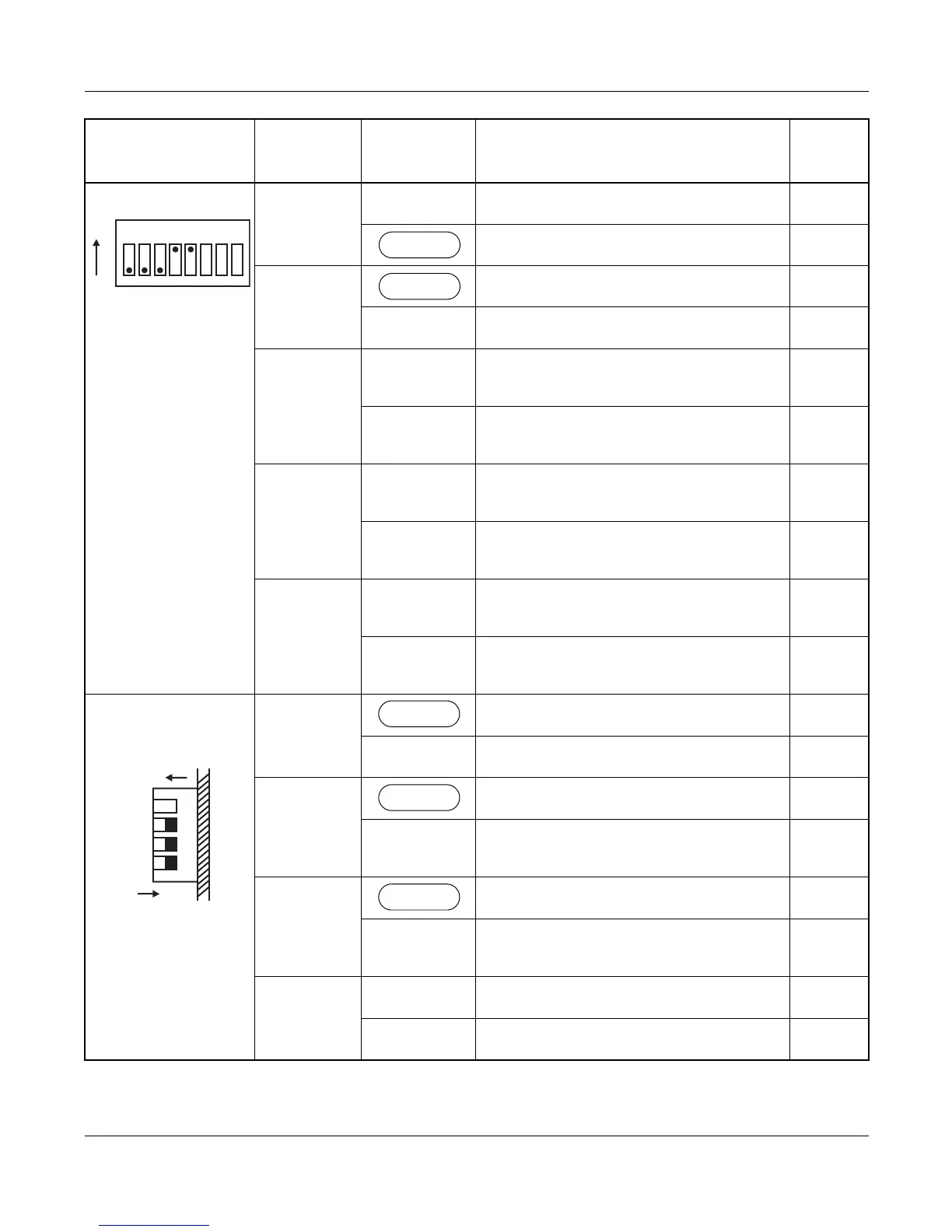

SW0 (Dip SW)
1-3
ON Not used
For normal operation
4, 5
For normal operation
OFF Not used
6
NOTE 3
ON
Sets No. 0 Port forcibly in a state which
DSR signal is always provided.
OFF
Receives DSR signal from the DCE on
No. 0 Port.
7
NOTE 3
ON
Sets No. 1 Port forcibly in a state which
DSR signal is always provided.
OFF
Receives DSR signal from the DCE on
No. 1 Port.
8
NOTE 3
ON
Sets No. 2 Port forcibly in a state which
DSR signal is always provided.
OFF
Receives DSR signal from the DCE on
No. 2 Port.
SW1
(Piano Key SW)
1
For normal operation
OFF Not used
2
For normal operation
OFF
For AP data clearing by CMD100/
CMD101
3
For normal operation
OFF
For AP data clearing by CMD100/
CMD101
4
ON AP No. 4-15
OFF AP No. 20-31
Continued on next page
SWITCH NAME
SWITCH
NUMBER
SETTING
POSITION
FUNCTION CHECK
1
2
3
4
5
6
7
8
ON
OFF
ON
4
3
2
1
OFF
ON
ON
ON
ON
PN-AP00-B (AP00)
