CHAPTER 2 INSTALLATION
ā 71 ā NWA-008853-001 Rev.3.0
97ch2001.fm
STEP2: Connect the LT connector on the PZ-M542/PZ-M557 card to the LTC connector on BWB in
PIM.
NOTE: Two PZ-M542/PZ-M557 cards cannot be mounted on the adjoining LTC connectors. LTC0 and
LTC2, or LTC0 and LTC3, or LTC1 and LTC3 are mountable.

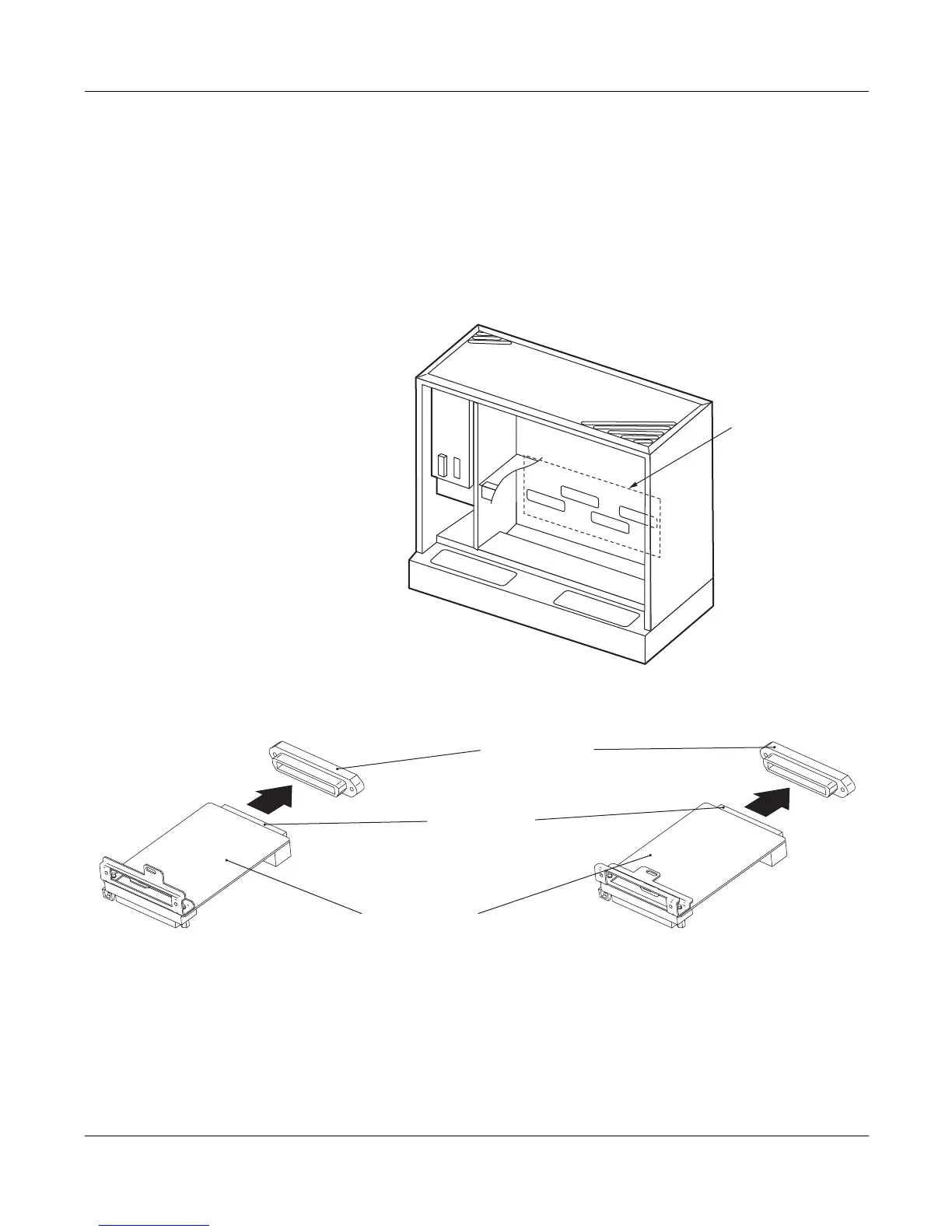

Mounting of PZ-M542/PZ-M557 Card
PIM
LTC CONNECTOR
LTC0
LTC1
LTC2
LTC3
LTC CONNECTOR
When connecting to LTC1 or LTC3 When connecting to LTC0 or LTC2
LT CONNECTOR
PZ-M542/PZ-M557
INSTALLATION PROCEDURE FOR DIGITAL CCIS
To Next Page
