5.1.3 Wall-Mounting the Multiline Telephone

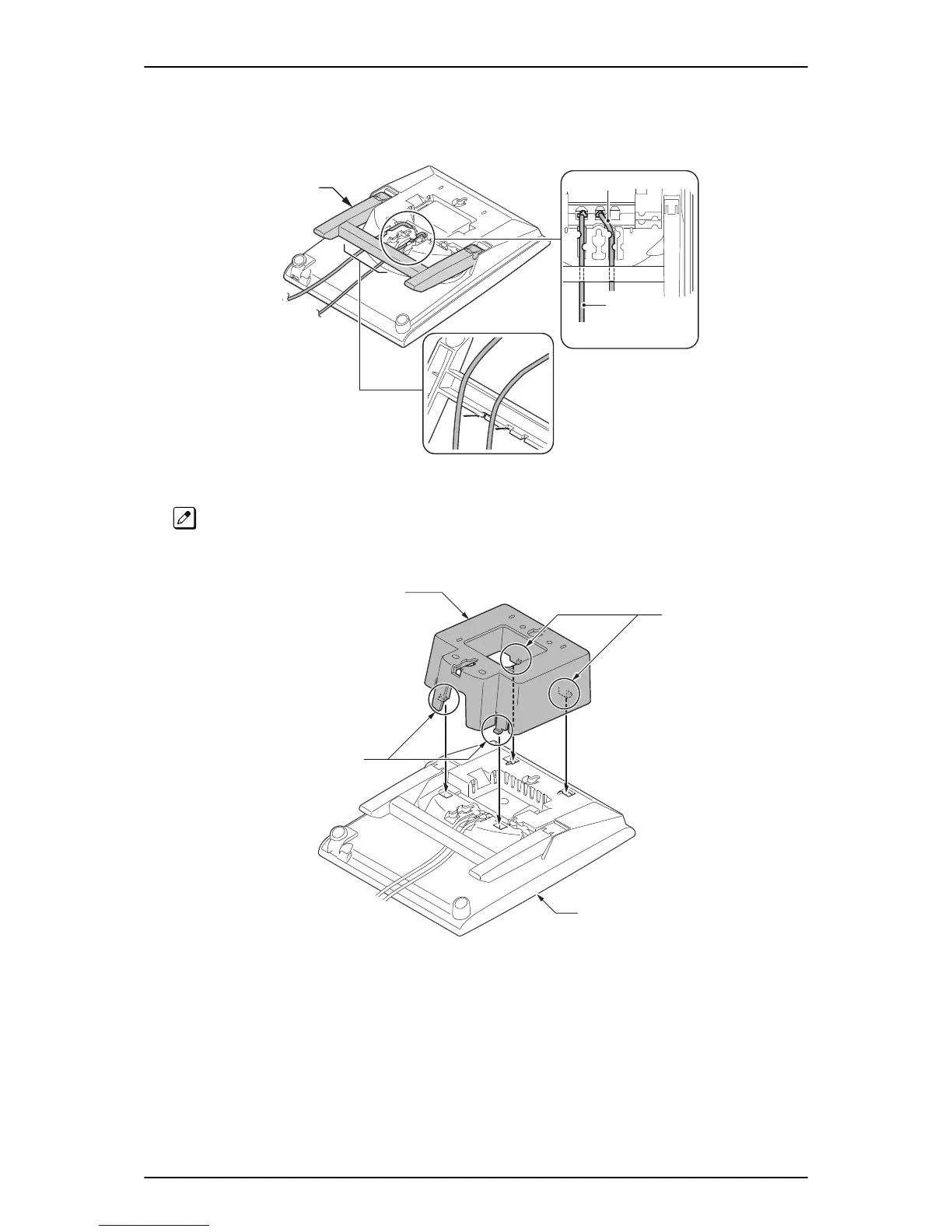

1. Arrange the cables and put down the leg as shown below.
Leg
< Bottom view>
Telephone
line cord
Handset cord
Figure 2-94 Cabling for Wall-Mount
For IP4WW-24TIXH-C only:
When wall-mounting the IP4WW-24TIXH-C, attach the IP4WW-WALL MOUNT UNIT to the bottom
panel as shown.
Claws
IP4WW-24TIXH-C
Claws
IP4WW-WALL
MOUNT UNIT
Figure 2-95 Wall-Mount Unit - 24TIXH-C
