NEC SL1100 - Cabling and Setting IP4 WW-1 PRIU-C1; Figure 2-77 Connector of 1 PRIU-C1; Table 2-13 RJ-61 CO;PF Pin-Outs (J2, J3)

3.4.4.1 Connectors
The following table shows the pin-outs for the RJ-61 cable connector for CO (J2) and PF (J3)
connections.

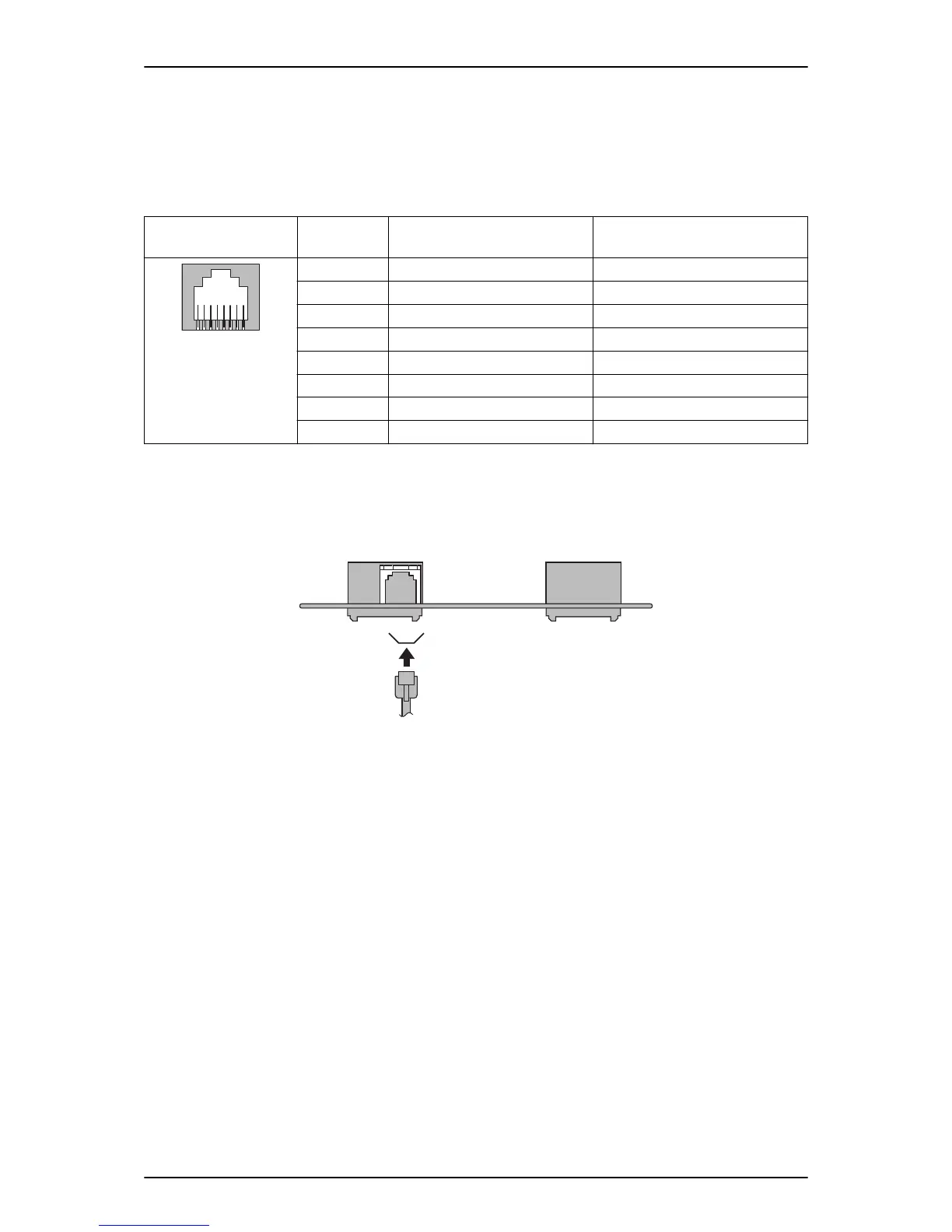

Table 2-13 RJ-61 CO/PF Pin-Outs (J2, J3)
Pin No. CO1-4 (J2): CO Port Connector
(RJ-61)
PF1 (J3): PF Tel Port Connector
(RJ-61)
8 765 4321
1 T4 (Tip for port 4) -
2 T3 (Tip for port 3) -
3 T2 (Tip for port 2) -
4 R1 (Ring for port 1) R1 (Ring for port 1)
5 T1 (Tip for port 1) T1 (Tip for port 1)
6 R2 (Ring for port 2) -
7 R3 (Ring for port 3) -
8 R4 (Ring for port 4) -
3.4.5 Cabling and Setting IP4WW-1PRIU-C1
This IP4WW-1PRIU-C1 PCB provides one RJ-45 PRI connection.
PRI 1
J5
PRI/T1 Line
Figure 2-77 Connector of 1PRIU-C1
3.4.5.1 Connector
Following table shows the pin-outs for the RJ-45 cable connector for S-Bus and T-Bus RJ-45
connections.
SL1100 ISSUE 5.0
2-54 Installation
