NEC SL1100 - Figure 2-2 Dimension of the Main and Expansion KSU; Wall Installation of KSU

290 mm
(11.417″)
115 mm
(4.528″)
375 mm (14.764″)

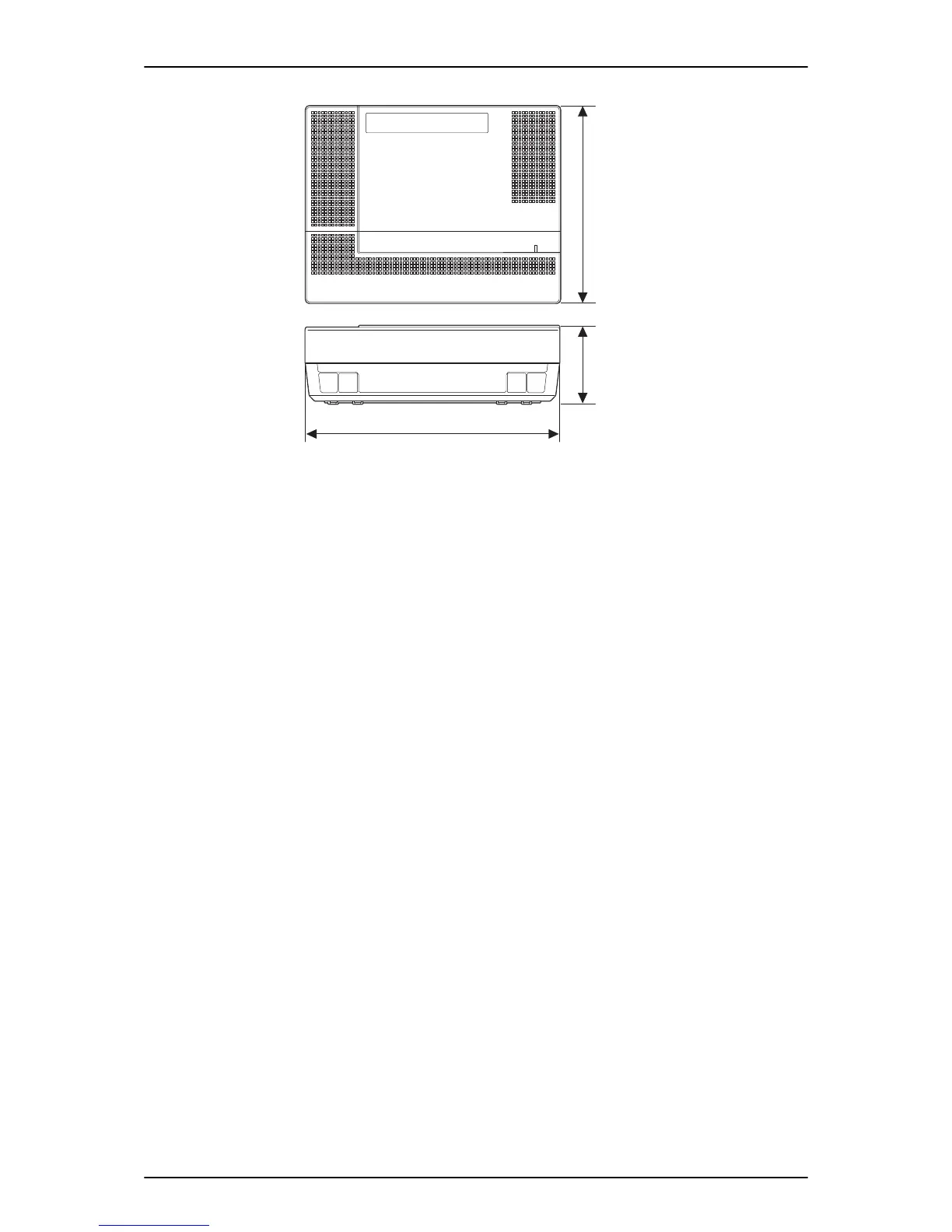

Figure 2-2 Dimension of the Main and Expansion KSU
1.3.2 Wall Installation of KSU
The Main KSU (1228M-B) and Expansion KSU(s) (1228ME-B) be mounted on the wall. Before
installing, ensure the appropriate spacing exists as shown below. In case of horizontal arrangement,
refer to Mounting one KSU on the Battery Box on page 2-33 for mounting on the IP4WW-Battery
Box.
