NEC SL1100 - Configurations; Figure 2-152 Single Repeater Attached to Base

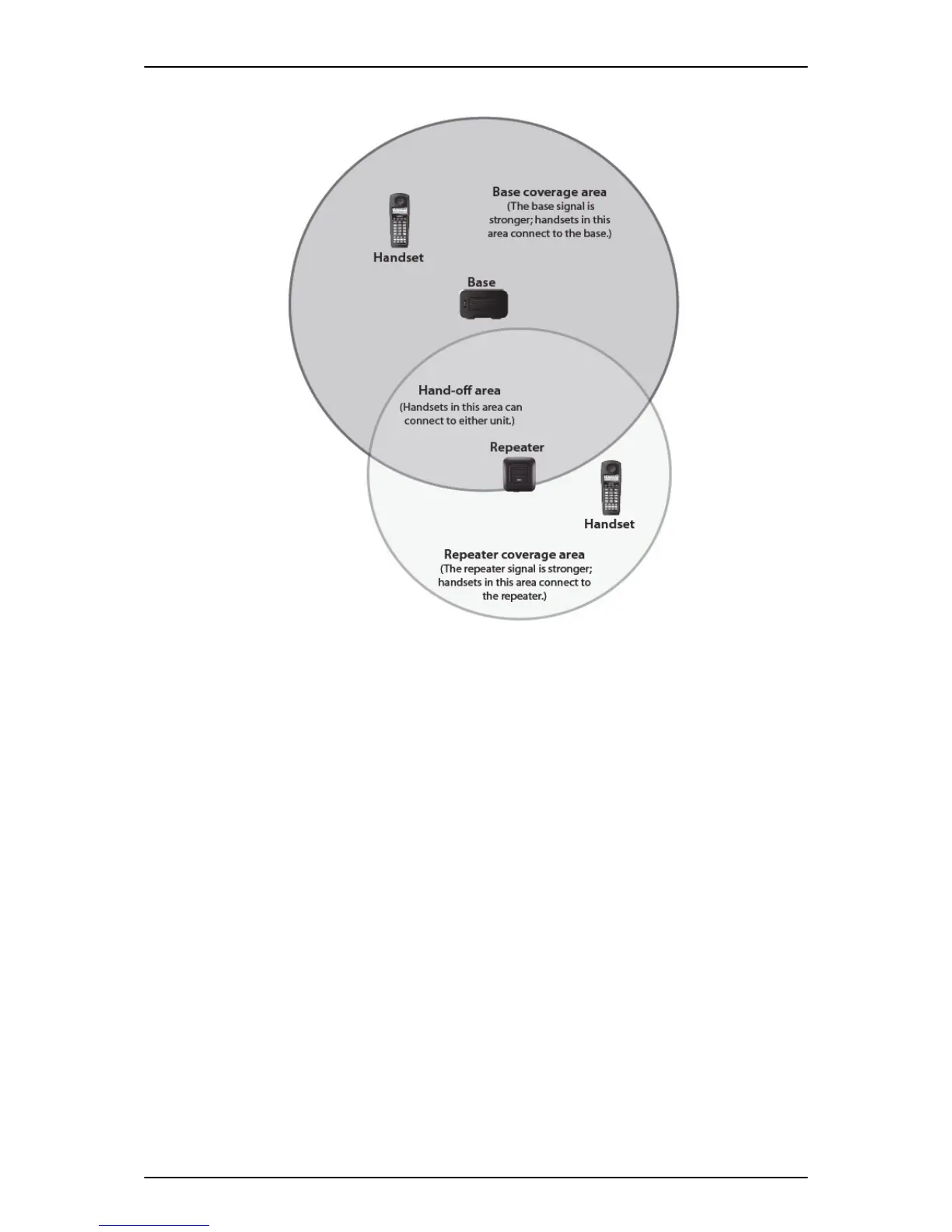

Figure 2-152 Single Repeater Attached to Base
6.3.1 Configurations
Each base supports up to six repeaters, so you can extend coverage in all directions, including
through floors and ceilings.
