NEC SL1100 - Figure 2-32 Connecting the Battery Cables; Figure 2-33 Installation of Battery Tray Cover

8. Connect the battery cables.
Terminal
(black)
Terminal
(black)
< Front View >
Terminal
(red)
Terminal
(red)
Battery Connection
Cable (blue)
Battery Connection Cable (black)
Battery Connection
Cable (red)
Two batteries

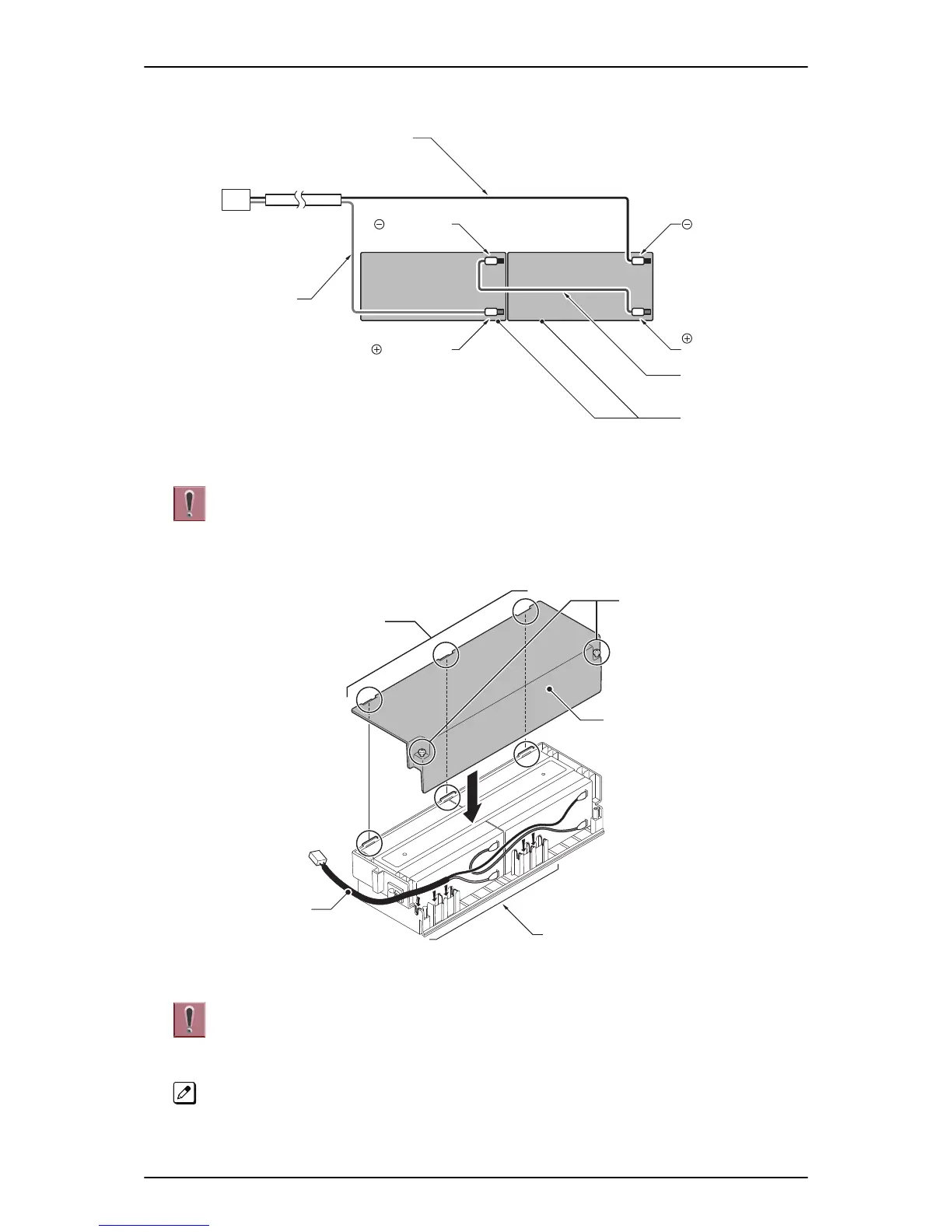

Figure 2-32 Connecting the Battery Cables
Incorrect installation of batteries may damage the Fuse Unit or cause
possible fire.
9. Insert Battery Connection Cable into the Cable guides as shown in the next diagram.
10. Install the Battery tray cover aligning the three tabs and tightening the two screws.
Two screws
(with stopper)
Three tabs
Battery tray cover
Battery
Connection Cable
Cable guides
Figure 2-33 Installation of Battery Tray Cover
• Do not pull the Battery connection cable strongly.
• Be careful not to catch the Battery Connection Cable when installing the
Battery tray cover.
Write down the year and month of the next battery replacement in the label on Front cover.
ISSUE 5.0 SL1100
Hardware Manual 2-25
